Information on A/S T ool & Materials 1 1-49 11.1.12. C h ange Rack I/F Board Part

High Speed Multi Tray Feeder STF-100N User’s Guide

11-48

No. Part No. Name Q'ty Tape Remark

1 J91671024A Elevator Home Sensor Cable Ass`y-STF100N 1

2 J91671025A Elevator-Limit Sensor Cable Ass`y-STF100N 1

3 J91671026A Feeder Home Sensor Cable Ass`y-STF100N 1

4 J91671032A Pallet Backward Sensor Cable Ass`y-STF100N 1

5 J91671030A Component Over1 Sensor Cable Ass`y-STF100N 1

6 J91671031A Component Over2 Sensor Cable Ass`y-STF100N 1

7 J91671029A Feeder Pallet Sensor Cable Ass`y-STF100N 1

8 J91671027A Hook Safety Sensor Cable Ass`y-STF100N 1

9 J91671028A Magazine Clamp Sensor Cable Ass`y-STF100N 1

Information on A/S Tool & Materials

11-49

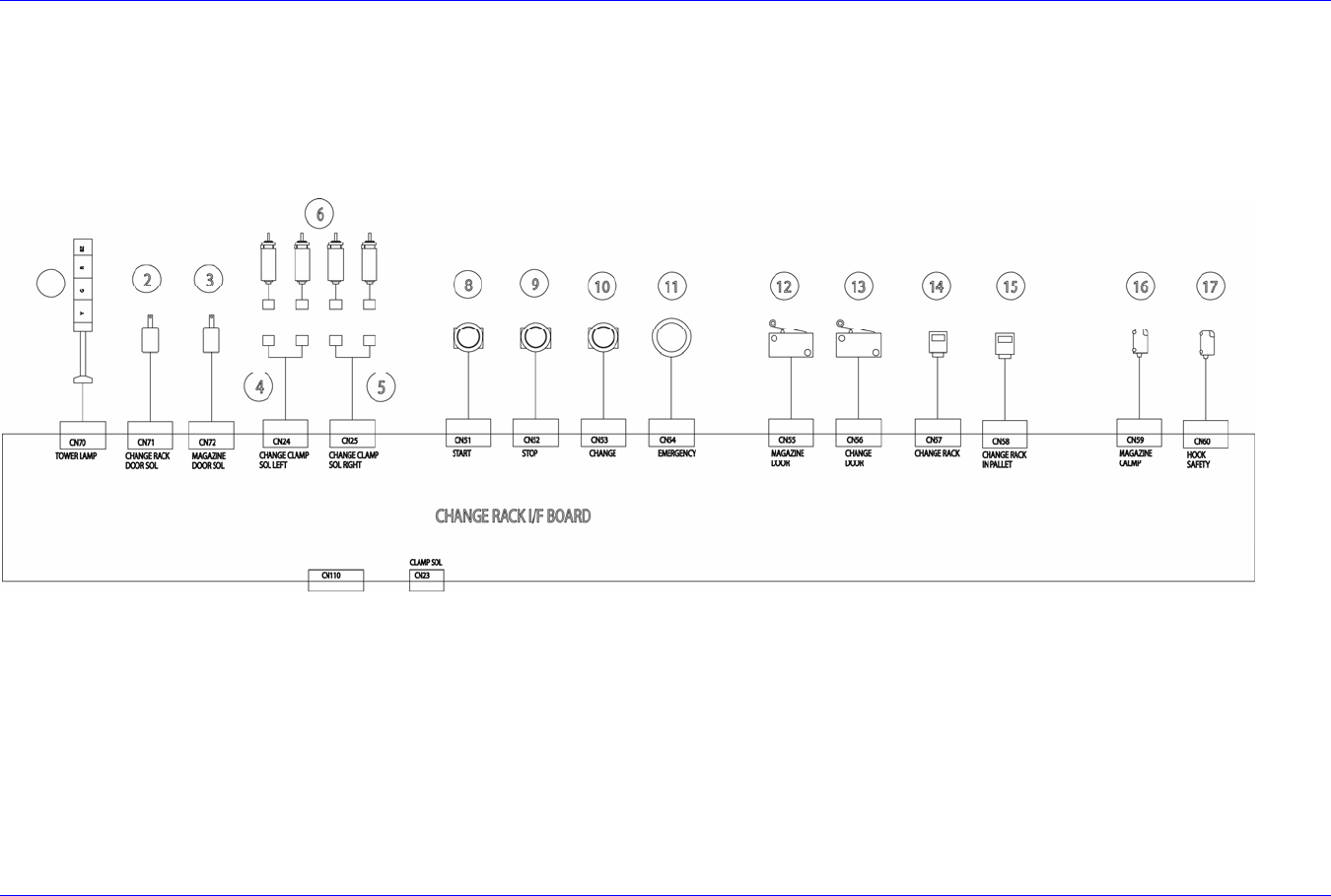

11.1.12. Change Rack I/F Board Part

High Speed Multi Tray Feeder STF-100N User’s Guide

11-50

No. Part No. Name Q'ty Tape Remark

1 J91671033A Tower Lamp Cable Ass`y-STF100N 1

2 J91671034A Top Door Solenoid Cable Ass`y-STF100N 1

3 J91671035A Front Door Solenoid Cable Ass`y-STF100N 1

4 J91671052A Change Rack Clamp Sol Left Cable Ass`y-STF100N 1

5 J91671053A Change Rack Clamp Sol Right Cable Ass`y-STF100N 1

6 J66191003A Tubular Solenoid-STF100N 4 M130A-33

7 J91671038A Start Switch Cable Ass`y-STF100N 1

8 J91671039A Stop Switch Cable Ass`y-STF100N 1

9 J91671040A Change Switch Cable Ass`y-STF100N 1

10 J91671041A Emergency Switch Ass`y-STF100N 1

11 J91671042A Magazine Door Sensor Cable Ass`y-STF100N 1

12 J91671043A Top Door Sensor Cable Ass`y-STF100N 1

13 J91671044A Change Rack Sensor Cable Ass`y-STF100N 1

14 J91671045A Change Rack In Pallet Sensor Cable Ass`y-STF100N 1

15 J91671028A Magazine Clamp Sensor Cable Ass`y-STF100N 1

16 J91671027A Hook Safety Sensor Cable Ass`y-STF100N 1
