Notes: Part 4 Chapter 1 Leveling the Machine Edition 1.0 4-1-2 NP-134E/134ME Mechanical
1. Leveling the Machine
Objective
Set leveling sheets in the positions shown below, and adjust the machine until it is level.
Ensure leveling sheets which conform to the board conveyance height are used.
Note: If the height of panel conveyance on the NP-134ME is 930 mm or more he height and
shape of the four leveling sheets circled in the figure below will differ from the other 14
locations. The heights at this time are shown in parentheses in the table above.
Procedure

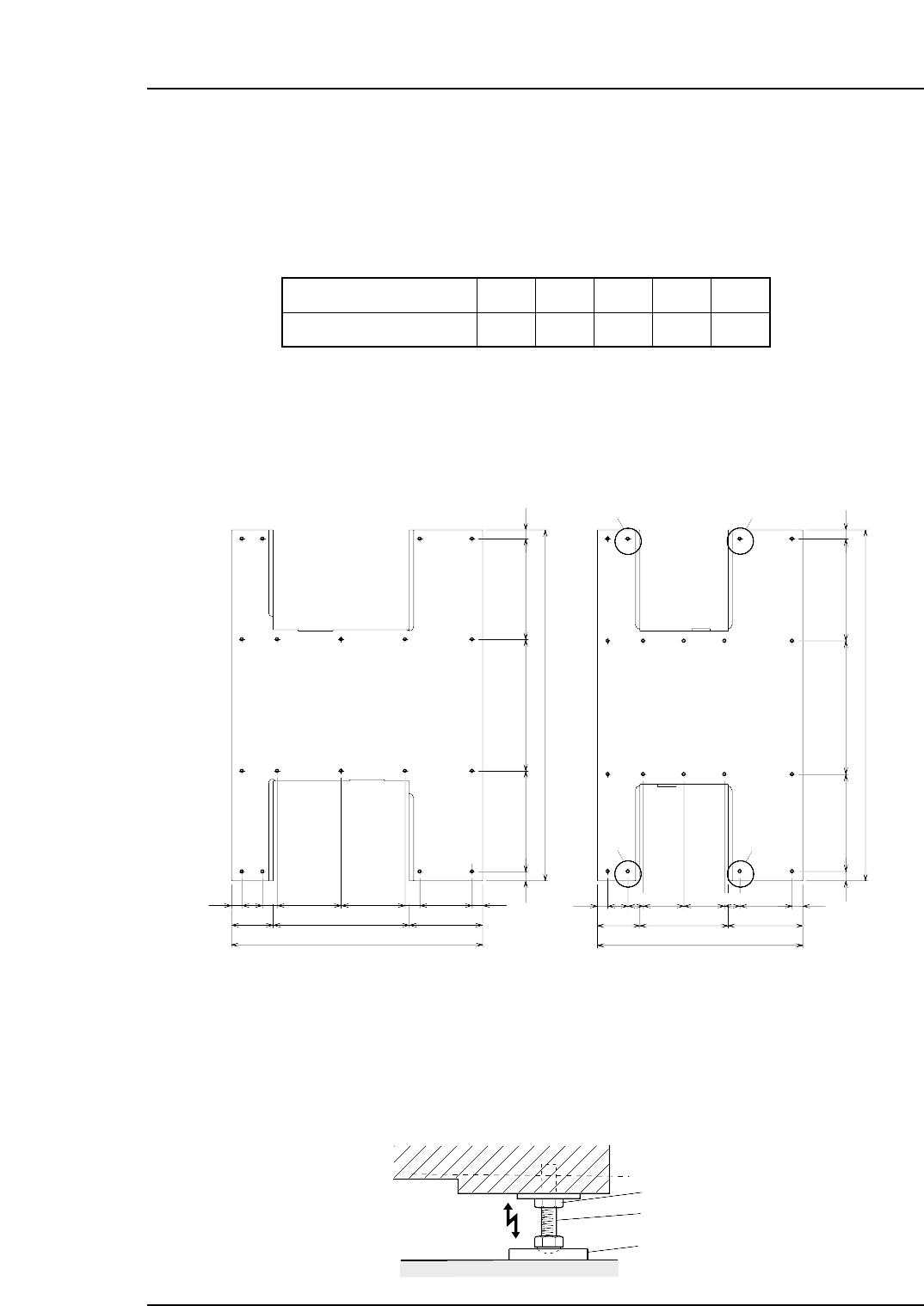

1. Position the leveling sheets according to the positions indicated below.
2. Position a pair of spirit levels in the base of the machine.
(Vertical and horizontal directions)
3. Adjust the height of each leveling bolt so that the machine is level and the
conveyance height is correct.
4. When you are satisfied that the machine is level, tighten the lock nuts to secure the
leveling position.
NP1MS050
Lock nut
Leveling bolt
Leveling sheet
265
2320
6066587066560
1340
277 576 487
6934126513169
1660
900 485275
3469742342397136
69
69
2320
66587066560 60
100 100
<NP-134E> <NP-134ME>
NP1MS058a
Side 2 Side 2
Side 1
(mm)
Side 1
∗
∗
∗
∗
*
:This symbol is used to indicate leveling sheets that are smaller and shorter then those used at other locations.
Table01a
Board cpmveyance height
Leveling sheet height
900
16
units : mm
910
30
930
40(45)
950
60(60)
965
75(80)
Part 4 Chapter 1 Leveling the Machine
Edition 1.0 4-1-1 NP-134E/134ME Mechanical
Notes:
Part 4 Chapter 1 Leveling the Machine
Edition 1.0 4-1-2 NP-134E/134ME Mechanical
2. Connecting the Air
Objective
Connect the air hose to the machine and adjust the regulator so that sufficient air
pressure is supplied to the machine.
Procedure
1. Connect the drain hoses to the filter regulator.
Note: The drain hoses should be ø 4 ~ 5 (inside) and ø 10 (outside).
2. Connect the hose to the air inlet.
3. Pull up on the regulator knob to release the lock.
4. Adjust the valve handle until the pressure level indicated at the regulator shows
0.5 MPa (5 kgf/cm
2
).
5. Push the regulator knob down to lock it.
Note: The hose is not supplied by Fuji.
NP1MS051
400SH ( for 1/2" hose) socket
Drain hoses
Hose
400PM plug
Handle
Part 4 Chapter 2 Connecting the Air
Edition 1.0 4-2-1 NP-134E/134ME Mechanical
