2.6 Nozzle Station Lubrication 1. Arrow marks in the illustrations indicate lubrication points. 2. Numbers shown in parentheses correspond to items on the checklist provided at the end of this chapter. NP1ML063 (31) (31)…

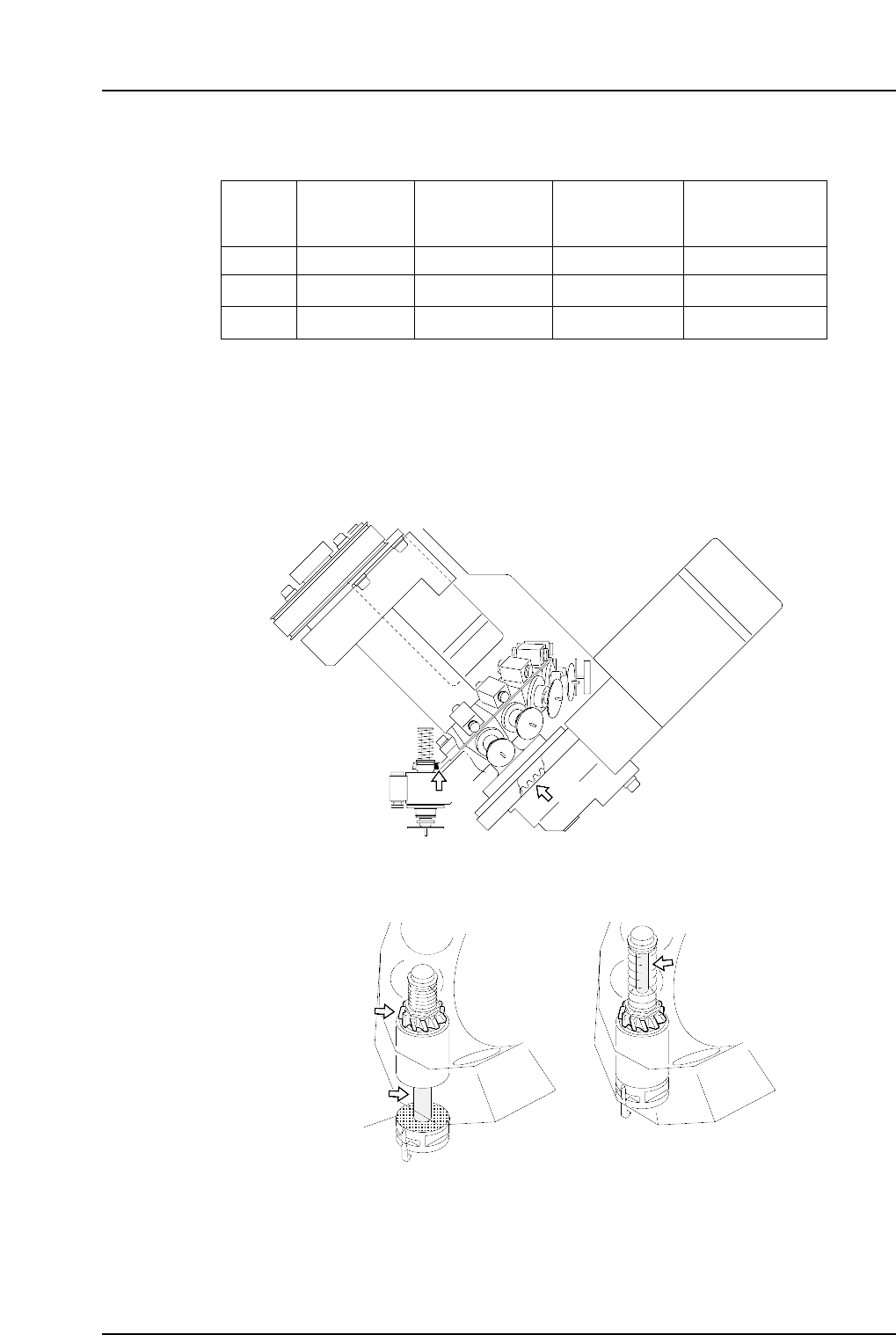

2.5 Head Index Lubrication
1. Arrow marks in the illustrations indicate lubrication points.
2. Numbers shown in parentheses correspond to items on the checklist provided at
the end of this chapter.
NP1ML068
(29)
(30)
(30)
Remove oil from
this surface.
Apply oil through
spring apertures.
NP1ML062
(29)
(28)
Lubrication
Points
Lubrication
Schedule
Daphne Eponex
No. 2
Index gear
✔
Weekly
Table-004✔ : Lubricate
Theta gear
Nozzle shaft
28
29
30
✔
✔
Monthly
Monthly
EVERS
No.
N/A
N/A
N/A
N/A : Do not lubricate
Part 3 Chapter 2 Lubrication
Edition 1.1 3-2-8 NP-134E/134ME Mechanical

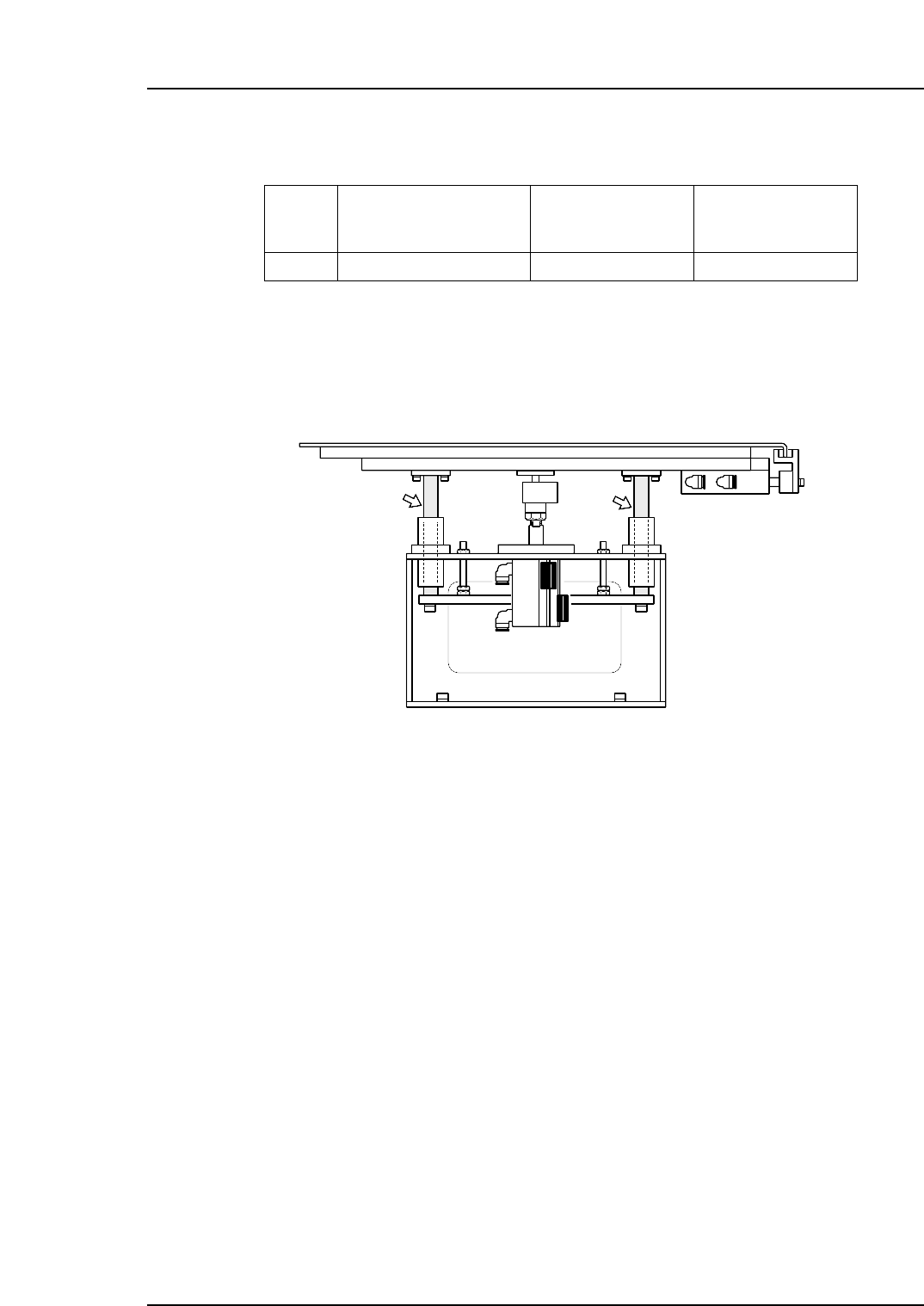

2.6 Nozzle Station Lubrication
1. Arrow marks in the illustrations indicate lubrication points.
2. Numbers shown in parentheses correspond to items on the checklist provided at
the end of this chapter.
NP1ML063
(31)
(31)
Lubrication
Points
Lubrication
Schedule
Daphne Eponex
No. 2
Shaft ✔ Monthly
Table-005
✔ : Lubricate
No.
31
Part 3 Chapter 2 Lubrication
Edition 1.1 3-2-9 NP-134E/134ME Mechanical

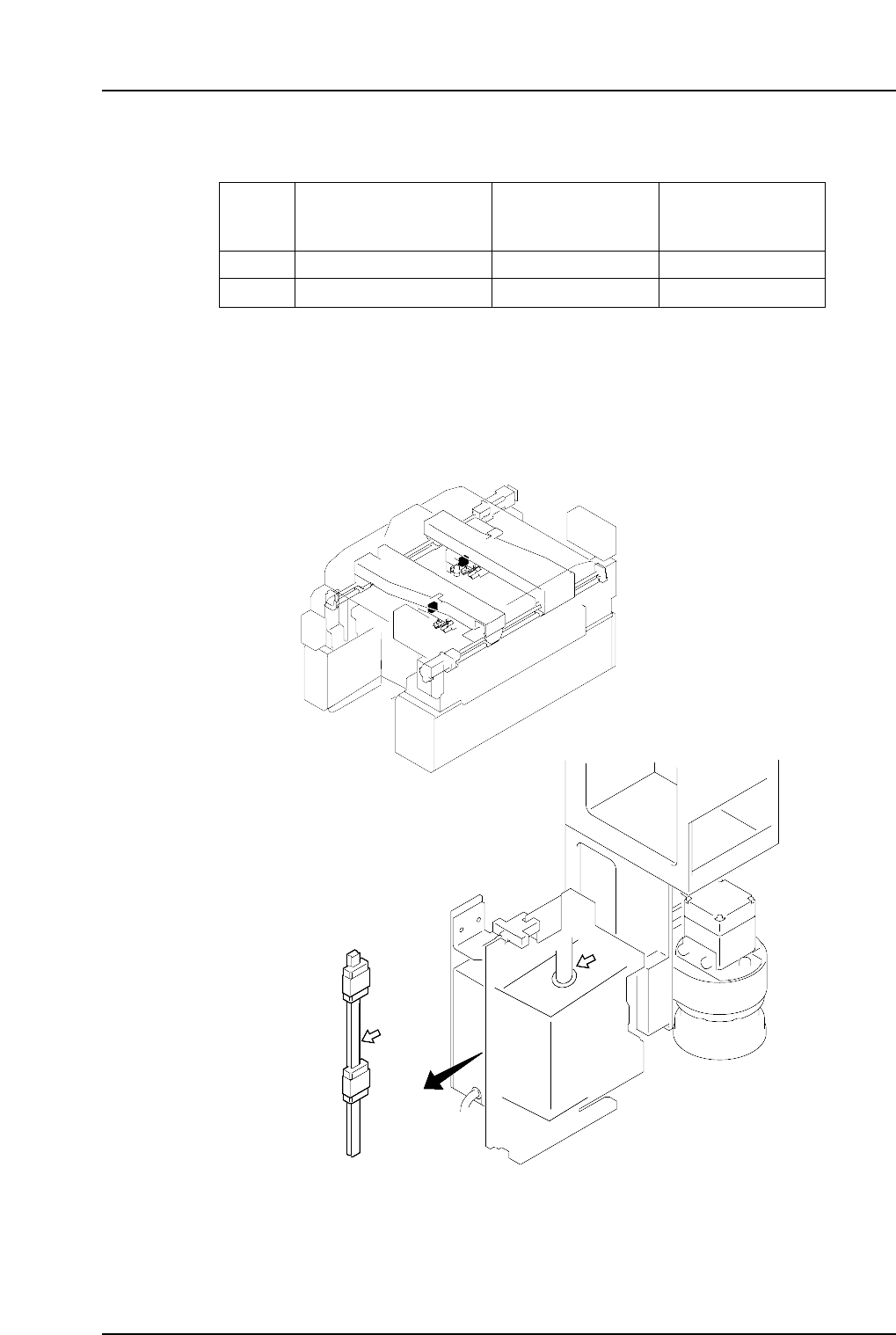

2.7 Z-axis Lubrication
1. Arrow marks in the illustrations indicate lubrication points.
2. Numbers shown in parentheses correspond to items on the checklist provided at
the end of this chapter.
NP1ML064
(32)
(33)
Lubrication
Points
Lubrication
Schedule
Daphne Eponex
No. 2
LM rail
Linear motor shaft
✔
✔
Monthly
Every 2 weeks
Table-006
✔ : Lubricate
No.
32
33
Part 3 Chapter 2 Lubrication
Edition 1.1 3-2-10 NP-134E/134ME Mechanical
