KHJ-MCH-1003 1 4 MOT OR / ELECTRIC SS MUL TI 20 2 30 27 4 22 35 12 10 5 6 11 14 3 8 32 31 28 34 33 29 24 9 16 25 13 15 26 17 21 24 7 19 23 22 18 1 30 24 No. Part No. Part Name Q'ty Remarks 1 KHJ-MCH14-00 SWITCH,BRAC…
KHJ-MCH-0910
1
3

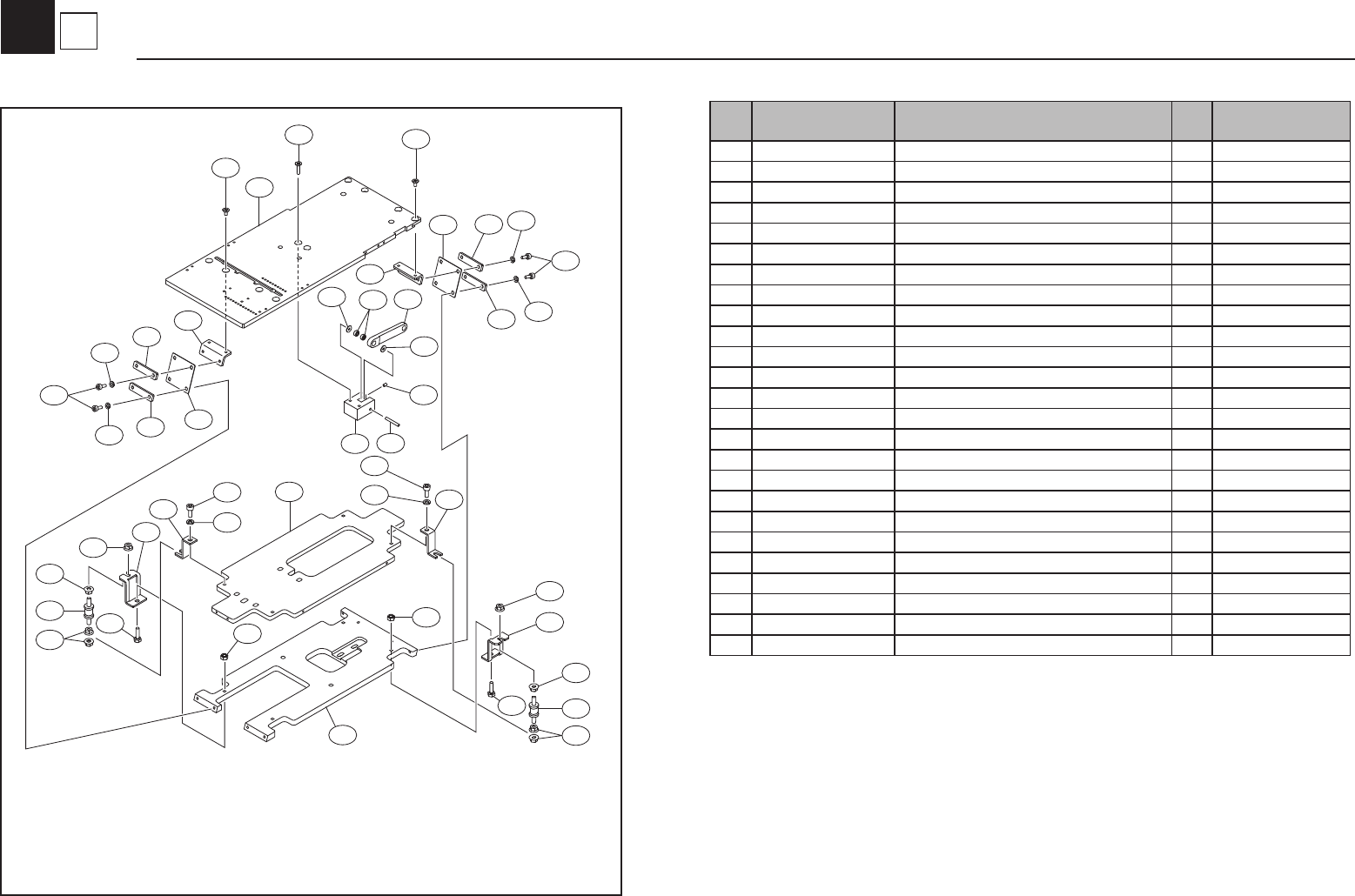

VIBRATION PLATE
SS MULTI
24
25
24
13
14
16
8
22
10
22
23
21
21
22
12
22
23
22
11
10
18
17
19
19
4
4
3
5
7
20
1
2
12
22
9
3
4
19
17
6
13
15
4
19
18
20
11
No. Part No. Part Name Q'ty Remarks
1
KHJ-MCH02-00 BASE,PLATE
1
2 KHJ-MCH03-00
UNDER PLATE
1
3 KHJ-MCH04-00 FLAT SPRING 4
4 KHJ-MCH06-00 PLATE HOLDER 8
5 KHJ-MCH07-00 FRONT ANGLE 2
6 KHJ-MCH08-00 REAR ANGLE 2
7 KHJ-MCH09-00 UPPER PLATE 1
8 KHJ-MCH16-00 PIVOT,STAY 1
9 KHJ-MCH17-00 CONNECTION ROD 1
10 KHJ-MCH23-00 RUBBER DAMPER GUIDE 4
11 KHJ-MCH24-00 RUBBER DAMPER GUIDE 4
12 KHJ-MCHA3-00 ANTI VIBRATION RUBBER 4
13 KHJ-MCHA5-00 THRUST WASHER 2
14 92A08-03305 SCREW,SET 1
15 90933-02J683 BEARING 2
16 90990-19J023 NEEDLE PIN 1
17 91312-04010 BOLT HEX.SOCKET HEAD 8
18 91312-05012 BOLT HEX.SOCKET HEAD 6
19 92902-04100 WASHER,SPRING 16
20 92902-05100 WASHER SPRING 4
21 95602-05100 NUT U 2
22 95702-05500 NUT,FLANGE 16
23 97002-05016 BOLT HEXAGON 2
24 98702-04008 SCREW,FLAT HEAD (+) 8
25 98702-04016 SCREW FLAT HEAD 2
KHJ-MCH-1003
1
4

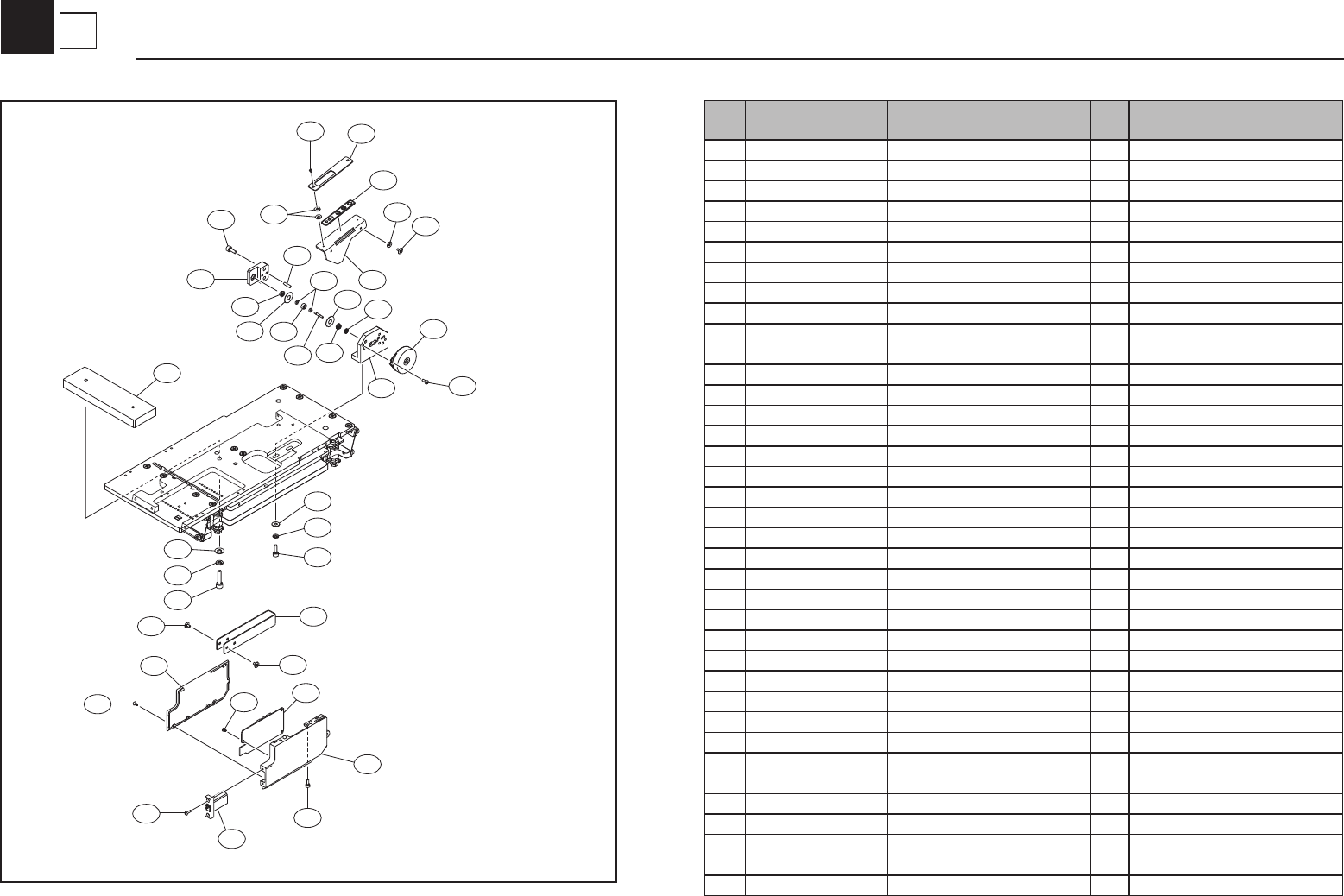

MOTOR / ELECTRIC
SS MULTI
20
2
30
27
4
22
35
12
10
5
6
11
14
3
8
32
31
28
34
33
29
24
9
16
25
13
15
26
17
21
24
7
19
23
22
18
1
30
24
No. Part No. Part Name Q'ty Remarks
1 KHJ-MCH14-00 SWITCH,BRACKET 1
2 KHJ-MCH15-00 SWITCH,COVER 1
3 KHJ-MCH20-00 MOTOR,BASE 1
4 KHJ-MCH21-00 BEARING HOLDER 1
5 KHJ-MCH22-00 INNER,WASHER 2
6 KHJ-MCH30-00 CRANK PIN 1
7 KHJ-MCH33-00 COVER,HARNESS 1
8 KHJ-MCH35-00 BALLAST WEIGHT 1
9 KHJ-MCHC5-00 COVER,BOX EL 1
10 KHJ-MCHA6-00 BEARING 1
11 K87-M564B-00 THRUST WASHER 1
12 K87-M564B-10 THRUST WASHER 1
13 KHJ-M4488-C0 PARTS,FEEDER BOARD 1 MS10033 KHJ-M4488-02
13-1 KHJ-M4488-D0 PARTS,FEEDER BOARD 1 MS10033 KHJ-M4488-03
14 KHJ-MC11H-00 GEAR 1
15 KHJ-MC1A1-00 BOX,EL 1
16 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 2
17 KHJ-MC1A9-00 CONNECTOR,BOARD 1
18 KHJ-MC1AA-00 SWITCH,OPERATION 1
19 KHJ-MC210-00 MOTOR,FEED 1
19-1 KHJ-MC210-01 MOTOR,FEED 1
20 90166-02J203 SCREW PAN HEAD 2
21 90166-02JA08 SCREW PAN HEAD 2
22 90933-03J692 BEARING 2
23 90990-08J021 SCREW,STAD 2
24 90990-46J012 BOLT,THIN HEAD 6
25 90990-54J004 SCREW,PAN HEAD TAP. 3
26 91312-03008 BOLT HEX.SOCKET HEAD 2
27 91312-04010 BOLT HEX.SOCKET HEAD 2
28 91312-04012 BOLT,HEX.SOCKET HEAD 2
29 91312-05020 BOLT HEX.SOCKET HEAD 2
30 92902-03200 WASHER PLAIN 6
31 92902-04100 WASHER,SPRING 2
32 92902-04200 WASHER PLAIN 2
33 92902-05100 WASHER SPRING 2
34 92902-05200 WASHER PLAIN 6
35 99480-03012 PIN,PARALLEL 2
KHJ-MCH-1003
2
1
EXTENTION / BLOCK,SUPPORT
OPTION
No. Part No. Part Name Q'ty Remarks
1 KHJ-MCHE1-00
EXTENSION STAY
2
2
KHJ-MCHE2-00
ADJUST STICK PLATE 1
3 KHJ-MCH45-00 ADJUST PLATE 9
4 KHJ-MCHE3-00 BLOCK,SUPPORT L 1
5 KHJ-MCHE4-00 BLOCK,SUPPORT R 1
6 KHJ-MCHE0-00 EXTENSION PARTS ASSY 1
7 KHJ-MCHEA-00 BLOCK,SUPPORT ASSY 1
8 90990-10J008 SCREW,BINDING HEAD 9
9 90990-46J012 BOLT,THIN HEAD 8
10 90990-19J021 NEEDLE PIN 2
11 91312-03018 BOLT HEX.SOCKET HEAD 2
11
7
11
10
10
4
9
9
9
9
1
1
2
8
3
5
6
