KHJ-MCH-0910 1 2 SLOPE SS MUL TI 5 20 15 1 1 2 18 10 18 9 14 7 16 13 18 4 21 3 15 1 1 6 1 17 19 12 8 10 No. Part No. Part Name Q'ty Remarks 1 KHJ-MCH10-00 STICK GUIDE 1 2 KHJ-MCH1 1-00 FRONT STICK PLA TE 1 3 KHJ-MCH…
KHJ-MCH-0910
1
1

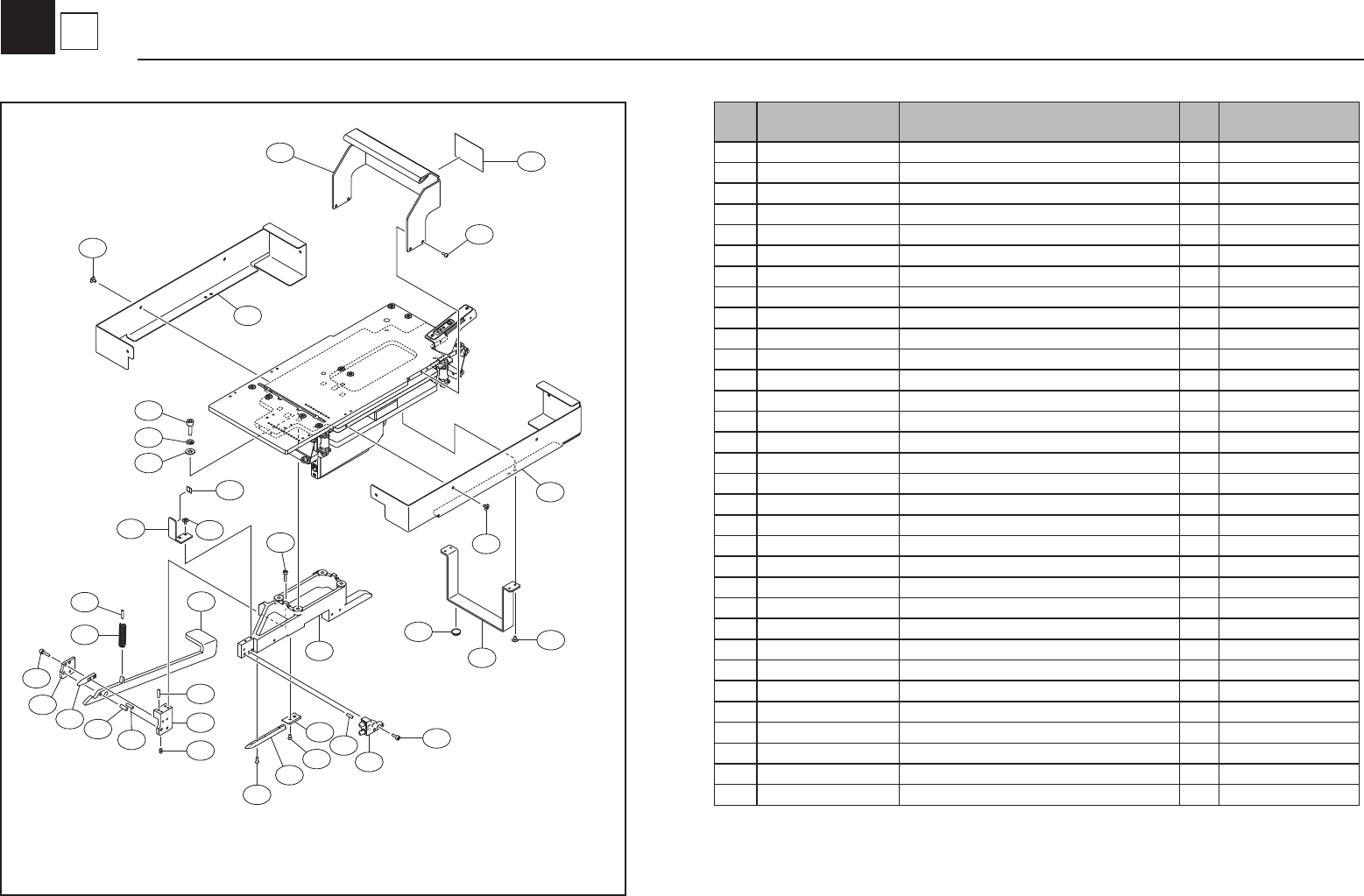

BASE / HOLDER / COVER
SS MULTI
22
7
27
10
9
25
28
29
26
5
24
4
2
32
19
3
24
1
23
16
30
31
14
12
15
11
8
22
22
6
21
13
20
22
18
17
No. Part No. Part Name Q'ty Remarks
1
KHJ-MCH01-00 BASE,BLOCK
1
2 KHJ-MCH37-00
LEVER 1
3 KHJ-MCH38-00 HOLDER,LEVER 1
4 KHJ-MCH39-00 HOLDER,LEVER 2 1
5 KHJ-MCH40-00 SPRING 1
6 KHJ-MCHC1-00 COVER,SIDE 1 1
7 KHJ-MCHC2-00 COVER,SIDE 2 1
8 KHJ-MCHC3-00 BRACKET,FOOT 1
9 KHJ-MCHC4-00 SAFETY,COVER 1
10 KHJ-MCH0C-00 SEAL,MAIN LABEL 1
11 K93-M1392-00 SPACER (TM-180-303) 2
12 KHJ-MC104-00 RAIL,UNDER 1
13 KHJ-MC105-00 PIN,TAIL 1
14 KHJ-MC106-00 PLATE,UNDER 2
15 KHJ-MC10F-00 SCREW,FLAT HEAD 2
16 KHJ-MC10W-00 FRONT BLOCK ASSY. 1
17 KHJ-MCH32-00 FLAG PLATE 1
18 K87-M5543-00 STICKER 1
19 92A08-03305 SCREW,SET 2
20 90990-19J022 NEEDLE PIN 1
21 90990-19J024 NEEDLE PIN 1
22 90990-46J012 BOLT,THIN HEAD 14
23 91312-03008 BOLT HEX.SOCKET HEAD 2
24 91312-03012 BOLT,HEX.SOCKET HEAD 4
25 91312-05016 BOLT HEX.SOCKET HEAD 4
26 91609-25012 PIN,SPRING 1
27 92012-03006 BOLT,BUTTON HEAD 4
28 92902-05100 WASHER SPRING 4
29 92902-05200 WASHER PLAIN 4
30 98707-03006 SCREW,FLAT HEAD 4
31 99480-03010 PIN,PARALLEL 2
32 99480-03012 PIN,PARALLEL 2
KHJ-MCH-0910
1
2
SLOPE
SS MULTI
5
20
15
11
2
18
10
18
9
14
7
16
13
18
4
21
3
15
11
6
1
17
19
12
8
10
No. Part No. Part Name Q'ty Remarks
1
KHJ-MCH10-00 STICK GUIDE
1
2 KHJ-MCH11-00
FRONT STICK PLATE 1
3 KHJ-MCH12-00 MIDDLE STICK PLATE 1
4 KHJ-MCH13-00 REAR STICK PLATE 1
5 KHJ-MCH36-00 FRONT STICK PLATE 2 1
6 KHJ-MCHA1-00 STICK,SUPPORT 1
7 KHJ-MCHA4-00 SLOPE PLATE 1
8 K87-M5543-00 STICKER 2
9 KW1-MAM95-00 SUPPORT 2
10 KW1-MAM97-00 SPACER 24
11 KW1-MAM98-00 STICK FIX PLATE 24
12 KW1-MAMDM-00 ADJUST PLATE 12
13 90167-02JB06 SCREW,FLAT HEAD 4
14 90167-02JB10 SCREW,FLAT HEAD 4
15 90990-10J008 SCREW,BINDING HEAD 24
16 90990-19J021 NEEDLE PIN 2
17 90990-46J012 BOLT,THIN HEAD 6
18 90990-46J013 BOLT,THIN HEAD 26
19 92012-03006 BOLT,BUTTON HEAD 4
20 97602-03308 SCREW,PAN HEAD W/W 4
21 98902-03004 SCREW BINDING HEAD 12
KHJ-MCH-0910
1
3
VIBRATION PLATE
SS MULTI
24
25
24
13
14
16
8
22
10
22
23
21
21
22
12
22
23
22
11
10
18
17
19
19
4
4
3
5
7
20
1
2
12
22
9
3
4
19
17
6
13
15
4
19
18
20
11
No. Part No. Part Name Q'ty Remarks
1
KHJ-MCH02-00 BASE,PLATE
1
2 KHJ-MCH03-00
UNDER PLATE
1
3 KHJ-MCH04-00 FLAT SPRING 4
4 KHJ-MCH06-00 PLATE HOLDER 8
5 KHJ-MCH07-00 FRONT ANGLE 2
6 KHJ-MCH08-00 REAR ANGLE 2
7 KHJ-MCH09-00 UPPER PLATE 1
8 KHJ-MCH16-00 PIVOT,STAY 1
9 KHJ-MCH17-00 CONNECTION ROD 1
10 KHJ-MCH23-00 RUBBER DAMPER GUIDE 4
11 KHJ-MCH24-00 RUBBER DAMPER GUIDE 4
12 KHJ-MCHA3-00 ANTI VIBRATION RUBBER 4
13 KHJ-MCHA5-00 THRUST WASHER 2
14 92A08-03305 SCREW,SET 1
15 90933-02J683 BEARING 2
16 90990-19J023 NEEDLE PIN 1
17 91312-04010 BOLT HEX.SOCKET HEAD 8
18 91312-05012 BOLT HEX.SOCKET HEAD 6
19 92902-04100 WASHER,SPRING 16
20 92902-05100 WASHER SPRING 4
21 95602-05100 NUT U 2
22 95702-05500 NUT,FLANGE 16
23 97002-05016 BOLT HEXAGON 2
24 98702-04008 SCREW,FLAT HEAD (+) 8
25 98702-04016 SCREW FLAT HEAD 2
