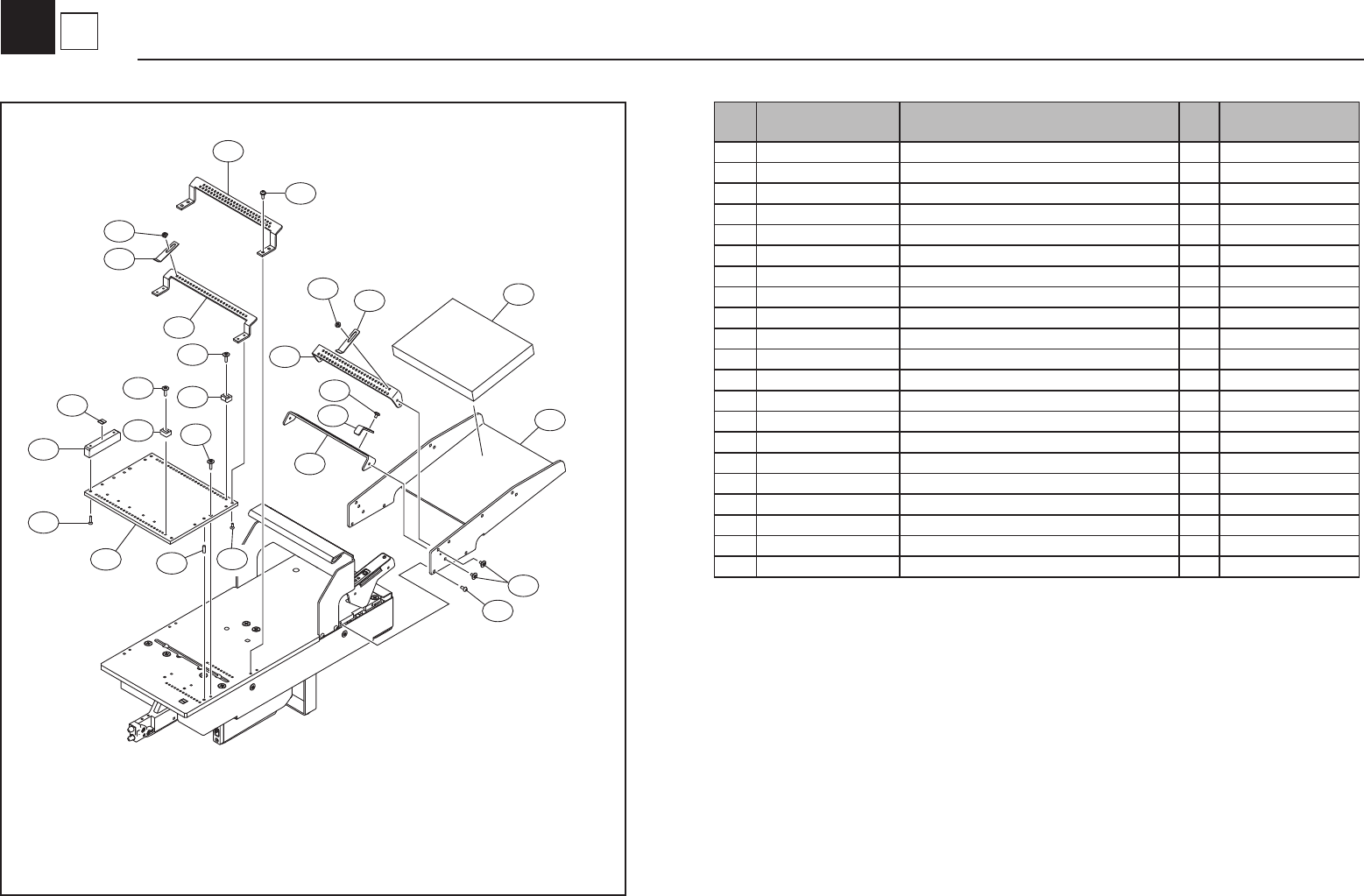

KHJ-MCH-0910 1 3 VIBRA TION PLA TE SS MUL TI 24 25 24 13 14 16 8 22 10 22 23 21 21 22 12 22 23 22 1 1 10 18 17 19 19 4 4 3 5 7 20 1 2 12 22 9 3 4 19 17 6 13 15 4 19 18 20 1 1 No. Part No. Part Name Q'ty Remarks 1 KH…
KHJ-MCH-0910
1
2
SLOPE
SS MULTI
5
20
15
11
2
18
10
18
9
14
7
16
13
18
4
21
3
15
11
6
1
17
19
12
8
10
No. Part No. Part Name Q'ty Remarks
1
KHJ-MCH10-00 STICK GUIDE
1
2 KHJ-MCH11-00
FRONT STICK PLATE 1
3 KHJ-MCH12-00 MIDDLE STICK PLATE 1
4 KHJ-MCH13-00 REAR STICK PLATE 1
5 KHJ-MCH36-00 FRONT STICK PLATE 2 1
6 KHJ-MCHA1-00 STICK,SUPPORT 1
7 KHJ-MCHA4-00 SLOPE PLATE 1
8 K87-M5543-00 STICKER 2
9 KW1-MAM95-00 SUPPORT 2
10 KW1-MAM97-00 SPACER 24
11 KW1-MAM98-00 STICK FIX PLATE 24
12 KW1-MAMDM-00 ADJUST PLATE 12
13 90167-02JB06 SCREW,FLAT HEAD 4
14 90167-02JB10 SCREW,FLAT HEAD 4
15 90990-10J008 SCREW,BINDING HEAD 24
16 90990-19J021 NEEDLE PIN 2
17 90990-46J012 BOLT,THIN HEAD 6
18 90990-46J013 BOLT,THIN HEAD 26
19 92012-03006 BOLT,BUTTON HEAD 4
20 97602-03308 SCREW,PAN HEAD W/W 4
21 98902-03004 SCREW BINDING HEAD 12
KHJ-MCH-0910
1
3
VIBRATION PLATE
SS MULTI
24
25
24
13
14
16
8
22
10
22
23
21
21
22
12
22
23
22
11
10
18
17
19
19
4
4
3
5
7
20
1
2
12
22
9
3
4
19
17
6
13
15
4
19
18
20
11
No. Part No. Part Name Q'ty Remarks
1
KHJ-MCH02-00 BASE,PLATE
1
2 KHJ-MCH03-00
UNDER PLATE
1
3 KHJ-MCH04-00 FLAT SPRING 4
4 KHJ-MCH06-00 PLATE HOLDER 8
5 KHJ-MCH07-00 FRONT ANGLE 2
6 KHJ-MCH08-00 REAR ANGLE 2
7 KHJ-MCH09-00 UPPER PLATE 1
8 KHJ-MCH16-00 PIVOT,STAY 1
9 KHJ-MCH17-00 CONNECTION ROD 1
10 KHJ-MCH23-00 RUBBER DAMPER GUIDE 4
11 KHJ-MCH24-00 RUBBER DAMPER GUIDE 4
12 KHJ-MCHA3-00 ANTI VIBRATION RUBBER 4
13 KHJ-MCHA5-00 THRUST WASHER 2
14 92A08-03305 SCREW,SET 1
15 90933-02J683 BEARING 2
16 90990-19J023 NEEDLE PIN 1
17 91312-04010 BOLT HEX.SOCKET HEAD 8
18 91312-05012 BOLT HEX.SOCKET HEAD 6
19 92902-04100 WASHER,SPRING 16
20 92902-05100 WASHER SPRING 4
21 95602-05100 NUT U 2
22 95702-05500 NUT,FLANGE 16
23 97002-05016 BOLT HEXAGON 2
24 98702-04008 SCREW,FLAT HEAD (+) 8
25 98702-04016 SCREW FLAT HEAD 2
KHJ-MCH-1003
1
4
MOTOR / ELECTRIC
SS MULTI
20
2
30
27
4
22
35
12
10
5
6
11
14
3
8
32
31
28
34
33
29
24
9
16
25
13
15
26
17
21
24
7
19
23
22
18
1
30
24
No. Part No. Part Name Q'ty Remarks
1 KHJ-MCH14-00 SWITCH,BRACKET 1
2 KHJ-MCH15-00 SWITCH,COVER 1
3 KHJ-MCH20-00 MOTOR,BASE 1
4 KHJ-MCH21-00 BEARING HOLDER 1
5 KHJ-MCH22-00 INNER,WASHER 2
6 KHJ-MCH30-00 CRANK PIN 1
7 KHJ-MCH33-00 COVER,HARNESS 1
8 KHJ-MCH35-00 BALLAST WEIGHT 1
9 KHJ-MCHC5-00 COVER,BOX EL 1
10 KHJ-MCHA6-00 BEARING 1
11 K87-M564B-00 THRUST WASHER 1
12 K87-M564B-10 THRUST WASHER 1
13 KHJ-M4488-C0 PARTS,FEEDER BOARD 1 MS10033 KHJ-M4488-02
13-1 KHJ-M4488-D0 PARTS,FEEDER BOARD 1 MS10033 KHJ-M4488-03
14 KHJ-MC11H-00 GEAR 1
15 KHJ-MC1A1-00 BOX,EL 1
16 KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T 2
17 KHJ-MC1A9-00 CONNECTOR,BOARD 1
18 KHJ-MC1AA-00 SWITCH,OPERATION 1
19 KHJ-MC210-00 MOTOR,FEED 1
19-1 KHJ-MC210-01 MOTOR,FEED 1
20 90166-02J203 SCREW PAN HEAD 2
21 90166-02JA08 SCREW PAN HEAD 2
22 90933-03J692 BEARING 2
23 90990-08J021 SCREW,STAD 2
24 90990-46J012 BOLT,THIN HEAD 6
25 90990-54J004 SCREW,PAN HEAD TAP. 3
26 91312-03008 BOLT HEX.SOCKET HEAD 2
27 91312-04010 BOLT HEX.SOCKET HEAD 2
28 91312-04012 BOLT,HEX.SOCKET HEAD 2
29 91312-05020 BOLT HEX.SOCKET HEAD 2
30 92902-03200 WASHER PLAIN 6
31 92902-04100 WASHER,SPRING 2
32 92902-04200 WASHER PLAIN 2
33 92902-05100 WASHER SPRING 2
34 92902-05200 WASHER PLAIN 6
35 99480-03012 PIN,PARALLEL 2
