MODEL TCM-X100J 0212-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 103 H-7 601 630 096 5056 BR AC KET 1 766H--010-601 60 2 630 006 0409 GEA R,R E DUCTION 1 76 6 H- - 010-602 60 3 630 092 9782 ASSY ,MOTOR,REVERSIB…
MODEL TCM-X100J
0105-001
102
R ࠦࡦࡌࠕㇱ R CONVEYOR SECTION

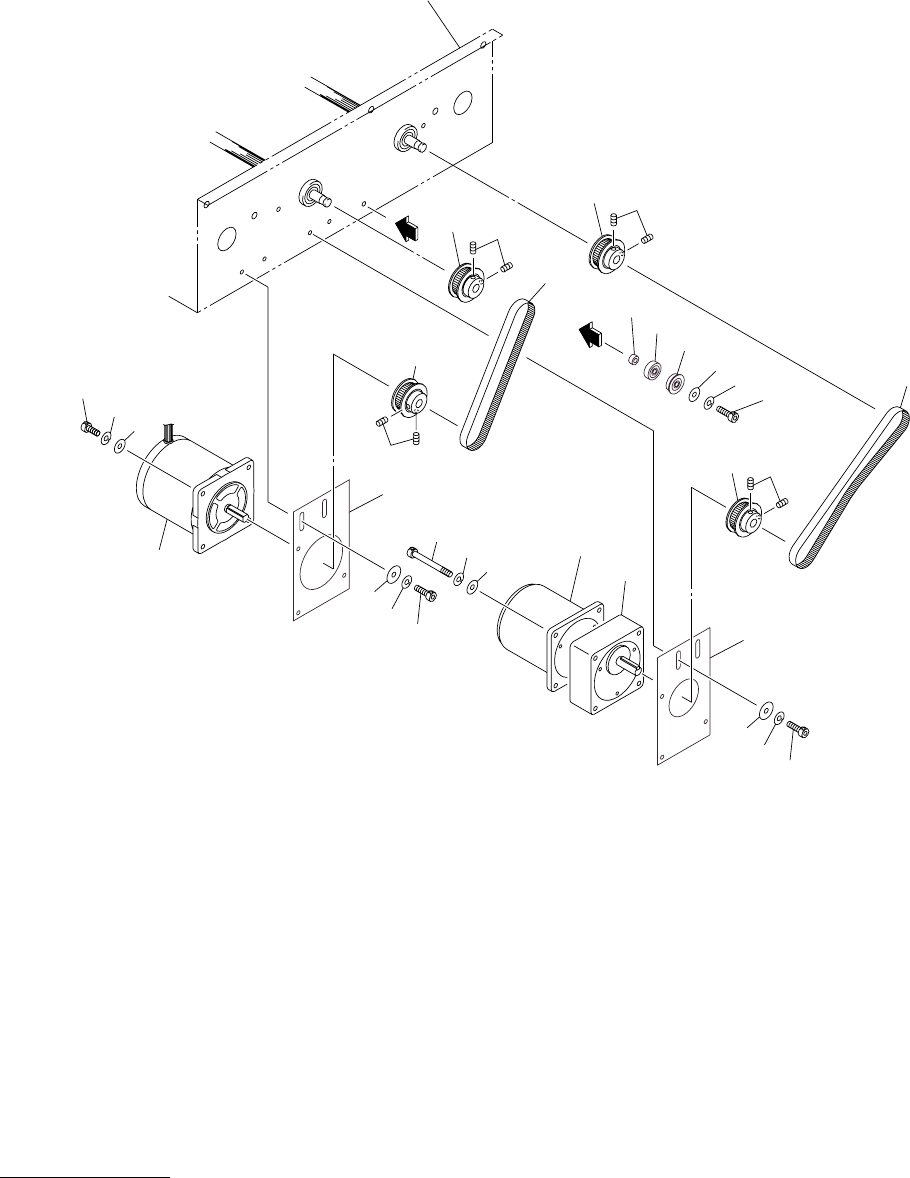

Fig. H-7 ࠦࡦࡌࠕࡌ࡞࠻㚟േㇱ Conveyor Belt Driver
610
611
610
609
614
610
602
603
609
See Fig.H-1
Key No.1
610
616
609
620
612
601
607
605
613
605
606
604
605
606
607
605
613
625
626
624
623
622
621
613
A
A
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
103
H-7
601 630 096 5056 BRACKET 1 766H--010-601
602 630 006 0409 GEAR,REDUCTION 1 766H--010-602
603 630 092 9782 ASSY,MOTOR,REVERSIBLE 1 M4,4RK25GN-AUL 100V
766H--010-603
604 630 000 7831 BOLT,HEX-SCT 2 766H--010-604
605 411 141 6705 WASHER SPR 5 8 766H--010-605
606 411 141 4107 WASHER V 5X10X1 4 766H--010-606
607 630 001 0220 WASHER 4 766H--010-607
609 630 009 2684 PULLEY,TIMING 3 766H--010-609
610 630 000 8951 SET SCREW 8 766H--010-610
611 630 073 1668 BELT,TIMING 1 766H--010-611
612 630 092 9744 ASSY,MOTOR,STEPPING 1 MPM26(R2CV),103-8572-7041
766H--010-612
613 630 000 7763 BOLT,HEX-SCT 6 766H--010-613
614 630 093 2232 PULLEY,TIMING 1 766H--010-614
616 630 049 6925 BELT,TIMING 1 766H--010-616
620 630 096 5063 BRACKET 1 766H--010-620
621 630 077 3200 BEARING,RADIAL 1 766H--010-621
622 630 077 3217 BEARING,RADIAL 1 766H--010-622
623 630 077 4733 COLLAR 1 766H--010-623
624 630 000 7794 BOLT,HEX-SCT 1 766H--010-624
625 411 141 4107 WASHER V 5X10X1 1 766H--010-625
626 411 008 2109 WASHER SPR 5 1 766H--010-626
MODEL TCM-X100J
0212-002
104
X ゲޔY ゲ X AXIS, YAXIS
Fig. JB-1 X ゲ㚟േㇱ X Axis Driver
6
27
23
11
9
27
7
24
15
8
30
33
16
19
19
28
31
35
12
10
26
30
33
4
31
28
20
31
18
14
14
18
25
30
34
1
25
30
34
28
20
13
17
3
2
32
29
22
38
39
40
36
