MODEL TCM-X100J 0105-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 115 JC-1 1 630 096 7876 P L A T E 1 766JC-010-001 2 630 096 7883 P L A T E 1 766JC-010-002 3 630 096 8064 BASE 1 7 6 6 J C - 010-003 4 630 096 74…
MODEL TCM-X100J
0105-001
114
XY ࠻࠶ࡊࡌࠬㇱ XY TOP BASE SECTION

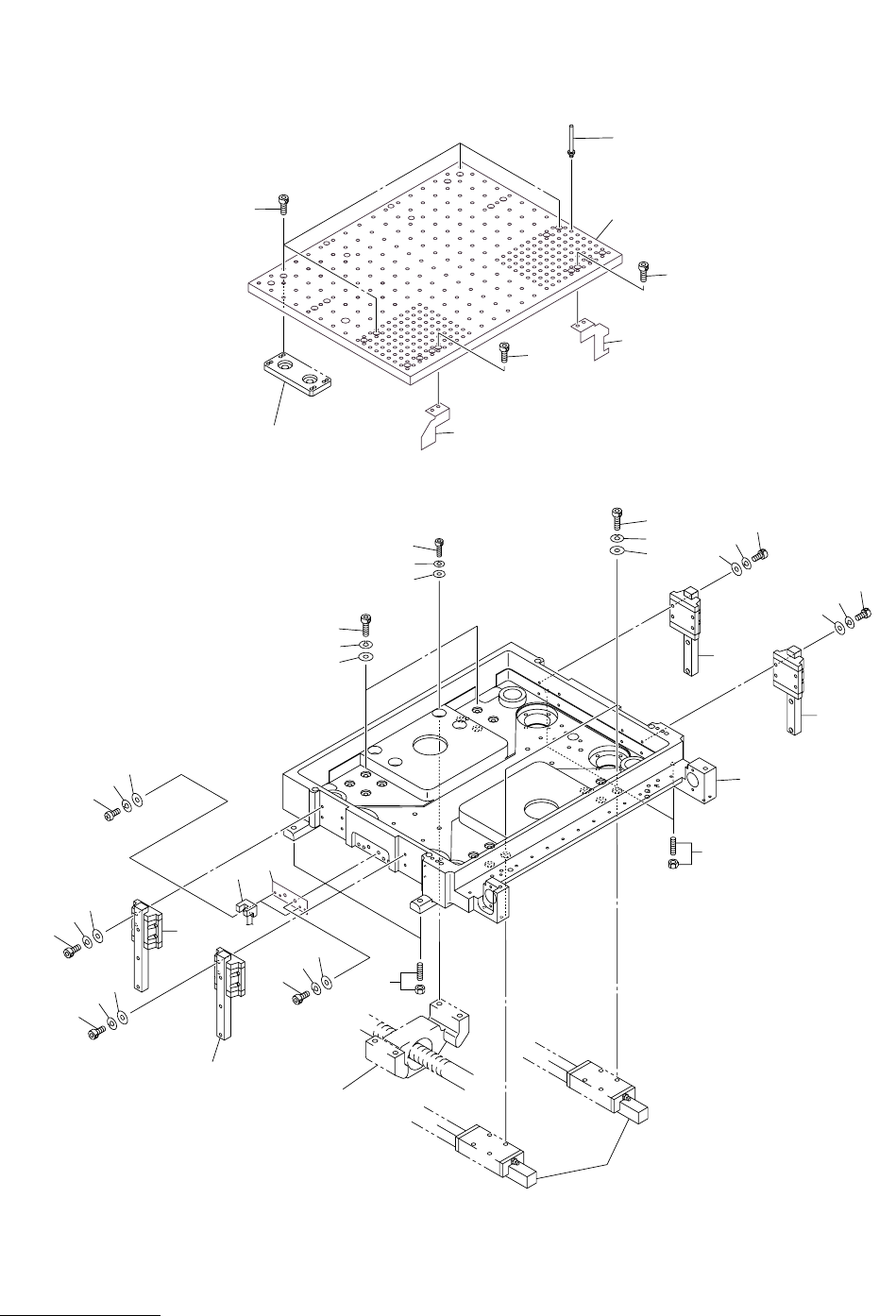

Fig. JC-1 ࡃ࠶ࠢࠕ࠶ࡊࡌࠬ Back-up Base
8
See Fig.JC-4
Key No.302
See Fig.JB-4
Key No.314
See Fig.JB-4
Key No.302
8
3
2
1
14
10
9
4
5
17
20
6
9
10
27
18
21
14
17
20
31
24
25
12
12
BACK-UP PIN R1
13
26
16
19
26
16
19
28
29
30
19
16
26
19
16
26
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
115
JC-1
1 630 096 7876 PLATE 1 766JC-010-001
2 630 096 7883 PLATE 1 766JC-010-002
3 630 096 8064 BASE 1 766JC-010-003
4 630 096 7401 FRAME 1 766JC-010-004
5 630 096 7890 PLATE 1 766JC-010-005
6 630 080 5369 SENSOR,PHOTO 2 BPH60,BPH61 766JC-010-006
8 630 098 7010 MECH PARTS 4 766JC-010-008
9 630 096 6893 GUIDE,LINEAR 2 766JC-010-009
10 630 096 7210 GUIDE,LINEAR 2 766JC-010-010
12 630 000 7633 BOLT,HEX-SCT 4 766JC-010-012
13 630 000 7640 BOLT,HEX-SCT 16 766JC-010-013
14 630 000 7657 BOLT,HEX-SCT 16 766JC-010-014
16 411 141 2806 WASHER SPR 3 16 766JC-010-016
17 411 141 2905 WASHER SPR 4 16 766JC-010-017
18 411 086 4408 WASHER SPR 3 2 766JC-010-018
19 411 141 3902 WASHER V 3X7X0.5 16 766JC-010-019
20 411 141 4008 WASHER V 4X9X0.8 16 766JC-010-020
21 411 088 9005 WASHER F 3X6X0.5 2 766JC-010-021
24 411 141 3001 WASHER SPR 6 4 766JC-010-024
25 411 141 4305 WASHER V 6X12.5X1.6 4 766JC-010-025
26 630 000 7534 BOLT,HEX-SCT 16 766JC-010-026
27 630 000 7510 BOLT,HEX-SCT 2 766JC-010-027
28 411 140 6300 SCR PAN 2X8 4 766JC-010-028
29 411 141 2509 WASHER SPR 2 4 766JC-010-029
30 411 141 3605 WASHER V 2X5X0.3 4 766JC-010-030
31 630 000 7916 BOLT,HEX-SCT 4 766JC-010-031
MODEL TCM-X100J
0105-001
116
XY ࠻࠶ࡊࡌࠬㇱ XY TOP BASE SECTION
Fig. JC-2 ࡃ࠶ࠢࠕ࠶ࡊਅᬌㇱ Back-up Leveller Detector
See Fig.JC-1
Key No.4
104
110
112
107
105
105
115
116
114
101
115
116
114
101
118
119
117
118
119
117
