P-209-001 - 第120页
MODEL TCM-X100J 0212-002 118 See Fig.JC-1 K ey No .4 208 207 207-05 207-07 207-09 207-03 207-08 207-01 207-14 208 POSITIONING PIN P1 (V ARIANT) POSITIONING PIN Q1 (V ARIANT) 205 215 208 206 210 212 214 210 212 214 209 21…
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
117
JC-2
101 630 096 7906 BRACKET 2 766JC-010-101
104 630 096 8613 PLATE 1 766JC-010-104
105 630 093 7039 SENSOR,PROXIMITY 2 BPH85,BPH86 766JC-010-105
107 630 000 7626 BOLT,HEX-SCT 2 766JC-010-107
110 411 141 2905 WASHER SPR 4 2 766JC-010-110
112 411 141 4008 WASHER V 4X9X0.8 2 766JC-010-112
114 630 000 7527 BOLT,HEX-SCT 4 766JC-010-114
115 411 141 2806 WASHER SPR 3 4 766JC-010-115
116 411 141 3902 WASHER V 3X7X0.5 4 766JC-010-116
117 411 112 9001 SCR PAN 2X10 4 766JC-010-117
118 411 141 2509 WASHER SPR 2 4 766JC-010-118
119 411 141 3605 WASHER V 2X5X0.3 4 766JC-010-119
MODEL TCM-X100J
0212-002
118
See Fig.JC-1
Key No.4
208
207
207-05
207-07
207-09
207-03
207-08
207-01
207-14
208
POSITIONING PIN P1
(VARIANT)
POSITIONING PIN Q1
(VARIANT)
205
215
208
206
210
212
214
210
212
214
209
211
213
203
209
211
213
202
204
215
208
201
Fig.JC-3
TCM-X100J-002

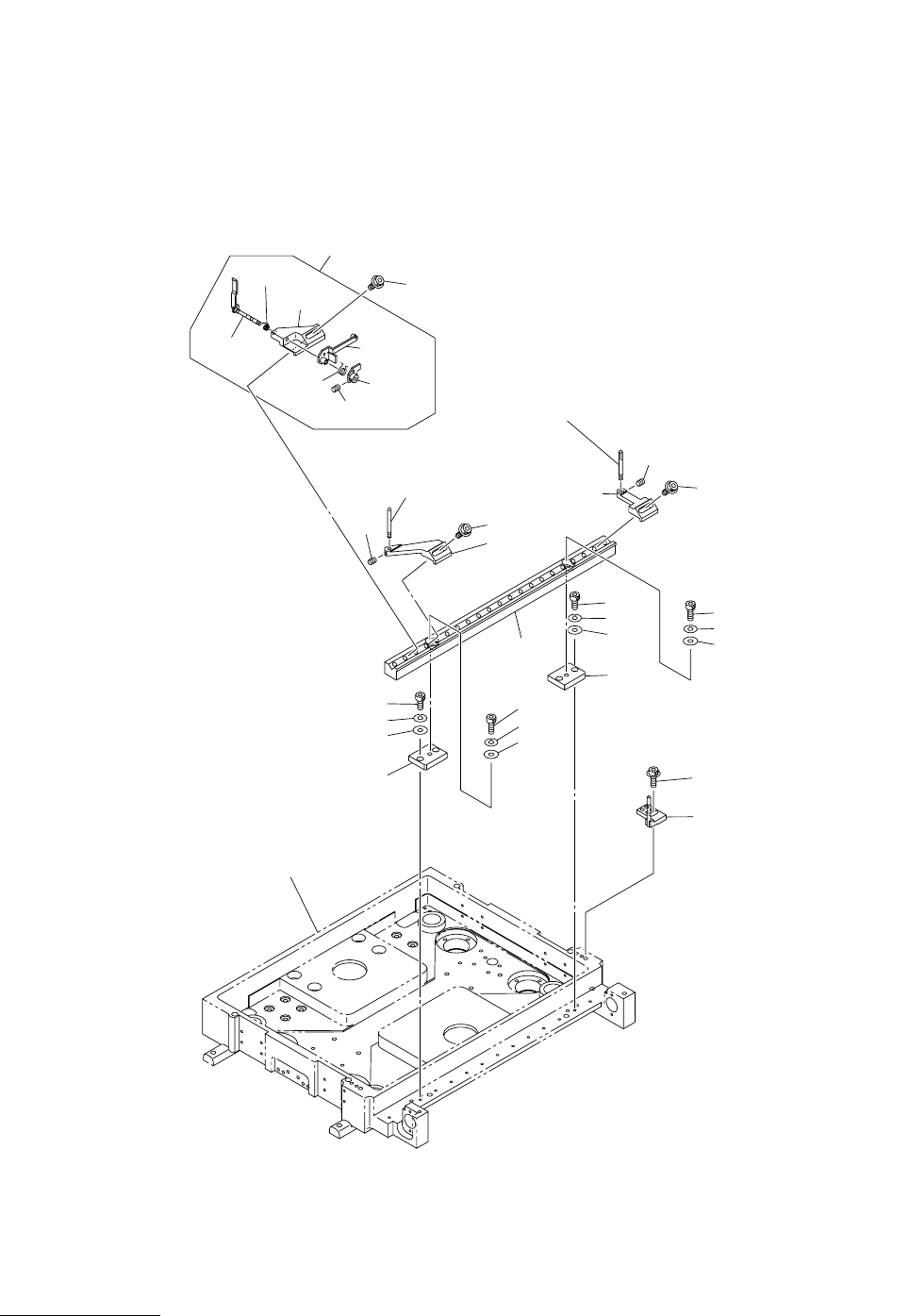

XY ࠻࠶ࡊࡌࠬㇱ XY TOP BASE SECTION
Fig. JC-3 ၮ᧼⟎ㇱ P.C.B. Positioning Section
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
119
JC-3
201 630 098 4378 PIN,LOCATE 1 766JC-010-201
202 630 056 7205 PLATE,LOCATE 1 766JC-010-202
203 630 056 7212 PLATE,LOCATE 1 766JC-010-203
204 630 056 7137 GUIDE 1 766JC-010-204
205 630 089 7289 PLATE 1 766JC-010-205
206 630 089 7272 PLATE 1 766JC-010-206
207 630 093 6926 ASSY,LEVER 1 766JC-010-207
207 -01 630 093 5387 PLATE 1
207 -03 630 093 3031 SPRING,TORSION 1
207 -05 630 093 5363 SHAFT 1
207 -07 630 105 8559 SPRING,TORSION 1
207 -08 630 093 5370 LEVER 1
207 -09 630 093 3000 BLOCK 1
207 -14 630 008 1053 SET SCREW 1
208 630 008 1213 BOLT,HEX-SCT 4 766JC-010-208
209 630 000 7527 BOLT,HEX-SCT 4 766JC-010-209
210 630 000 7763 BOLT,HEX-SCT 2 766JC-010-210
211 411 141 2806 WASHER SPR 3 4 766JC-010-211
212 411 141 6705 WASHER SPR 5 2 766JC-010-212
213 411 141 3902 WASHER V 3X7X0.5 4 766JC-010-213
214 411 141 4107 WASHER V 5X10X1 2 766JC-010-214
215 630 008 1053 SET SCREW 2 766JC-010-215
