MODEL TCM-X100J 0212-002 136 XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY T ABLE PIPING, WIRING Fig. JE-1 X Y ࠪࡘ࠻ࡦࠨ XY Chute Width Limit Sensors 2 See Fig.JD-1 K ey No .33 See Fig.JD-1 K ey No .1 See Fig.JC-1 K ey No .4 See Fig.JD-4 K ey No .306 …
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
135
JD-7
609 630 093 2560 HOLDER 2 766JD-010-609
611 630 076 3072 RING 2 766JD-010-611
612 630 076 3089 COLLAR 2 766JD-010-612
613 630 093 1792 PLATE 1 766JD-010-613
614 630 059 6779 GRIP 1 766JD-010-614
615 630 096 6916 BALL SCREW 1 766JD-010-615
616 630 059 6809 NUT 2 766JD-010-616
617 630 059 6755 PULLEY,TIMING 2 766JD-010-617
618 630 093 7008 BEARING,RADIAL 2 766JD-010-618
622 630 096 6909 GUIDE,LINEAR 2 766JD-010-622
623 630 071 0359 BEARING,RADIAL 2 766JD-010-623
624 630 007 1719 BEARING,RADIAL 2 766JD-010-624
625 630 000 7503 BOLT,HEX-SCT 24 766JD-010-625
626 630 000 7510 BOLT,HEX-SCT 4 766JD-010-626
630 411 141 2806 WASHER SPR 3 2 766JD-010-630
632 411 141 5906 WASHER F 4X8X0.8 1 766JD-010-632
633 411 141 3902 WASHER V 3X7X0.5 2 766JD-010-633
635 411 001 0201 RING E 5 1 766JD-010-635
636 630 096 7203 BALL SCREW 1 766JD-010-636
637 630 094 3528 SET SCREW 4 766JD-010-637
MODEL TCM-X100J
0212-002
136

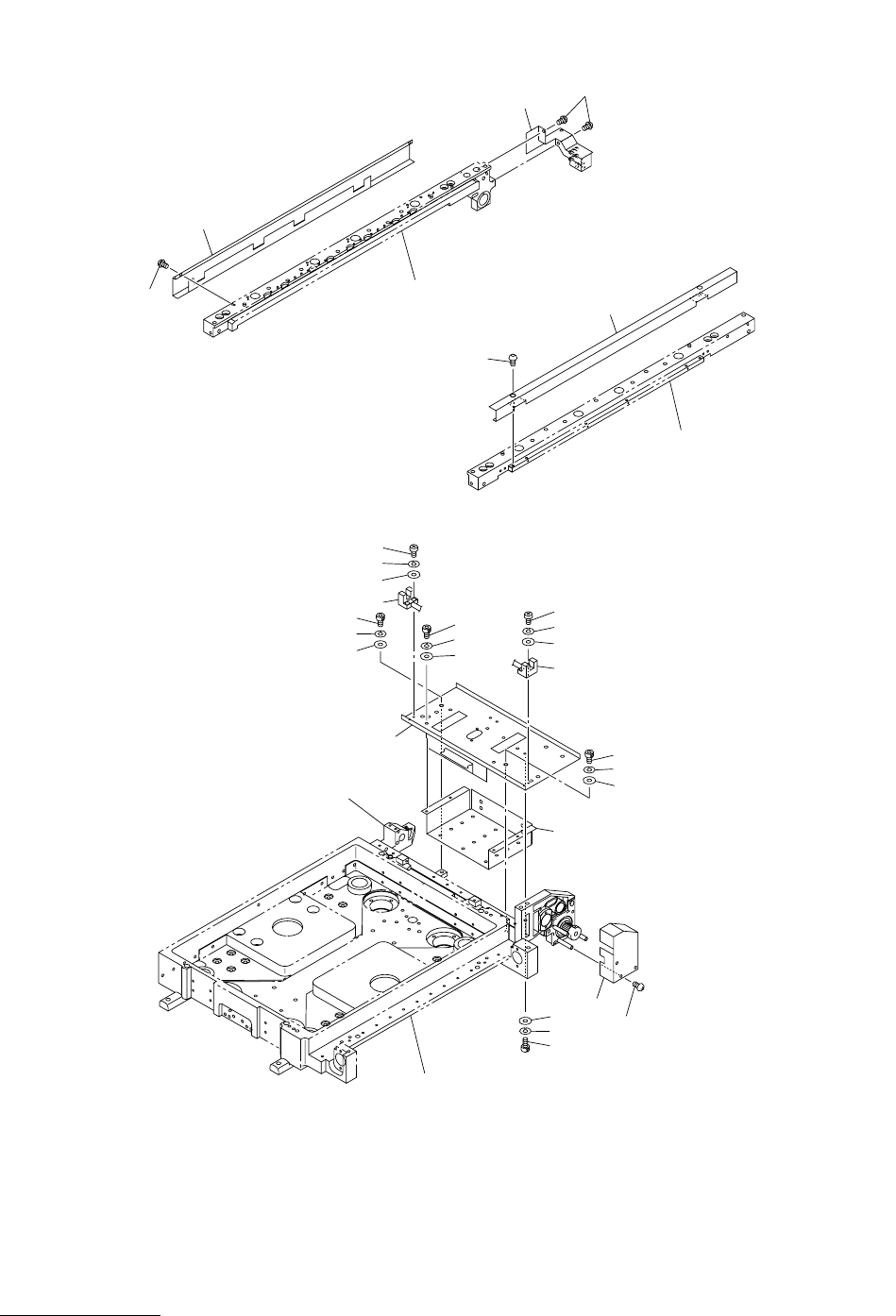

XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING
Fig. JE-1 XY ࠪࡘ࠻ࡦࠨ XY Chute Width Limit Sensors
2
See Fig.JD-1
Key No.33
See Fig.JD-1
Key No.1
See Fig.JC-1
Key No.4
See Fig.JD-4
Key No.306
7
1
27
27
11
16
19
14
18
21
12
17
20
26
10
11
16
19
14
6
15
20
17
28
18
21
10
5
27
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
137
JE-1
1 630 095 6498 BRACKET 1 766JE-010-001
2 630 096 7968 BRACKET 1 766JE-010-002
5 630 096 9146 COVER 1 766JE-010-005
6 630 093 2621 COVER 1 766JE-010-006
7 630 096 8002 COVER 1 766JE-010-007
10 630 093 0016 ASSY,SENSOR,PHOTO 2 BPH73,BPH74 766JE-010-010
11 411 140 6300 SCR PAN 2X8 4 766JE-010-011
12 630 000 7503 BOLT,HEX-SCT 4 766JE-010-012
14 630 000 7619 BOLT,HEX-SCT 3 766JE-010-014
15 411 050 5004 SCR TRS 3X6 3 766JE-010-015
16 411 141 2509 WASHER SPR 2 4 766JE-010-016
17 411 141 2806 WASHER SPR 3 5 766JE-010-017
18 411 141 2905 WASHER SPR 4 3 766JE-010-018
19 411 141 3605 WASHER V 2X5X0.3 4 766JE-010-019
20 411 141 3902 WASHER V 3X7X0.5 5 766JE-010-020
21 411 141 4008 WASHER V 4X9X0.8 3 766JE-010-021
26 630 096 7975 BRACKET 1 766JE-010-026
27 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 6 766JE-010-027
28 630 000 7527 BOLT,HEX-SCT 1 766JE-010-028
