MODEL TCM-X100J 0105-001 138 XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY T ABLE PIPING, WIRING Fig. JE-2 Z ࠢࡦࡊ㈩▤ - 㧝 Z Clamp Piping-1 See Fig.JE-1 Key No.2 See Fig.JE-1 Key No.1 11 9 11 8 120 11 9 120 103 104 11 5 11 6 11 8 104 11 7 11 7 11 7 122 …
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
137
JE-1
1 630 095 6498 BRACKET 1 766JE-010-001
2 630 096 7968 BRACKET 1 766JE-010-002
5 630 096 9146 COVER 1 766JE-010-005
6 630 093 2621 COVER 1 766JE-010-006
7 630 096 8002 COVER 1 766JE-010-007
10 630 093 0016 ASSY,SENSOR,PHOTO 2 BPH73,BPH74 766JE-010-010
11 411 140 6300 SCR PAN 2X8 4 766JE-010-011
12 630 000 7503 BOLT,HEX-SCT 4 766JE-010-012
14 630 000 7619 BOLT,HEX-SCT 3 766JE-010-014
15 411 050 5004 SCR TRS 3X6 3 766JE-010-015
16 411 141 2509 WASHER SPR 2 4 766JE-010-016
17 411 141 2806 WASHER SPR 3 5 766JE-010-017
18 411 141 2905 WASHER SPR 4 3 766JE-010-018
19 411 141 3605 WASHER V 2X5X0.3 4 766JE-010-019
20 411 141 3902 WASHER V 3X7X0.5 5 766JE-010-020
21 411 141 4008 WASHER V 4X9X0.8 3 766JE-010-021
26 630 096 7975 BRACKET 1 766JE-010-026
27 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 6 766JE-010-027
28 630 000 7527 BOLT,HEX-SCT 1 766JE-010-028
MODEL TCM-X100J
0105-001
138
XY ࠹ࡉ࡞㈩▤ޔ㈩✢ XY TABLE PIPING, WIRING

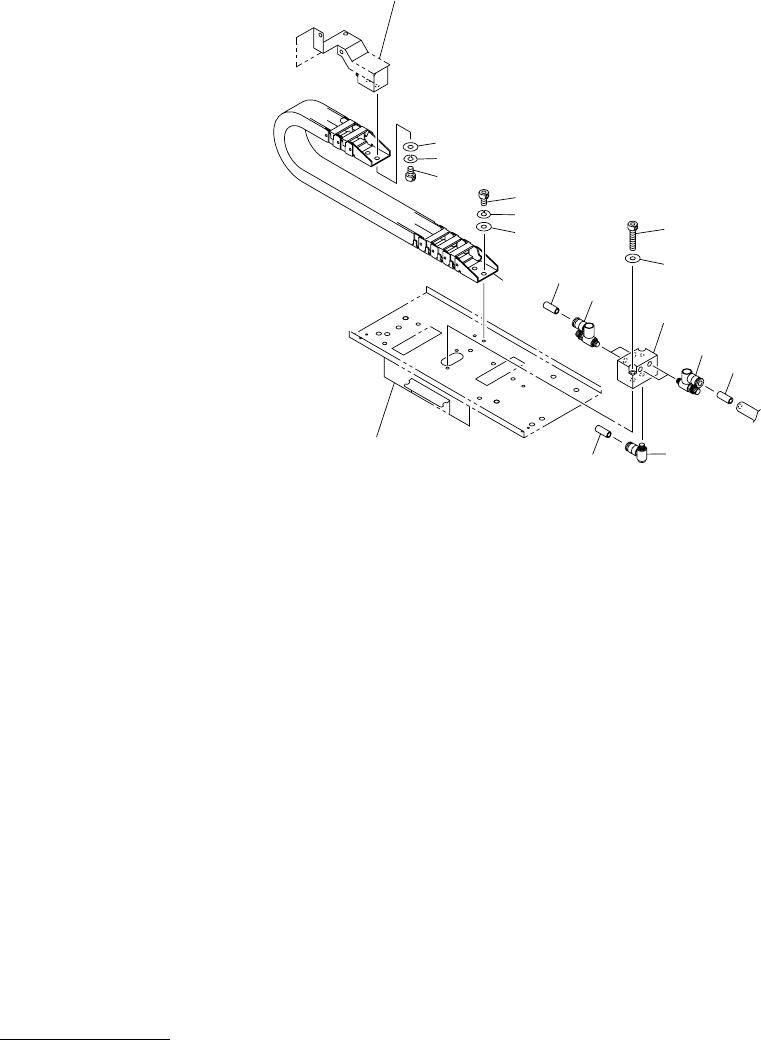

Fig. JE-2 Z ࠢࡦࡊ㈩▤ - 㧝 Z Clamp Piping-1
See Fig.JE-1
Key No.2
See Fig.JE-1
Key No.1
119
118
120
119
120
103
104
115
116
118
104
117
117
117
122
121
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
139
JE-2
103 630 097 1392 MECH PARTS(CABLEVEYOR) 1 766JE-010-103
104 630 047 9782 AIR LINE EQPT 4 766JE-010-104
115 630 096 7982 BLOCK 1 766JE-010-115
116 630 093 7459 PIPE FITTINGS 2 766JE-010-116
117 630 079 8432 AIR LINE EQPT 6 766JE-010-117
118 630 000 7503 BOLT,HEX-SCT 4 766JE-010-118
119 411 141 2806 WASHER SPR 3 4 766JE-010-119
120 411 141 3902 WASHER V 3X7X0.5 4 766JE-010-120
121 630 000 7565 BOLT,HEX-SCT 2 766JE-010-121
122 411 141 5807 WASHER F 3X6X0.5 2 766JE-010-122
