MODEL TCM-X100J 0212-002 230 ࡈࠖ࡯࠳ࠠࡖ࡝࠶ࠫࠞࡃ࡯ Feeder Carriage Cover Fig. MC-5 ૞ᬺࠛ࡝ࠕ቟ోᚺࡄࡀ࡞ W ork Area Seafty Door Panel Fig.MC-5 TCM-X100J-002 4797S-002 403 404 405 403 401 402 401

MODEL TCM-X100J

0212-002

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

229

MC-4

301 630 103 4744 SHOCK ABSORBER 8

302 630 098 0837 MECH PARTS(COLLAR) 8

303 630 098 0844 MECH PARTS(BOLT) 8

304 630 098 0851 MECH PARTS(BOLT) 8

305 630 098 0868 MECH PARTS(STTOPER) 6

321 630 106 8831 MECH PARTS(BRACKET) 2

322 630 106 8848 MECH PARTS(BRACKET) 2

323 630 106 8855 MECH PARTS(BRACKET) 1

324 630 106 8862 MECH PARTS(BRACKET) 1

325 630 106 8435 MECH PARTS(BRACKET) 1

326 630 106 8442 MECH PARTS(BRACKET) 1

327 630 106 8473 MECH PARTS(BRACKET) 1

328 630 106 8480 MECH PARTS(BRACKET) 1

329 630 106 8558 MECH PARTS(BRACKET) 1

330 630 106 8565 MECH PARTS(BRACKET) 1

331 630 106 8817 MECH PARTS(BRACKET) 2

332 630 106 8824 MECH PARTS(BRACKET) 2

339 630 106 8572 MECH PARTS(RAIL) 1

366 630 098 1926 MECH PARTS(CAP) 1

381 630 103 4409 NUT 16

390 630 000 7800 BOLT,HEX-SCT 1

392 630 109 4298 BOLT 16

393 630 109 4298 BOLT 1

394 630 109 3680 BOLT 8

396 630 103 4386 BOLT,HEX-SCT(BUTTON HEAD) 8

399 411 141 4404 WASHER V 8X17X1.6 8

MODEL TCM-X100J

0212-002

230

ࡈࠖ࡯࠳ࠠࡖ࡝࠶ࠫࠞࡃ࡯ Feeder Carriage Cover

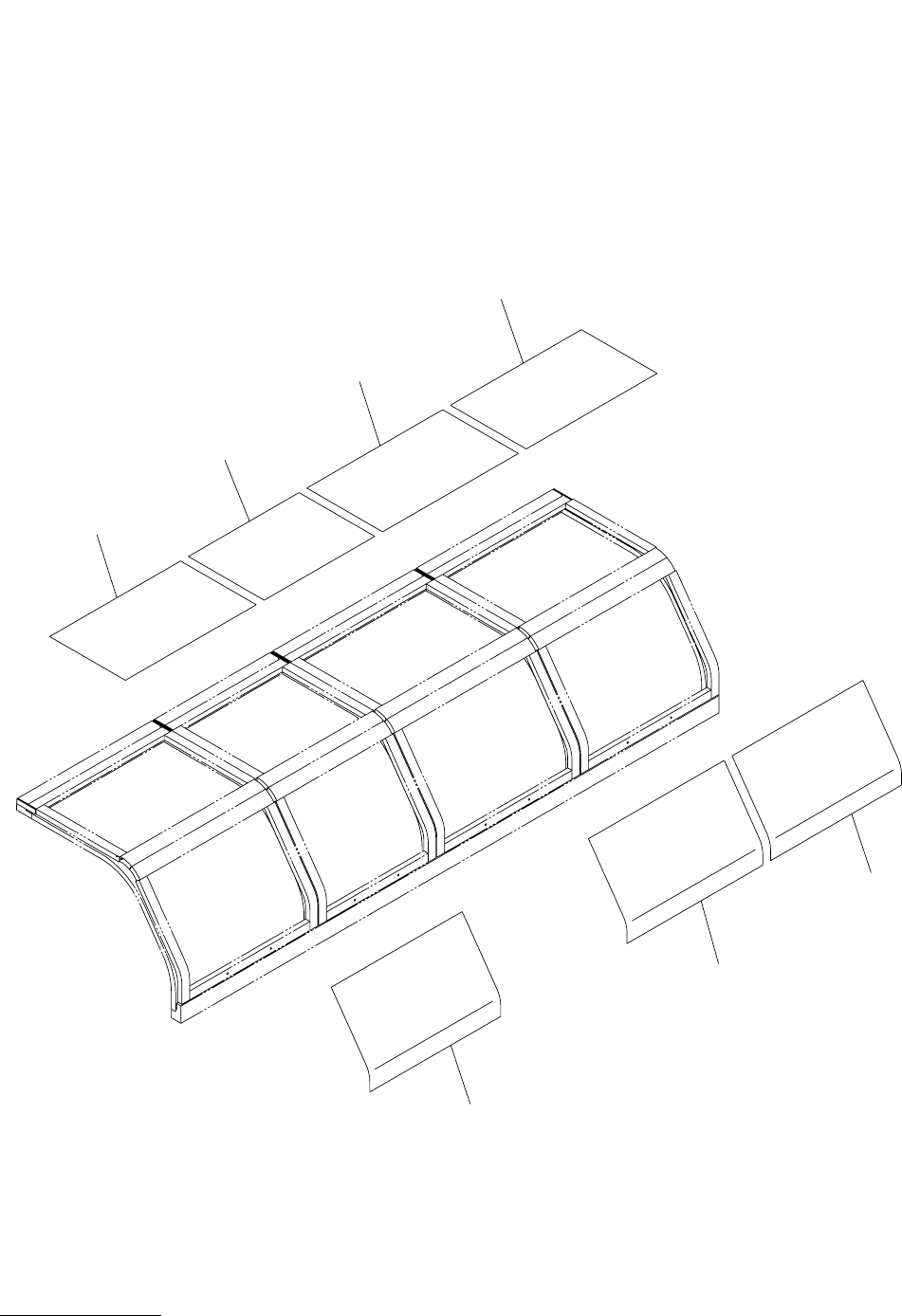

Fig. MC-5 ૞ᬺࠛ࡝ࠕ቟ోᚺࡄࡀ࡞ Work Area Seafty Door Panel

Fig.MC-5

TCM-X100J-002

4797S-002

403

404

405

403

401

402

401

MODEL TCM-X100J

0105-001

Key No. PART No. PART NAME Q’ty REMARKS

NOTE

231

MC-5

401 630 105 4889 COVER 2

402 630 105 4896 COVER 1

403 630 105 4902 COVER 2

404 630 105 4919 COVER 1

405 630 105 4926 COVER 1
