MODEL TCM-X100J 0212-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 233 RA-1 51 630 086 3857 BR EAKER 1 Q200 766RA-010-051 52 630 094 1500 CI RC UI T PR OTE CTO R 1 Q204 766RA-010-052 53 630 083 5441 HA NDLE 1 766…
MODEL TCM-X100J
0212-002
232
৻ᰴ㔚Ḯㇱ MAIN POWER SUPPLY SECTION

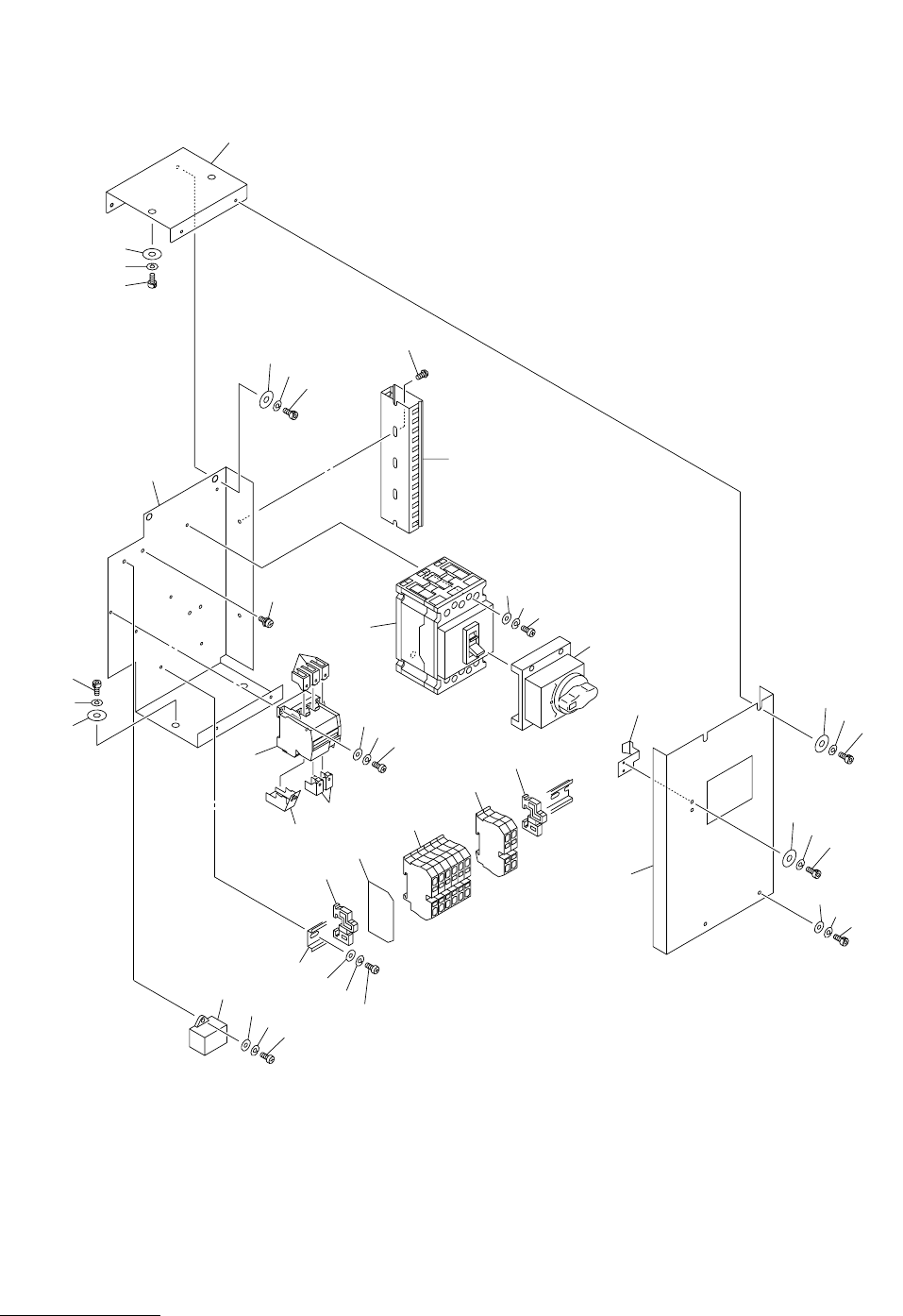

Fig. RA-1 ৻ᰴ㔚Ḯ Main Power Supply
65
60
99
99
97
96
97
96
90
54
89
88
87
89
88
87
89
67
66
51
89
88
81
53
63
62
55
66
64
.
69
.
88
87
52
97
99
96
56
56
57
82
59
58
68
Fig.RA-1
4797L
TCM-X200-002
TCM-X300
4797A-002
86
84
83
95
93
92
85
84
83
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
233
RA-1
51 630 086 3857 BREAKER 1 Q200 766RA-010-051
52 630 094 1500 CIRCUIT PROTECTOR 1 Q204 766RA-010-052
53 630 083 5441 HANDLE 1 766RA-010-053
54 408 031 0004 VARISTOR R.A.V-781BXZ-4 1 766RA-010-054
55 630 092 2875 TERMINAL 2 766RA-010-055
56 630 071 3343 COVER 5 766RA-010-056
57 630 071 3350 COVER 1 766RA-010-057
58 630 105 0652 COVER 1 766RA-010-058
59 630 090 9418 PLATE 1 766RA-010-059
60 630 105 9211 PANEL 1 766RA-010-060
62 630 092 2844 TERMINAL 6 766RA-010-062
63 630 092 2851 ACCESSORY,WIRING 1 766RA-010-063
64 630 092 2868 ACCESSORY,WIRING 3 766RA-010-064
65 630 089 5018 ACCESSORY,WIRING 1 766RA-010-065
66 630 049 3672 BRACKET,WIRING 2 766RA-010-066
67 630 093 0764 RAIL,WIRING 1 766RA-010-067
68 630 105 0669 BRACKET 1 766RA-010-068
69 630 051 1512 ACCESSORY,WIRING 1 766RA-010-069
81 411 042 3001 SCR PAN 4X10 2 766RA-010-081
82 411 113 9109 SCR TRS 5X10 2 766RA-010-082
83 630 000 7626 BOLT,HEX-SCT 4 766RA-010-083
84 411 141 2905 WASHER SPR 4 4 766RA-010-084
85 411 141 4008 WASHER V 4X9X0.8 2 766RA-010-085
86 630 001 0213 WASHER 2 766RA-010-086
87 411 043 5004 SCR PAN 4X8 5 766RA-010-087
88 411 008 1706 WASHER SPR 4 7 766RA-010-088
89 411 119 2104 WASHER V 4X9X0.8 7 766RA-010-089
90 411 174 6604 SCR PAN+SW+W 5X10 1 766RA-010-090
92 630 000 7510 BOLT,HEX-SCT 2 766RA-010-092
93 411 141 2806 WASHER SPR 3 2 766RA-010-093
95 630 001 0206 WASHER 2 766RA-010-095
96 630 000 7756 BOLT,HEX-SCT 6 766RA-010-096
97 411 141 6705 WASHER SPR 5 6 766RA-010-097
99 630 001 0220 WASHER 6 766RA-010-099
MODEL TCM-X100J
0212-002
234
200V 㔚Ḯㇱ 200V POWER SUPPLY SECTION

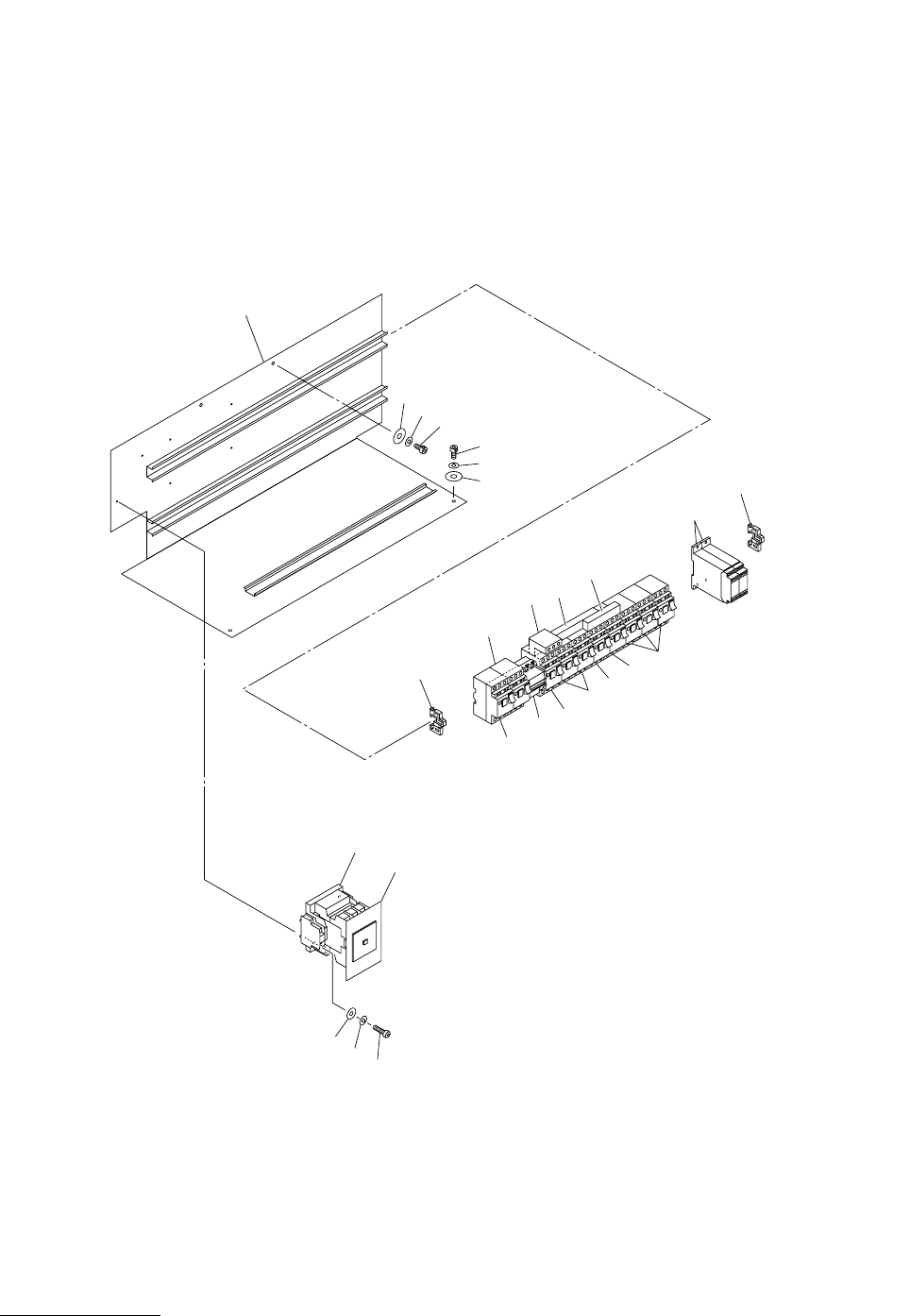

Fig. RC-1 200V 㔚Ḯ㧝 200V Power Supply 1
96
94
93
93
94
96
70
71
91
98
99
60
61
68
60
57
Fig.RC-1
TCM-X100J-002
4797S-002
56
59
54
63
66
62
64
58
65
55
.
72
