MODEL TCM-X100J 0212-001 240 200V 㔚Ḯㇱ 200V POWER SUPPL Y SECTION F i g . R C - 4 200V 㔚Ḯ㧠 200V Power Supply 4 394 396 352 395 399 398 397 351 394 395 396 353 Fig.RC-4 TCM-X100J-001 4797S-002 See Fig.L-1 K ey No .9
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
239
RC-3
252 630 092 2844 TERMINAL 17 766RC-010-252
253 630 092 2851 ACCESSORY,WIRING 1 766RC-010-253
254 630 092 2868 ACCESSORY,WIRING 8 766RC-010-254
255 630 049 3672 BRACKET,WIRING 4 766RC-010-255
259 630 058 8460 ACCESSORY,WIRING 1 766RC-010-259
260 630 083 5465 TERMINAL 9 766RC-010-260
261 630 083 5533 ACCESSORY,WIRING 1 766RC-010-261
262 630 072 8408 ACCESSORY,WIRING 1 766RC-010-262
263 630 083 5564 ACCESSORY,WIRING 2 766RC-010-263
265 630 093 3291 TERMINAL 1 766RC-010-265
267 630 086 3871 FILTER,NOISE 1 ZNF2 766RC-010-267
268 630 049 2125 RELAY 1 K63 766RC-010-268
269 630 007 3911 TIMER 1 KT6 766RC-010-269
270 630 000 4144 SOCKET 2 766RC-010-270
271 630 000 1020 BRACKET,WIRING 1 766RC-010-271
272 630 000 1037 BRACKET,WIRING 1 766RC-010-272
296 411 113 1400 SCR PAN 4X6 4 766RC-010-296
298 411 008 1706 WASHER SPR 4 4 766RC-010-298
299 411 119 2104 WASHER V 4X9X0.8 4 766RC-010-299
MODEL TCM-X100J
0212-001
240

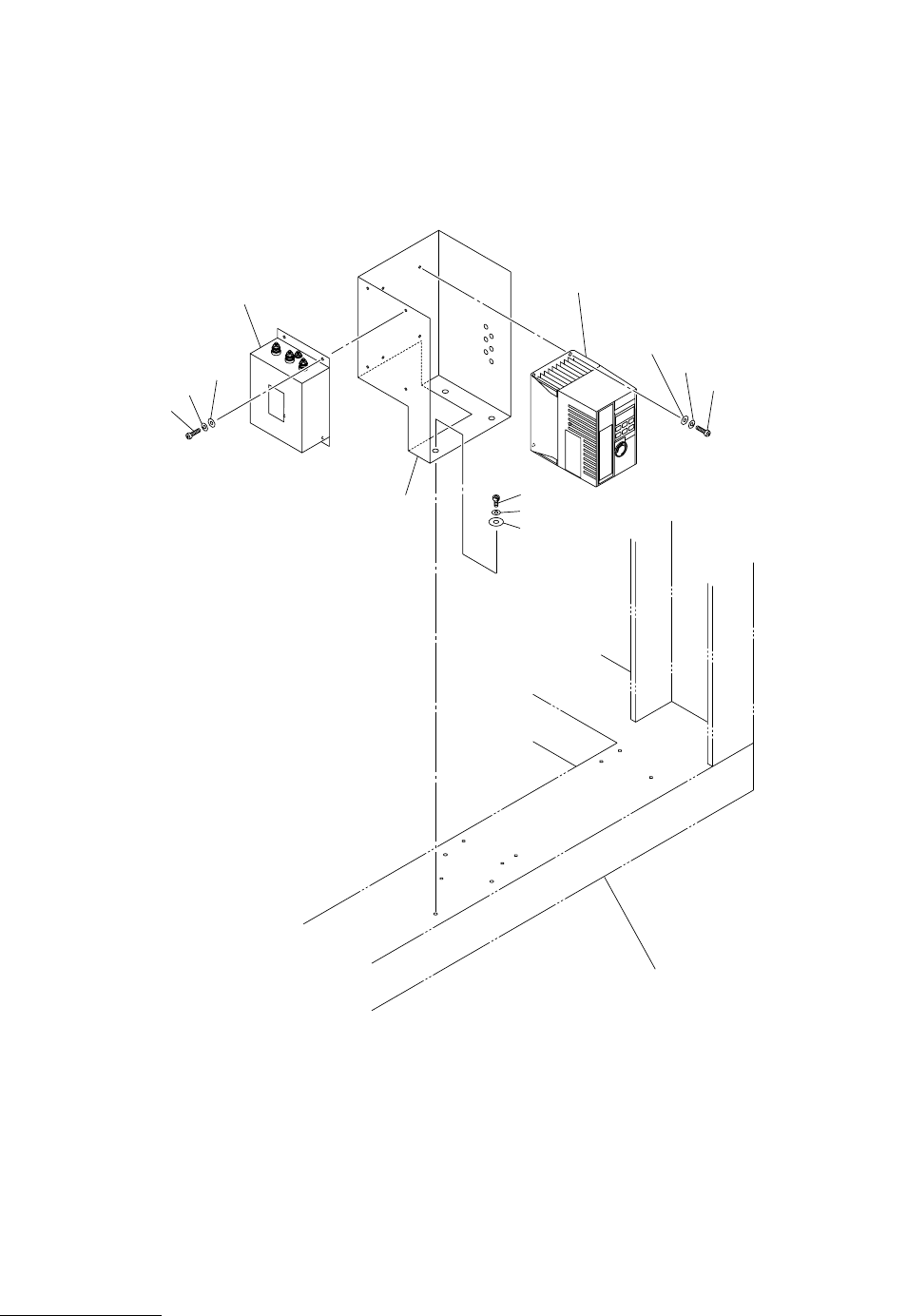

200V 㔚Ḯㇱ 200V POWER SUPPLY SECTION
Fig. RC-4 200V 㔚Ḯ㧠 200V Power Supply 4
394
396
352
395
399
398
397
351
394
395
396
353
Fig.RC-4
TCM-X100J-001
4797S-002
See Fig.L-1
Key No.9
MODEL TCM-X100J
0212-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
241
RC-4
351 630 117 6086 BRACKET 1 766RC-010-351
352 630 116 8814 FILTER,NOISE 1 ZNF3 766RC-010-352
353 630 116 3123 UNIT,DRIVER 1 FVR0.75C11S-2 766RC-010-353
394 411 113 1400 SCR PAN 4X6 8 766RC-010-394
395 411 008 1706 WASHER SPR 4 8 766RC-010-395
396 411 119 2104 WASHER V 4X9X0.8 8 766RC-010-396
397 630 000 7756 BOLT,HEX-SCT 3 766RC-010-397
398 411 141 6705 WASHER SPR 5 3 766RC-010-398
399 630 001 0220 WASHER 3 766RC-010-399
