P-209-001 - 第244页
MODEL TCM-X100J 0105-001 242 100V 㔚Ḯㇱ 100V POWER SUPPL Y SECTION F i g . R E - 1 100V 㔚Ḯ㧝 100V Power Supply 1 96 94 93 62 92 62 94 93 96 92 61 57 53 54 59 55 59 56 59 51 57 99 98 97 52 58 54 59 60
MODEL TCM-X100J
0212-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
241
RC-4
351 630 117 6086 BRACKET 1 766RC-010-351
352 630 116 8814 FILTER,NOISE 1 ZNF3 766RC-010-352
353 630 116 3123 UNIT,DRIVER 1 FVR0.75C11S-2 766RC-010-353
394 411 113 1400 SCR PAN 4X6 8 766RC-010-394
395 411 008 1706 WASHER SPR 4 8 766RC-010-395
396 411 119 2104 WASHER V 4X9X0.8 8 766RC-010-396
397 630 000 7756 BOLT,HEX-SCT 3 766RC-010-397
398 411 141 6705 WASHER SPR 5 3 766RC-010-398
399 630 001 0220 WASHER 3 766RC-010-399
MODEL TCM-X100J
0105-001
242

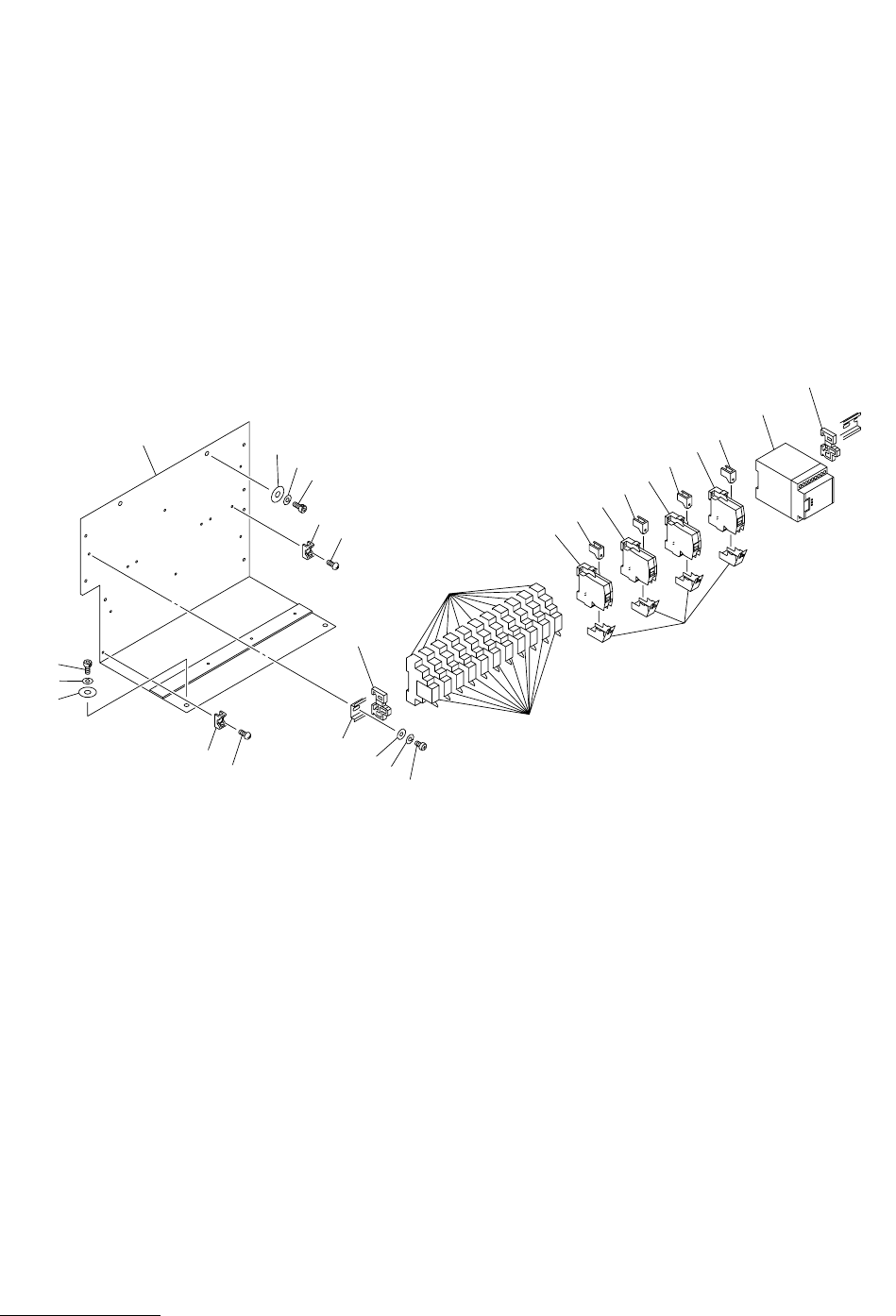

100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION
Fig. RE-1 100V 㔚Ḯ㧝 100V Power Supply 1
96
94
93
62
92
62
94
93
96
92
61
57
53
54
59
55
59
56
59
51
57
99
98
97
52
58
54
59
60
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
243
RE-1
51 630 094 4716 RELAY 1 K10 766RE-010-051
52 630 068 9723 RELAY 11 K29,K9,K30,K35,K36,K31,K34,K37,K38,
K41,K54 766RE-010-052
53 630 049 2064 SOCKET 11 766RE-010-053
54 630 099 1772 CIRCUIT PROTECTOR 2 Q110,Q111 766RE-010-054
55 630 099 1765 CIRCUIT PROTECTOR 1 Q112 766RE-010-055
56 630 094 1463 CIRCUIT PROTECTOR 1 Q113 766RE-010-056
57 630 049 3672 BRACKET,WIRING 2 766RE-010-057
58 630 092 5876 PANEL 1 766RE-010-058
59 630 071 3343 COVER 4 766RE-010-059
60 630 071 3350 COVER 4 766RE-010-060
61 630 091 2135 RAIL,WIRING 1 766RE-010-061
62 630 048 3833 MECH PARTS(MOUNTING BASES 2 766RE-010-062
92 411 113 7501 SCR TRS 4X10 2 766RE-010-092
93 630 000 7756 BOLT,HEX-SCT 4 766RE-010-093
94 411 141 6705 WASHER SPR 5 4 766RE-010-094
96 630 001 0220 WASHER 4 766RE-010-096
97 411 043 5004 SCR PAN 4X8 2 766RE-010-097
98 411 008 1706 WASHER SPR 4 2 766RE-010-098
99 411 119 2104 WASHER V 4X9X0.8 2 766RE-010-099
