MODEL TCM-X100J 0212-002 244 100V 㔚Ḯㇱ 100V POWER SUPPL Y SECTION F i g . R E - 2 100V 㔚Ḯ㧞 100V Power Supply 2 166 158 155 See Fig.RE-1 Key No.58 164 154 158 158 156 . 157 . 160 151 . 162 151 . 159 151 . 161 151 . 152 151…
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
243
RE-1
51 630 094 4716 RELAY 1 K10 766RE-010-051
52 630 068 9723 RELAY 11 K29,K9,K30,K35,K36,K31,K34,K37,K38,
K41,K54 766RE-010-052
53 630 049 2064 SOCKET 11 766RE-010-053
54 630 099 1772 CIRCUIT PROTECTOR 2 Q110,Q111 766RE-010-054
55 630 099 1765 CIRCUIT PROTECTOR 1 Q112 766RE-010-055
56 630 094 1463 CIRCUIT PROTECTOR 1 Q113 766RE-010-056
57 630 049 3672 BRACKET,WIRING 2 766RE-010-057
58 630 092 5876 PANEL 1 766RE-010-058
59 630 071 3343 COVER 4 766RE-010-059
60 630 071 3350 COVER 4 766RE-010-060
61 630 091 2135 RAIL,WIRING 1 766RE-010-061
62 630 048 3833 MECH PARTS(MOUNTING BASES 2 766RE-010-062
92 411 113 7501 SCR TRS 4X10 2 766RE-010-092
93 630 000 7756 BOLT,HEX-SCT 4 766RE-010-093
94 411 141 6705 WASHER SPR 5 4 766RE-010-094
96 630 001 0220 WASHER 4 766RE-010-096
97 411 043 5004 SCR PAN 4X8 2 766RE-010-097
98 411 008 1706 WASHER SPR 4 2 766RE-010-098
99 411 119 2104 WASHER V 4X9X0.8 2 766RE-010-099
MODEL TCM-X100J
0212-002
244

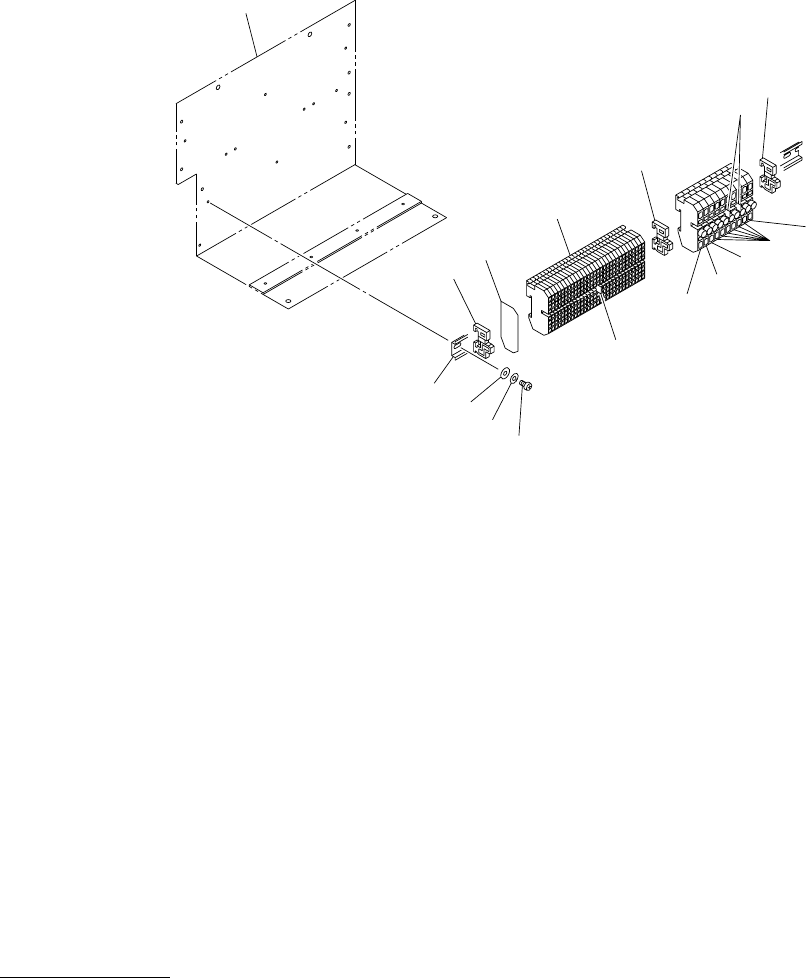

100V 㔚Ḯㇱ 100V POWER SUPPLY SECTION
Fig. RE-2 100V 㔚Ḯ㧞 100V Power Supply 2
166
158
155
See Fig.RE-1
Key No.58
164
154
158
158
156
.
157
.
160
151
.
162
151
.
159
151
.
161
151
.
152
151
.
153
.
199
198
197
165
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
245
RE-2
151 630 083 5496 FUSE HOLDER 10 766RE-010-151
152 630 059 6632 ACCESSORY,WIRING 1 766RE-010-152
153 630 083 5601 ACCESSORY,WIRING 1 766RE-010-153
154 630 083 5465 TERMINAL 30 766RE-010-154
155 630 083 5533 ACCESSORY,WIRING 1 766RE-010-155
156 630 072 8408 ACCESSORY,WIRING 1 766RE-010-156
157 630 058 8460 ACCESSORY,WIRING 3 766RE-010-157
158 630 049 3672 BRACKET,WIRING 3 766RE-010-158
159 423 022 8005 FUSE 250V 1A 1 F104 766RE-010-159
160 423 022 8104 FUSE 250V 2A 1 F100 766RE-010-160
161 423 025 2109 FUSE 250V 6.3A 6 F105,F106,F107,F108,F110,F111
766RE-010-161
162 423 022 8500 FUSE 250V 10A 1 F101 766RE-010-162
164 630 083 5564 ACCESSORY,WIRING 1 766RE-010-164
165 630 058 8415 ACCESSORY,WIRING 2 766RE-010-165
166 630 091 2128 RAIL,WIRING 1 766RE-010-166
197 411 043 5004 SCR PAN 4X8 2 766RE-010-197
198 411 008 1706 WASHER SPR 4 2 766RE-010-198
199 411 119 2104 WASHER V 4X9X0.8 2 766RE-010-199
