P-209-001 - 第264页
MODEL TCM-X100J 0212-002 262 ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS P ARTS-1 Fig. RL-3 ࡄࡢ࠻ࡦࠬ T ransformer Power See Fig.L-1 Key No.9 287 288 289 251
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
261
RL-2
152 630 086 4984 UNIT,DRIVER 2 APMD14(CHW),APMD19(BPC),
#AK-BX22-SAT4 766RL-010-152
153 630 108 4008 UNIT,DRIVER 1 APMD13(TR),#AK-BX580-SAT3
766RL-010-153
154 630 086 7473 UNIT,DRIVER 1 ASMD6(X),SGDH-30AE-R
766RL-010-154
155 630 096 9559 UNIT,DRIVER 1 ASMD7(Y),SGDH-10AE-R
766RL-010-155
157 630 086 8630 UNIT,DRIVER 1 ASMD8(XYTR),SGDH-A5AE-R
766RL-010-157
158 630 105 2083 PLATE 1 766RL-010-158
159 630 105 9495 PLATE 1 766RL-010-159
160 630 102 5704 BRACKET 1 766RL-010-160
181 630 000 7756 BOLT,HEX-SCT 15 766RL-010-181
182 411 141 6705 WASHER SPR 5 15 766RL-010-182
183 630 001 0220 WASHER 15 766RL-010-183
184 411 113 2803 SCR PAN 5X8 4 766RL-010-184
185 411 008 2109 WASHER SPR 5 4 766RL-010-185
186 411 088 1702 WASHER V 5X10X1 4 766RL-010-186
190 411 114 7807 SCR PAN+SW+W 4X10 4 766RL-010-190
193 411 042 3001 SCR PAN 4X10 10 766RL-010-193
194 411 008 1706 WASHER SPR 4 10 766RL-010-194
195 411 119 2104 WASHER V 4X9X0.8 10 766RL-010-195
MODEL TCM-X100J
0212-002
262

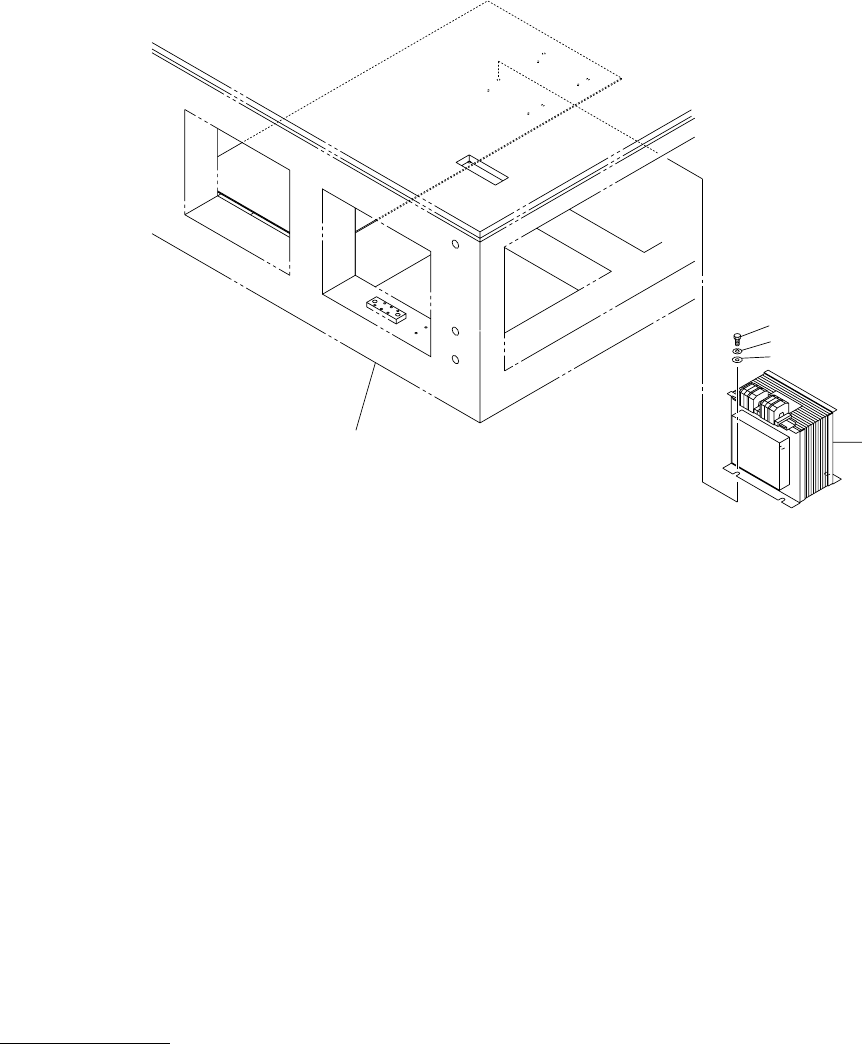

ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1
Fig. RL-3 ࡄࡢ࠻ࡦࠬ Transformer Power
See Fig.L-1
Key No.9
287
288
289
251
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
263
RL-3
251 630 086 2539 TRANSFORMER,POWER 1 T1,#ENT1-2K-TS 766RL-010-251
287 411 140 5303 BOLT HEX 6X12 4 766RL-010-287
288 411 008 2505 WASHER SPR 6 4 766RL-010-288
289 411 110 3100 WASHER F 6X11.5X1.6 4 766RL-010-289
