MODEL TCM-X100J 0212-002 268 ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS P ARTS-1 Fig. RL-6 F ゲ࿁↢ᛶ᛫ F Axis Regenerative Resistance Fig.RL-6 TCM-X100J-002 4797S-002 557 569 553 564 569 556 554 . 552 . 555 568 561 562 565 566 567 551 561 563 562 …
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
267
RL-5
451 630 000 4243 SOCKET 1 766RL-010-451
452 630 092 5975 BOX 1 766RL-010-452
453 630 116 8395 UNIT,DRIVER 2 ASMD2(F1),ASMD5(F2),
#SGDH-30AE-RY343 766RL-010-453
454 630 094 4914 BOX 2 766RL-010-454
455 630 090 1078 P.C.B,MOUNT(P.C.B.) 2 UA54*001*000 0 766RL-010-455
456 630 087 7793 PROGRAM ROM 1 #CPLD CZR12E2 766RL-010-456
457 630 087 7809 PROGRAM ROM 1 #CPLD CZR34 766RL-010-457
458 630 098 4583 COVER 2 766RL-010-458
459 630 093 9422 BRACKET 4 766RL-010-459
460 630 087 4273 ACCESSORY,WIRING 1 766RL-010-460
461 630 111 7607 BRACKET 1 766RL-010-461
462 630 088 4425 ACCESSORY,WIRING 1 766RL-010-462
463 630 048 3833 MECH PARTS(MOUNTING BASES) 2 766RL-010-463
464 630 093 1785 FUSE HOLDER 4 766RL-010-464
465 423 022 8104 FUSE 250V 2A 4 F004,F005,F011,F012
766RL-010-465
466 630 086 8340 RESISTOR,SPECIAL 1 766RL-010-466
467 630 085 4152 RELAY 2 K58,K59 766RL-010-467
468 630 085 8853 WIRE PARTS 4 766RL-010-468
469 630 095 6641 PLATE 2 766RL-010-469
470 630 112 2663 COVER 1 766RL-010-470
477 411 113 2001 SCR PAN 4X14 4 766RL-010-477
478 411 008 1706 WASHER SPR 4 4 766RL-010-478
479 630 000 7756 BOLT,HEX-SCT 1 766RL-010-479
480 411 141 6705 WASHER SPR 5 1 766RL-010-480
482 630 001 0220 WASHER 1 766RL-010-482
483 411 140 3804 BOLT HEX-SCT 4X10 2 766RL-010-483
484 411 141 2905 WASHER SPR 4 2 766RL-010-484
486 630 001 0213 WASHER 2 766RL-010-486
487 411 114 7807 SCR PAN+SW+W 4X10 2 766RL-010-487
488 411 113 2803 SCR PAN 5X8 10 766RL-010-488
489 411 008 2109 WASHER SPR 5 10 766RL-010-489
490 411 088 1702 WASHER V 5X10X1 8 766RL-010-490
491 411 140 8007 SCR TRS 5X6 14 766RL-010-491
492 411 051 1708 SCR TRS 4X6 16 766RL-010-492
493 411 162 1604 SCR PAN 3X20 10 766RL-010-493
494 411 119 1909 WASHER V 3X7X0.5 22 766RL-010-494
495 411 086 4408 WASHER SPR 3 12 766RL-010-495
496 411 113 9109 SCR TRS 5X10 2 766RL-010-496
497 411 054 6809 NUT HEX 3 2 766RL-010-497
498 411 113 0700 SCR PAN 3X16 2 766RL-010-498
MODEL TCM-X100J
0212-002
268

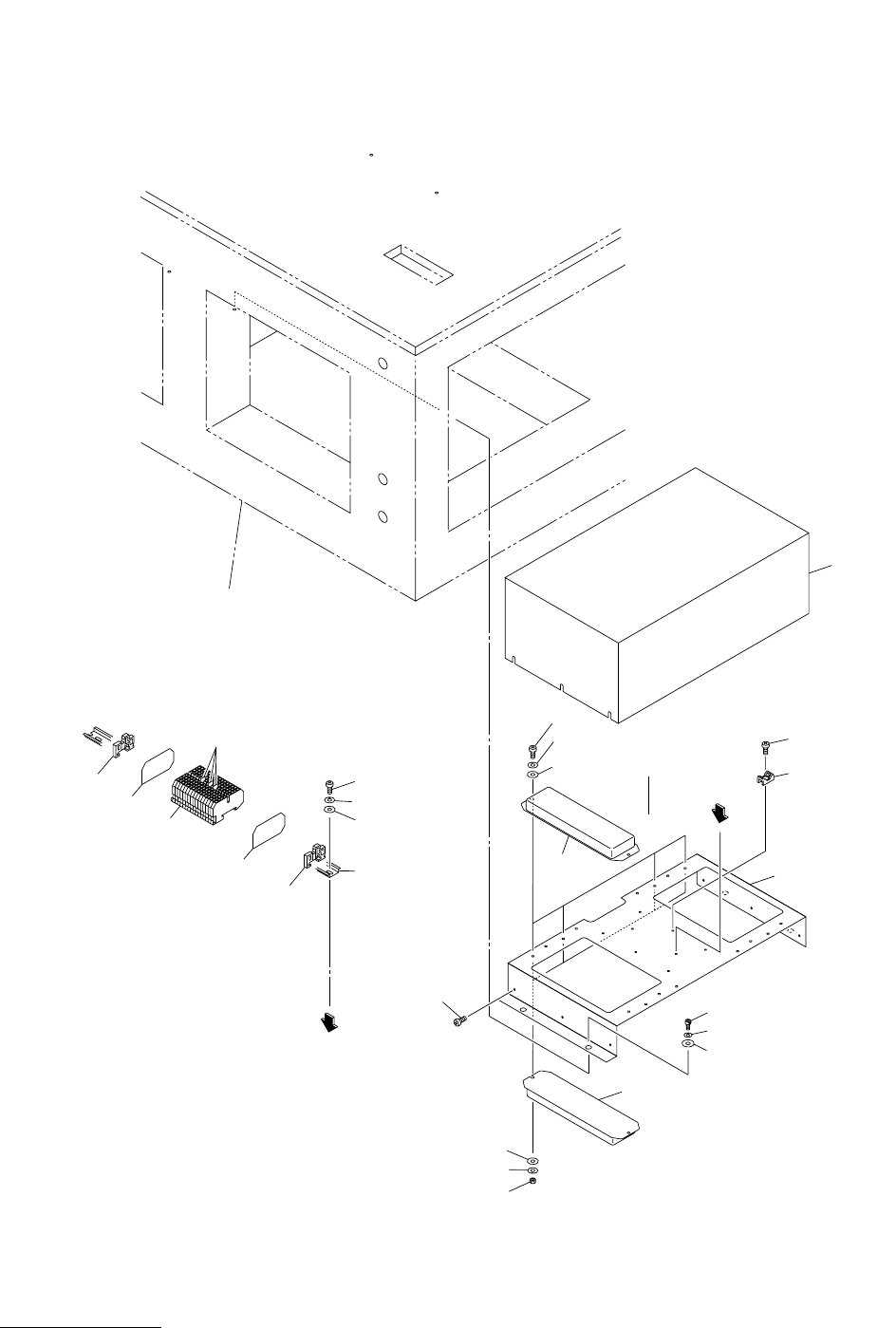

ᯏ᪾ᑫࠅ㧝 MISCELLANEOUS PARTS-1
Fig. RL-6 F ゲ࿁↢ᛶ᛫ F Axis Regenerative Resistance
Fig.RL-6
TCM-X100J-002
4797S-002
557
569
553
564
569
556
554
.
552
.
555
568
561
562
565
566
567
551
561
563
562
551
558
570
564
559
562
561
560
553
See Fig.L-1
Key No.9
A
A
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
269
RL-6
551 630 094 7250 RESISTOR,SPECIAL 8 766RL-010-551
552 630 083 5458 TERMINAL 16 766RL-010-552
553 630 083 5502 ACCESSORY,WIRING 2 766RL-010-553
554 630 072 8408 ACCESSORY,WIRING 2 766RL-010-554
555 630 083 5564 ACCESSORY,WIRING 3 766RL-010-555
556 630 058 8460 ACCESSORY,WIRING 2 766RL-010-556
557 630 089 6510 RAIL,WIRING 1 766RL-010-557
558 630 097 1064 PANEL 1 766RL-010-558
559 630 097 1187 COVER 1 766RL-010-559
560 411 113 2209 SCR PAN 4X16 8 766RL-010-560
561 411 008 1706 WASHER SPR 4 18 766RL-010-561
562 411 119 2104 WASHER V 4X9X0.8 18 766RL-010-562
563 411 054 8506 NUT HEX 4 8 766RL-010-563
564 411 051 1708 SCR TRS 4X6 6 766RL-010-564
565 630 000 7763 BOLT,HEX-SCT 4 766RL-010-565
566 411 141 6705 WASHER SPR 5 4 766RL-010-566
567 630 001 0220 WASHER 4 766RL-010-567
568 630 000 7602 BOLT,HEX-SCT 2 766RL-010-568
569 630 049 3672 BRACKET,WIRING 2 766RL-010-569
570 630 048 3833 MECH PARTS(MOUNTING BASES 6 766RL-010-570
