P-209-001 - 第277页
MODEL TCM-X100J 0105-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 275 RM-3 25 2 630 086 5707 UN IT ,I/O 1 ET C2 ,#S N- 4016-STT(6F) 766RM-010-252 25 3 630 086 5714 UN IT ,I/O 1 E TC 1, #S N-4 01 6- SR T( 6F ) 76…
MODEL TCM-X100J
0212-002
274
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

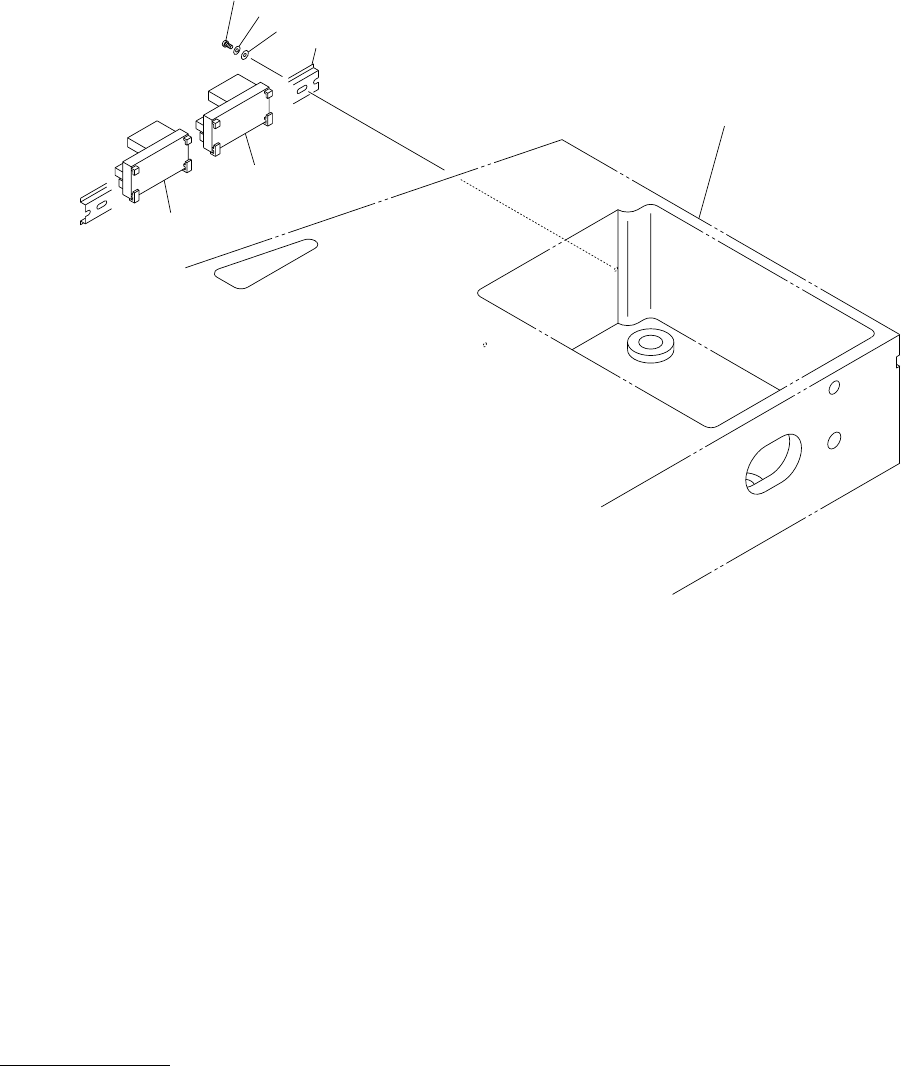

Fig. RM-3 ജ࠲ࡒ࠽࡞ Input Terminals
See Fig.L-1
Key No.12
297
298
299
256
252
253
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
275
RM-3
252 630 086 5707 UNIT,I/O 1 ETC2,#SN-4016-STT(6F)
766RM-010-252
253 630 086 5714 UNIT,I/O 1 ETC1,#SN-4016-SRT(6F)
766RM-010-253
256 630 089 6503 RAIL,WIRING 1 766RM-010-256
297 411 042 3001 SCR PAN 4X10 2 766RM-010-297
298 411 008 1706 WASHER SPR 4 2 766RM-010-298
299 411 119 2104 WASHER V 4X9X0.8 2 766RM-010-299
MODEL TCM-X100J
0212-002
276
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

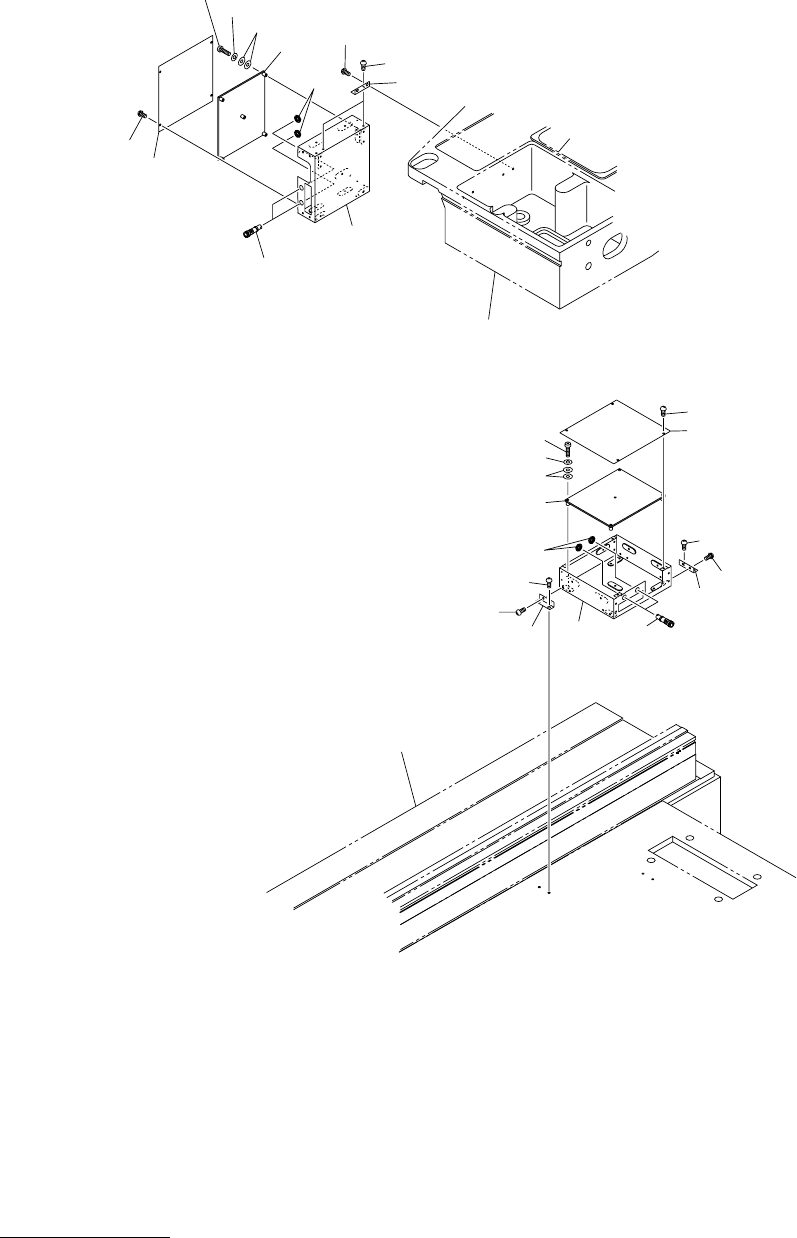

Fig. RM-4 XY ၮ᧼ޔH1 ၮ᧼ XY P.C.B., H1 P.C.B.
397
398
399
353
357
396
356
351
395
396
352
355
.
358
357
.
354
357
353
399
398
397
.
358
395
396
357
356
356
351
396
395
396
See Fig.L-1
Key No.12
See Fig.L-1
Key No.9
352
.
