MODEL TCM-X100J 0212-002 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 279 RM-5 45 1 630 083 5465 TE RM I NA L 8 766RM-010-451 45 2 630 083 5489 TE RM I NA L 4 766RM-010-452 45 3 630 083 5533 AC C ESSORY ,WIRING 1 7 …
MODEL TCM-X100J
0212-002
278
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2
Fig. RM-5
ࠨࠗࠢ࡞ࠞ࠙ࡦ࠲ޔ࠲ࡒ࠽࡞
Cycle Counter, Terminals
456
499
498
497
454
494
495
496
See Fig.L-1
Key No.12
See Fig.MA-2
Key No.131
464
463
451
.
457
.
455
458
452
454
453
MODEL TCM-X100J
0212-002
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
279
RM-5
451 630 083 5465 TERMINAL 8 766RM-010-451
452 630 083 5489 TERMINAL 4 766RM-010-452
453 630 083 5533 ACCESSORY,WIRING 1 766RM-010-453
454 630 049 3672 BRACKET,WIRING 2 766RM-010-454
455 630 058 8460 ACCESSORY,WIRING 1 766RM-010-455
456 630 093 0764 RAIL,WIRING 1 766RM-010-456
457 630 072 8408 ACCESSORY,WIRING 1 766RM-010-457
458 630 083 5564 ACCESSORY,WIRING 2 766RM-010-458
463 630 000 5059 COUNTER 1 766RM-010-463
464 630 110 7110 BRACKET 1 766RM-010-464
494 630 000 7732 BOLT,HEX-SCT 2 766RM-010-494
495 411 141 6705 WASHER SPR 5 2 766RM-010-495
496 630 001 0220 WASHER 2 766RM-010-496
497 411 042 3001 SCR PAN 4X10 2 766RM-010-497
498 411 008 1706 WASHER SPR 4 2 766RM-010-498
499 411 119 2104 WASHER V 4X9X0.8 2 766RM-010-499
MODEL TCM-X100J
0212-002
280
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

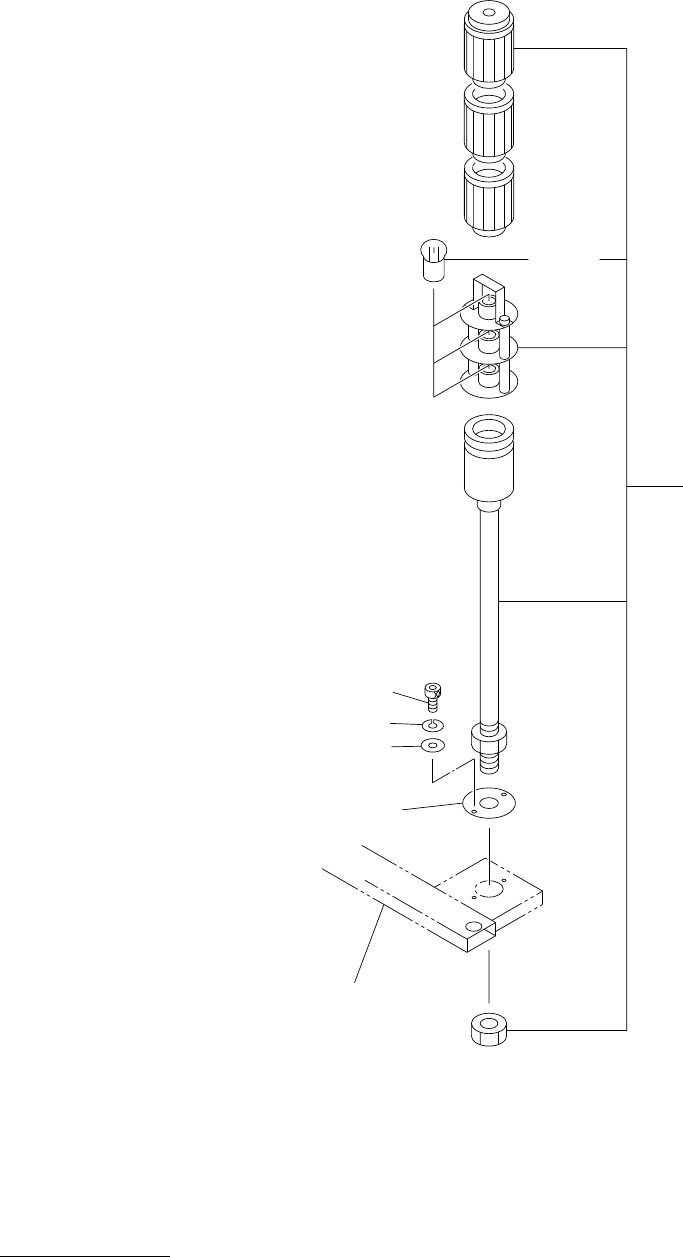

Fig. RM-6 ࠲ࡢἮ Light Tower
551
551-10
505
504
503
502
See Fig.MA-2
Key No.109
