MODEL TCM-X100J 0212-001 282 ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS P ARTS-2 Fig. RM-7 H ゲ࿁↢ᛶ᛫ H Axis Regenerative Resistance Fig.RM-7 TCM-X200 4797L TCM-X300 4797A See Fig.RM-1 Key No.64 See Fig.RM-1 Key No.99 697 651 698 699 652
MODEL TCM-X100J
0105-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
281
RM-6
502 630 035 2658 BRACKET 1 766RM-010-502
503 411 088 1702 WASHER V 5X10X1 2 766RM-010-503
504 411 008 2109 WASHER SPR 5 2 766RM-010-504
505 411 140 5105 BOLT HEX 5X14 2 766RM-010-505
551 630 093 6360 ASSY,PILOT LAMP 1 766RM-010-551
551 -10 630 000 1983 LAMP 3 H1,H2,H3
MODEL TCM-X100J
0212-001
282
ᯏ᪾ᑫࠅ㧞 MISCELLANEOUS PARTS-2

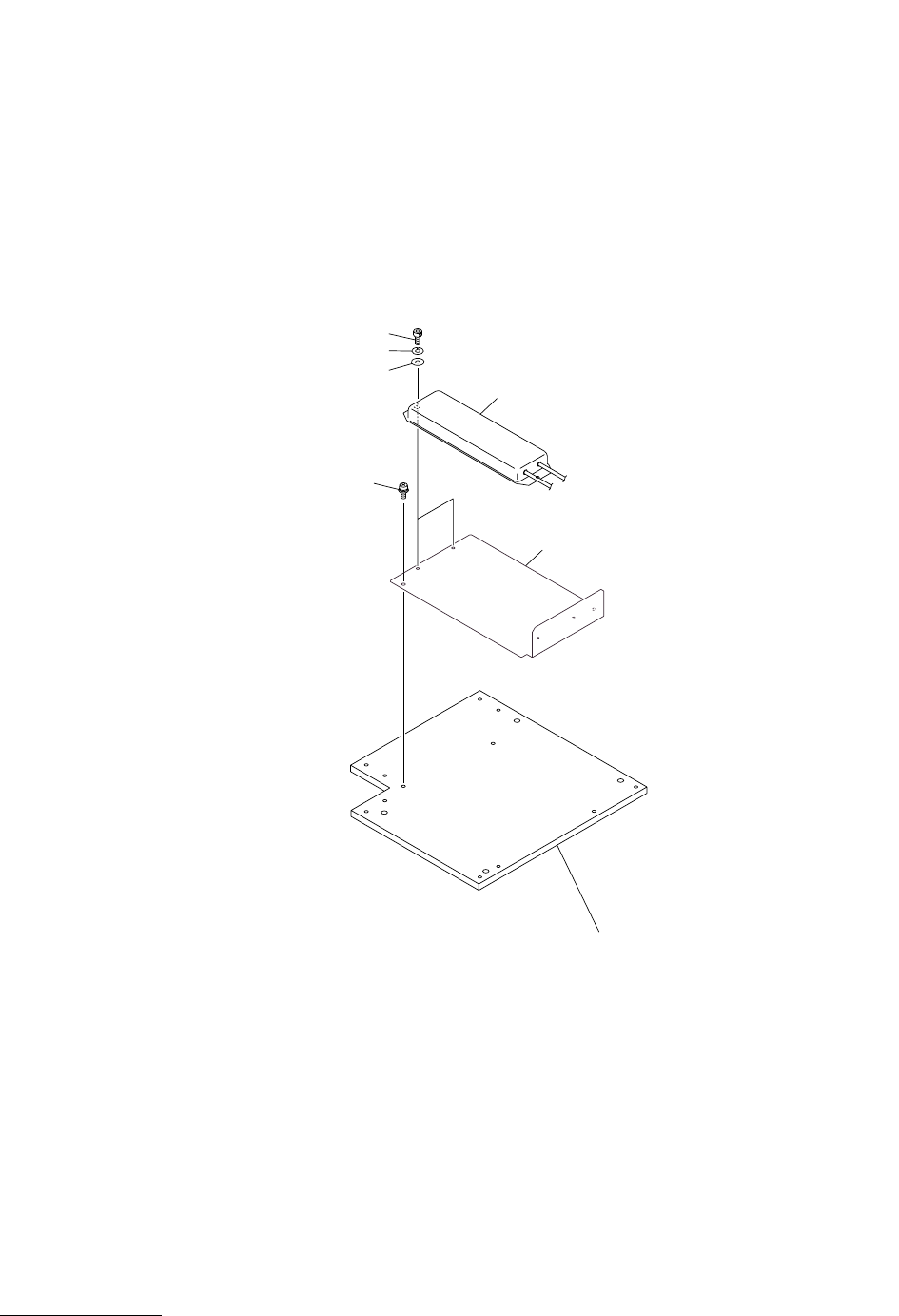

Fig. RM-7 H ゲ࿁↢ᛶ᛫ H Axis Regenerative Resistance
Fig.RM-7
TCM-X200
4797L
TCM-X300
4797A
See Fig.RM-1
Key No.64
See Fig.RM-1
Key No.99
697
651
698
699
652
MODEL TCM-X100J
0212-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
283
RM-7
651 630 114 3996 ASSY,RESISTOR,SPECIAL 2 766RM-010-651
652 630 114 3170 PLATE 1 766RM-010-652
697 630 000 7602 BOLT,HEX-SCT 4 766RM-010-697
698 411 141 2905 WASHER SPR 4 4 766RM-010-698
699 411 141 4008 WASHER V 4X9X0.8 4 766RM-010-699
