P-209-001 - 第290页
MODEL TCM-X100J 0212-001 288 ࠤࡉ࡞㈩✢ CABLE WIRING Fig. SB-2 F1,2 ޔ F3,4 ၮ᧼ޔ XY ၮ᧼ F1,2,F3,4 P .C.B., XY P .C.B. Fig.SB-2 161 168 171 164 166 176 178 154 151 179 172 179 182 188 190 183 189 191 161 152 162 161 153 See Fig.…
MODEL TCM-X100J
0212-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
287
SB-1
51 630 086 8722 CORD 1 XCN7- 766SB-010-051
52 630 087 0022 CORD (CRT 15P-15P ST2M) 1 XCN5- 766SB-010-052
53 630 087 0046 CORD (RS232C 9P-9P ST2M) 1 XCN1- 766SB-010-053
54 630 088 7877 CORD (SCJI 1.5M) 1 XCN3- 766SB-010-054
55 630 085 3414 CORD 1 XCN28/29- 766SB-010-055
56 630 097 0654 CORD(F-CAM) 1 XCN31- 766SB-010-056
57 630 097 0661 CORD(SIO) 1 XCN26- 766SB-010-057
58 630 097 0685 CORD(MON) 1 XCN32- 766SB-010-058
59 630 097 1880 CORD(LIGHT) 3 CN1-,CN2-,CN3-, 766SB-010-059
60 630 106 7865 CORD (REC-PIO 2.5M) 1 XCN25- 766SB-010-060
66 630 109 3413 ASSY,CORD (X200SB105) 1 XCN35-XCN80 766SB-010-066
MODEL TCM-X100J
0212-001
288

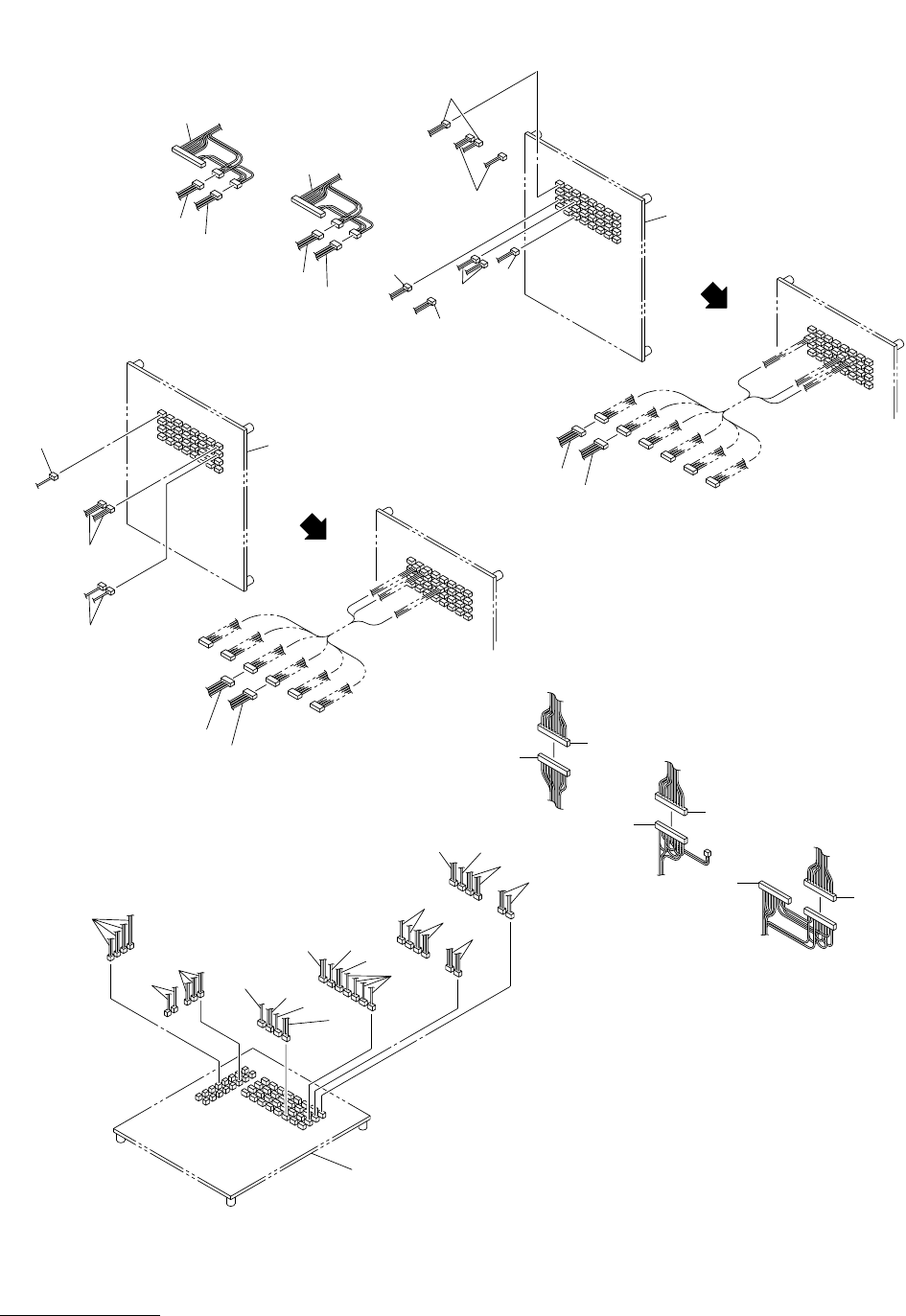

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-2
F1,2ޔF3,4 ၮ᧼ޔXY ၮ᧼
F1,2,F3,4 P.C.B., XY P.C.B.
Fig.SB-2
161
168
171
164
166
176
178
154
151
179
172
179
182
188
190
183
189
191
161
152
162
161
153
See Fig.RL-5
Key No.455
F1,2 PCB
See Fig.RM-4
Key No.353
153
TCM-X100J
4797S
193
187
194
190
188
184
182
186
187
185
187
187
184
190
192
188
185
182
153
See Fig.RL-5
Key No.455
F3,4 PCB
XY PCB
MODEL TCM-X100J
0212-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
289
SB-2
151 630 109 3604 ASSY,CORD (X200SB300-7) 1 -BPH21 766SB-010-151
152 630 109 3611 ASSY,CORD (X200SB300-8) 1 -BPH26 766SB-010-152
153 630 092 3650 ASSY,CORD(X200SB301) 1 XCN05,09,25(F1,2)- 766SB-010-153
154 630 092 3599 ASSY,CORD(X200SB300-1) 1 -BPH20 766SB-010-154
161 630 092 3681 ASSY,CORD(X200SB303) 1 XCN08,12,28(F1,2)- 766SB-010-161
162 630 092 3643 ASSY,CORD(X200SB300-6) 1 -BPH27 766SB-010-162
164 630 109 3628 ASSY,CORD (3.5M) 1 -SPB31(LED31) 766SB-010-164
166 630 109 3628 ASSY,CORD (3.5M) 1 -SQ04(YSOL05) 766SB-010-166
171 630 092 3919 ASSY,CORD(X200SB313) 1 XCN34(F1,2)- 766SB-010-171
172 630 092 3926 ASSY,CORD(X200SB314) 1 XCN05,06(F3,4)- 766SB-010-172
176 630 109 3628 ASSY,CORD (3.5M) 1 -SPB36(LED36) 766SB-010-176
178 630 109 3628 ASSY,CORD (3.5M) 1 -SQ06(YSOL08) 766SB-010-178
179 630 092 3902 ASSY,CORD(X200SB312) 1 XCN12,13,14(F3,4)- 766SB-010-179
182 630 092 3476 ASSY,CORD(X200SB200) 1 XCN05,06,31(XY)- 766SB-010-182
183 630 092 3582 ASSY,CORD(X200SB211) 1 (XNC101-J)- 766SB-010-183
184 630 092 3483 ASSY,CORD(200SB201) 1 XCN09,10,17,18(XY)- 766SB-010-184
185 630 092 3490 ASSY,CORD(X200SB202) 1 XCN25,32(XY)- 766SB-010-185
186 630 092 3506 ASSY,CORD(X200SB203) 1 XCN27(XY)- 766SB-010-186
187 630 092 3513 ASSY,CORD(X200SB204) 1 XCN19,20,23,21,22,24,53,52,26(XY)-
766SB-010-187
188 630 092 3520 ASSY,CORD(X200SB205) 1 XCN11,33(XY)- 766SB-010-188
189 630 091 3637 ASSY,CORD (X200F11) 1 (XNC71-F)- 766SB-010-189
190 630 092 3537 ASSY,CORD(X200SB206) 1 XCN12,13,14(XY)- 766SB-010-190
191 630 091 3620 ASSY,CORD (X200F10) 1 (XNC72-F)- 766SB-010-191
192 630 092 3544 ASSY,CORD(X200SB207) 1 XCN34(XY)- 766SB-010-192
193 630 092 3551 ASSY,CORD(X200SB208) 1 XCN41,40,39,38(XY)- 766SB-010-193
194 630 092 3568 ASSY,CORD(X200SB209) 1 XCN50,49,48(XY)- 766SB-010-194
