MODEL TCM-X100J 0212-001 Key No. P AR T No. P AR T NAME Q’ ty REMARKS NOTE 299 SB-8 75 1 630 092 3988 ASSY ,CORD(X200SB100-1) 1 XCN60(X)-XCN61(Y) 766SB-010-751 75 2 630 092 3995 ASSY ,CORD(X200SB100-2) 1 XCN62(Y)-XCN69(X…
MODEL TCM-X100J
0212-001
298

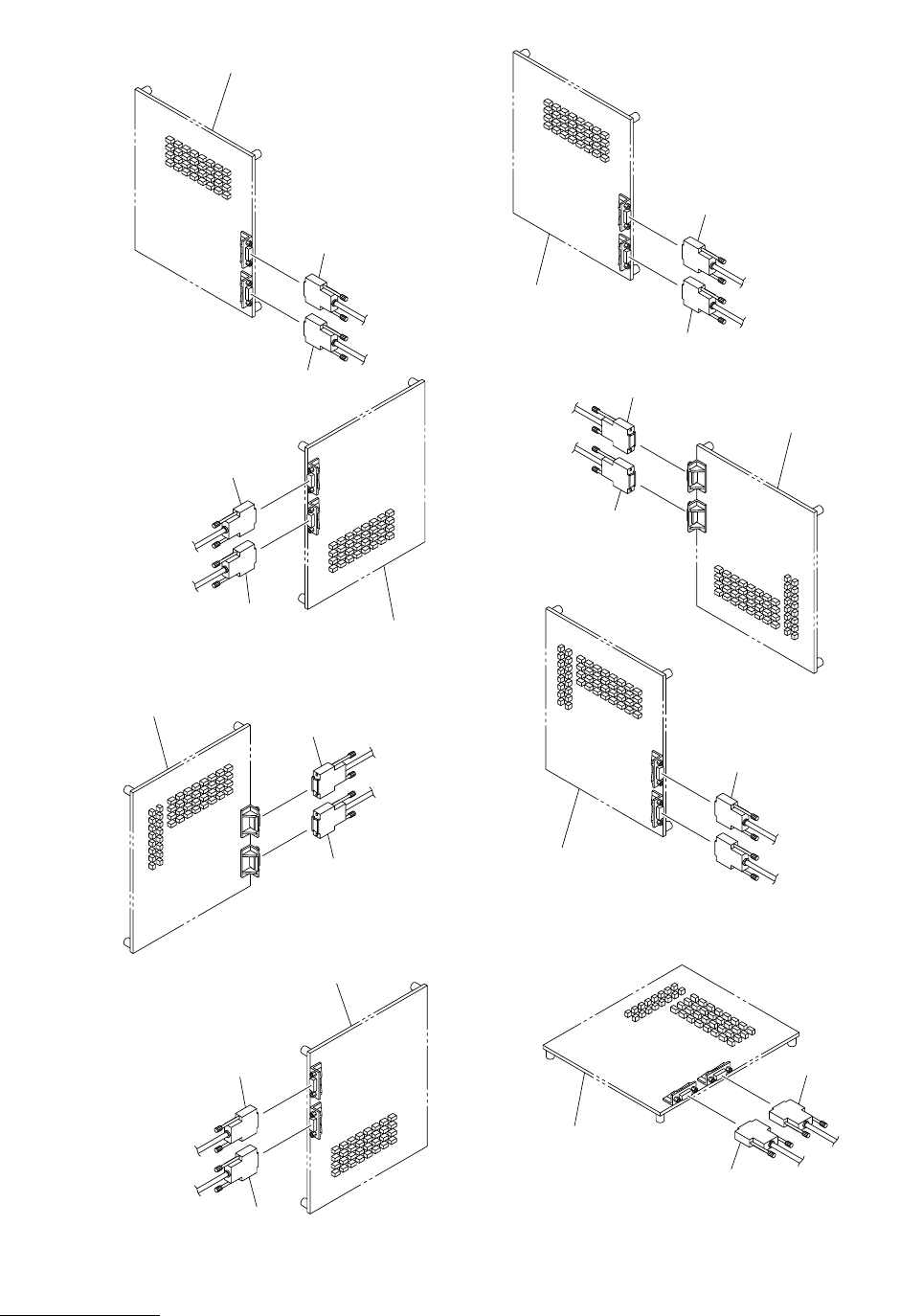

ࠤࡉ࡞㈩✢ CABLE WIRING
Fig. SB-8 ᧄㇱ㧞 Main Body Section-2
Sheet-3
Fig.SB-8
Sheet-3
TCM-X200-002
4797A-002
763
773
765
766
766
761
762
761
767
772
765
762
764
764
763
See Fig.RL-5
Key No.455
F3,4 PCB
F1,2 PCB
I/F PCB
H2 PCB
H1 PCB
T1 PCB
H3 PCB
XY PCB
See Fig.RL-5
Key No.455
See Fig.RL-4
Key No.353
See Fig.RM-1
Key No.66
See Fig.RM-1
Key No.66
See Fig.RM-4
Key No.353
See Fig.RG-1
Key No.63
See Fig.RM-4
Key No.353
MODEL TCM-X100J
0212-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
299
SB-8
751 630 092 3988 ASSY,CORD(X200SB100-1) 1 XCN60(X)-XCN61(Y) 766SB-010-751
752 630 092 3995 ASSY,CORD(X200SB100-2) 1 XCN62(Y)-XCN69(XYTR)
766SB-010-752
753 630 092 4008 ASSY,CORD(X200SB100-3) 1 XCN70(XYTR)-XCN63(H)
766SB-010-753
754 630 092 4015 ASSY,CORD(X200SB100-4) 1 XCN64(H)-XCN65(CZ)
766SB-010-754
755 630 092 4022 ASSY,CORD(X200SB100-5) 1 XCN66(CZ)-XCN67(MZ)
766SB-010-755
756 630 111 0721 ASSY,CORD(X100SB100-6) 1 XCN52(F1)-XCN57(F2)
766SB-010-756
759 630 092 4060 ASSY,CORD(X200SB100-9) 1 XCN59(X)-XCN22(UA57)
766SB-010-759
760 630 092 4077 ASSY,CORD(X200SB100-10) 1 XCN51(F1)-XCN23(UA57)
766SB-010-760
761 630 092 4084 ASSY,CORD(X200SB101-1) 1 XCN321(T1)-XCN300(XY)
766SB-010-761
762 630 092 4091 ASSY,CORD(X200SB101-2) 1 XCN301(XY)-XCN322(F3,4)
766SB-010-762
763 630 092 4107 ASSY,CORD(X200SB101-3) 1 XCN323(F3,4)-XCN324(F1,3)
766SB-010-763
764 630 092 4114 ASSY,CORD(X200SB101-4) 1 XCN325(F1,2)-XCN326(I/F)
766SB-010-764
765 630 092 4121 ASSY,CORD(X200SB101-5) 1 XCN307(H3)-XCN308(H2)
766SB-010-765
766 630 092 4138 ASSY,CORD(X200SB101-6) 1 XCN309(H2)-XCN310(H1)
766SB-010-766
767 630 092 4145 ASSY,CORD(X200SB102) 1 XCN320(T1)-XCN20(UA51)
766SB-010-767
768 630 092 4169 ASSY,CORD(X200SB104) 1 XCN12- 766SB-010-768
769 630 092 4176 ASSY,CORD(X200SB105) 1 XCN13- 766SB-010-769
770 630 092 4183 ASSY,CORD(X200SB105) 1 XCN34- 766SB-010-770
771 630 092 4206 ASSY,CORD(X200SB108) 1 ASMD7(Y)CN1- 766SB-010-771
772 630 092 4213 ASSY,CORD(X200SB109-1) 1 XCN311(H1)- 766SB-010-772
773 630 092 4220 ASSY,CORD(X200SB109-2) 1 XCN327(I/F)- 766SB-010-773
774 630 092 4237 ASSY,CORD(X200SB110) 1 XCN8-XCN184 766SB-010-774
775 630 092 4244 ASSY,CORD(X200SB120-1) 1 ASMD1(H)CN1- 766SB-010-775
776 630 092 4251 ASSY,CORD(X200SB120-2) 1 ASMD2(F1)CN1- 766SB-010-776
779 630 092 4282 ASSY,CORD(X200SB120-5) 1 ASMD5(F2)CN1- 766SB-010-779
780 630 092 4299 ASSY,CORD(X200SB120-6) 1 ASMD6(X)CN1- 766SB-010-780
781 630 092 4305 ASSY,CORD(X200SB120-7) 1 ASMD9(CZ)CN1- 766SB-010-781
782 630 092 4312 ASSY,CORD(X200SB120-8) 1 ASMD10(MZ)CN1- 766SB-010-782
783 630 092 4329 ASSY,CORD(X200SB120-9) 1 ASMD8(XYTR)CN1- 766SB-010-783
784 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN82-XCN81 766SB-010-784
785 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN84-XCN83 766SB-010-785
786 630 109 3352 ASSY,CORD (AE-LINK 2.0M) 1 XCN88-XCN85 766SB-010-786
787 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN90-XCN89 766SB-010-787
788 630 109 3338 ASSY,CORD (AE-LINK 3.5M) 1 XCN92-XCN91 766SB-010-788
789 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN94-XCN93 766SB-010-789
790 630 109 3345 ASSY,CORD (AE-LINK 3.0M) 1 XCN96-XCN95 766SB-010-790
MODEL TCM-X100J
0212-001
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
300
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
SB-8
791 630 110 1521 ASSY,CORD (AE-LINK 0.3M) 1 XCN98-XCN97 766SB-010-791
