1 - 6 S tudent Guide SIPLACE X 1 Operational safety Edition 09/2005 6 1.2.1.5 W arning label W205 on the t ape cutter Fig. 1.2 - 2 Warning label W205 on the bottom of the tape cutter WA R N I N G 1 If you wish to do work…
1 - 5
Student Guide SIPLACE X
Edition 09/2005 1 Operational safety
5
1.2.1.4 Warning label W202 on the gantries
Fig. 1.2 - 1 Warning label W202 on the gantries, item no. 03009341-01
WARNING!
Powerful permanent magnetic fields inside the machine
RISK OF DEATH!
Risk of death for persons with active implants (e.g. pacemakers, insulin pumps, defibrillators).
DANGER OF CRUSHING!
Danger of crushing for persons with passive metal implants (e.g. plates, screws).
Do not reach into the machine or bend towards it when the protective covers are open.
Do not bring any metal objects into the area.
1 - 6
Student Guide SIPLACE X
1 Operational safety Edition 09/2005
6
1.2.1.5 Warning label W205 on the tape cutter

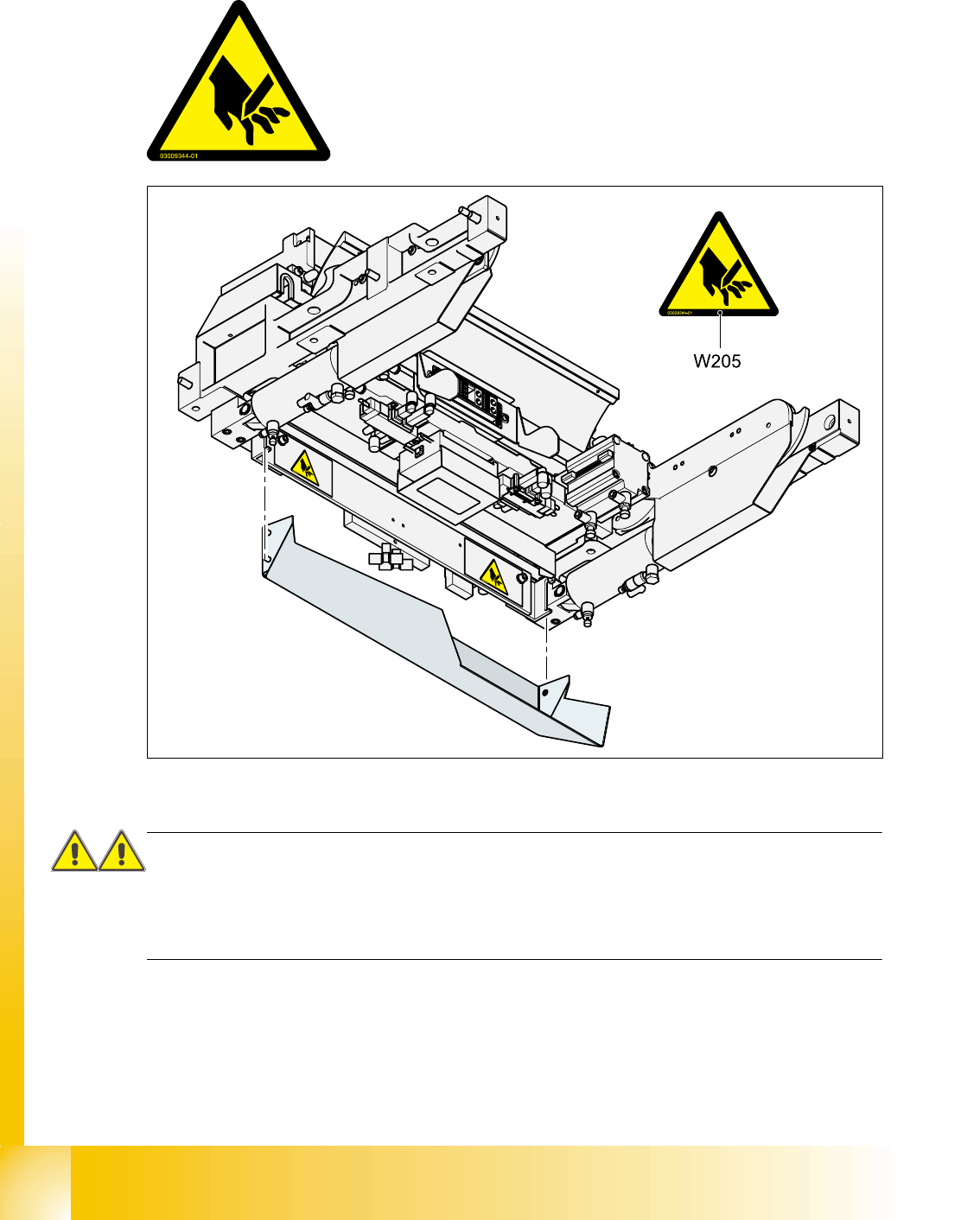

Fig. 1.2 - 2 Warning label W205 on the bottom of the tape cutter
WARNING 1
If you wish to do work on the tape cutter, you must disconnect the machine from the mains sup-
ply and the compressed air supply.
Wait until the operating pressure has dropped to 0 MPa.
RISK OF CUTTING!
Danger of cutting is present even when the
machine is switched off
1 - 7
Student Guide SIPLACE X
Edition 09/2005 1 Operational safety
7
1.2.1.6 Warning label W206
1.2.1.7 Warning label W207 on the axis unit

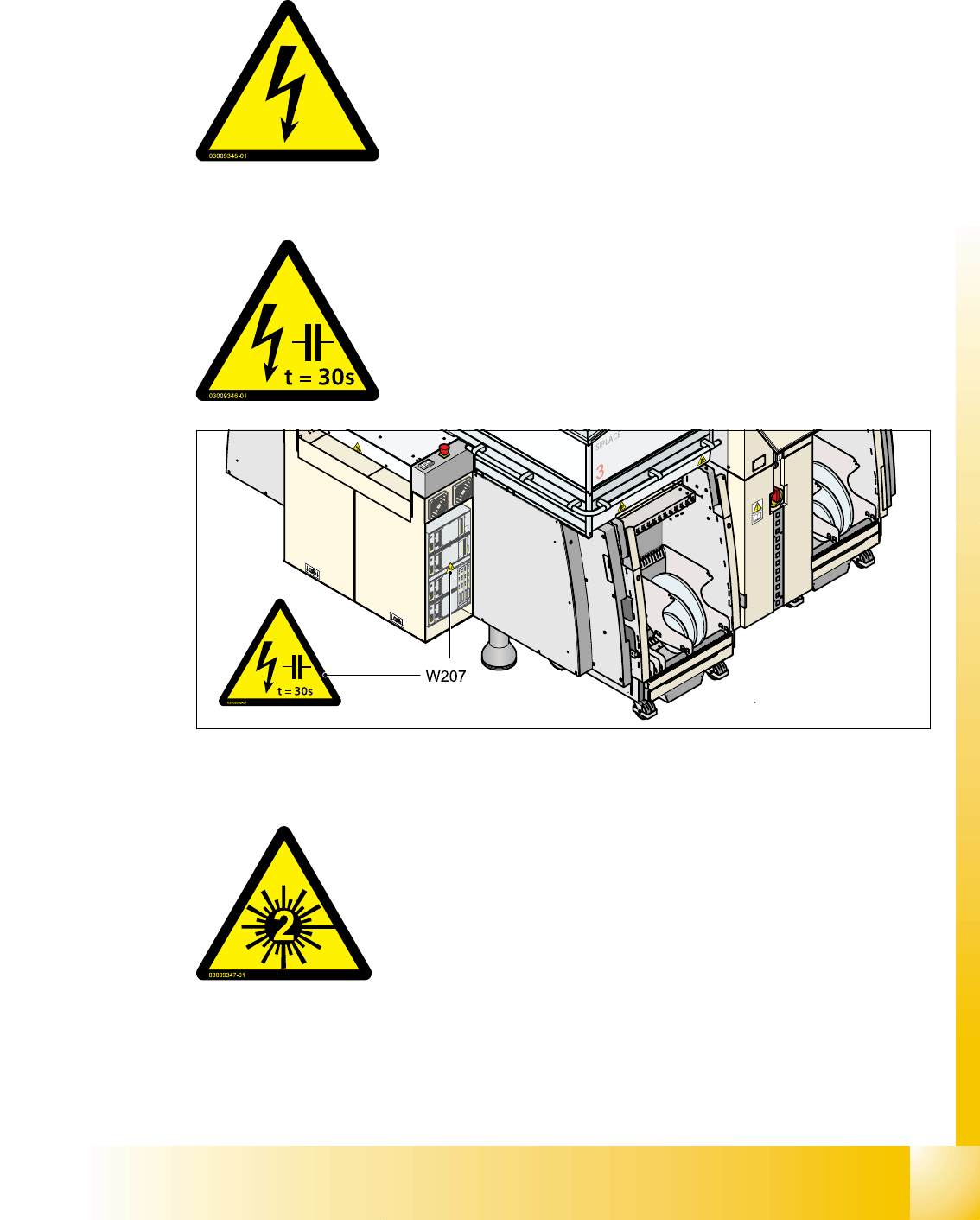

Fig. 1.2 - 3 Warning label W207 on the axis unit Macrolon panel
1.2.1.8 Warning label "laser class 2" on the PCB conveyor
Fig. 1.2 - 4 Warning label "Laser class 2" on the PCB conveyor
DANGEROUS VOLTAGES!
The labeled parts are still live when the main power switch is off.
Disconnect the machine from the mains before servicing it.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
MAIN POWER VOLTAGE!
Switch off the main power switch and wait 30 seconds until the
capacitors have discharged.
NAFTA region: RISK OF ELECTRIC SHOCK OR BURN!
LASER RADIATION!
Do not look into beam
Laser class 2
