1 - 7 S tudent Guide SIPLACE X Edition 09/2005 4 Servic es to the machine 7 4.2.3 Sub distributi on Unit, section 4 Fig. 4.2 - 3 section 4, sub distributor Legend: 1. T erminal block X1ra ((GND,+5V ,+15V ,-15V ,+24V ,+52…
1 - 6
Student Guide SIPLACE X
4 Services to the machine Edition 09/2005
6
4.2.2 Main distribution Unit, section 2
Fig. 4.2 - 2 section 2, main distributor
Legend:
1. Terminal block X1qa (GND, +3.3V, +5V, +15V, -15V, +24V, +52V, various signals)
2. DC/DC converter for Twin head stationary cameras and PCB camera placement area 2 (A3)
3. Vision illumination control board for Twin head stationary cameras (A4)
4. CAN bus I/O module (SLIO) (A1)
5. Connector bar (connector X2qa - X6qa, X71qa - X74qa and X9qa - X24qa)
6. 8-fold AND operation for safety loop (A5)
52
3
1
4
6
1 - 7
Student Guide SIPLACE X
Edition 09/2005 4 Services to the machine
7
4.2.3 Sub distribution Unit, section 4

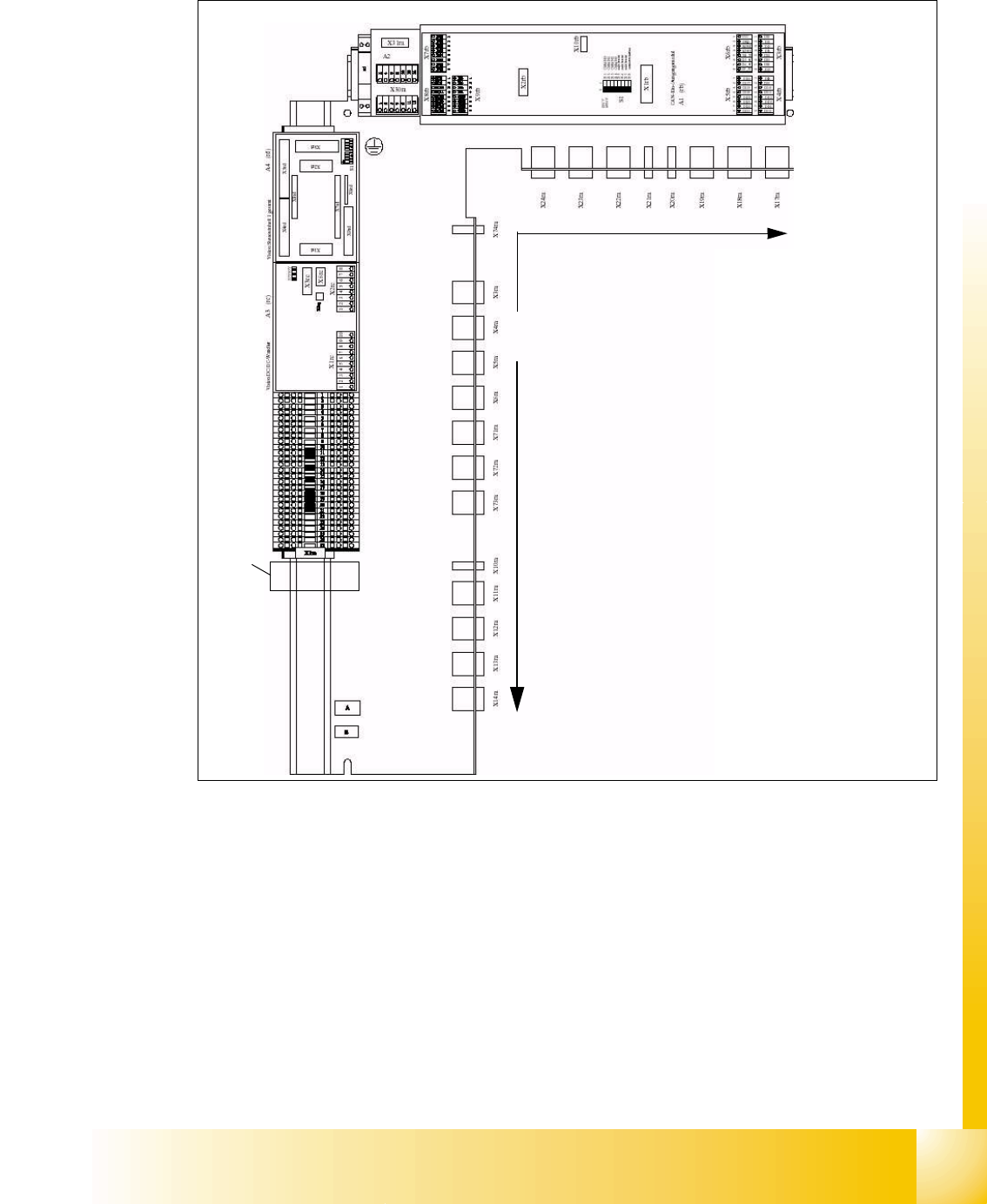

Fig. 4.2 - 3 section 4, sub distributor
Legend:
1. Terminal block X1ra ((GND,+5V,+15V,-15V,+24V,+52V, various signals)
2. DC/DC distributor for PCB camera (for stationary cameras future application) on placement
area 1
3. Vision illumination control board for stationary cameras placement area 1 (future application).
4. CAN I/O module (SLIO)
5. Connector bar (connector X3ra - X6ra, X71ra-X74ra, X10ra - X24ra)
6. 8-fold AND operation for safety loop (A5)
52
3
1
4
6
1 - 8
Student Guide SIPLACE X
4 Services to the machine Edition 09/2005
8
4.2.4 Power Supply Unit
The main power supply unit is mounted on a compact slide-in module, and located on the left
side of the middle section. When viewed from the outside only the red main power switch is visi-
ble.
A lockable door prevents access to the unit.
With the open cover, the state of the following protective devices can be quite easily monitored.
– Motor circuit breaker
– Main contactor
–Safety relay
– Power circuit breaker
With the lockable door open, the state of all circuit breaker, contactor and the condition of the
safety combination (SSK) can be easily monitored to access the power supply for country
specific installment:
1. Unlock the interlock device
2. Slide out the module
3. Reconfigure for country specific power
r

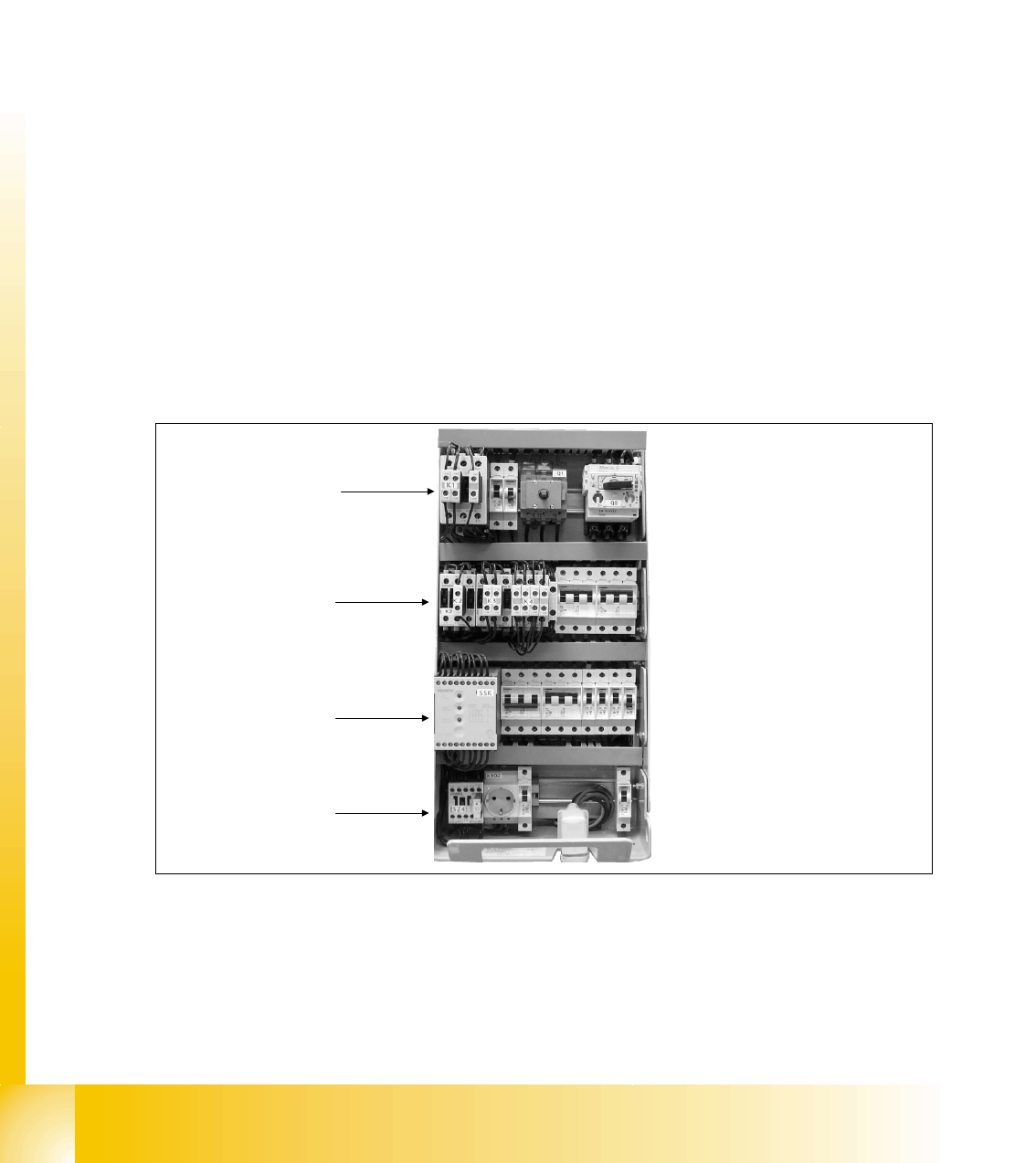

Fig. 4.2 - 4 main power unit
For operating the SIPLACE X, a 3 phase alternating power is supplied. ’N’ is only used for the ser-
vice socket. The contacts L1/L2/L3/N/PE are below the main power module. The separate pro-
tected fuse F1 is crotched before the power filter (1 phase (L3)).
SSK
K5
K2, K3, K4
K1
