Student Guide SIPLACE X
6 Collect &Place-Head 6/12 Edition 09/2005
54
Switch S1on the Headadapter board for C&P 6/12 6
When you use the Headadapter with an 8 bit processor on it, so the switch S1 is without function,
because an 8time switch on the 8bit prozessor board is setting this function.
The switch S1 is only activ together with the 16 bit processor which is installed on the head inter-
face.
Switch S1.1:
ON – Testmode (einstellen von CAN ID in BIOS)
OFF – standard setting
Switch S1.2:
ON – Testmode (without delay)
OFF – standard setting (with delay of 3,6ms+/- 300µs)
that means, the Z-Axis move downwards and the light barrier top will be free, after the delay time
of 3,6ms we activate the light barrier bottom.
Description LED‘s on the head adapter: 6
– H6 -LZOS Light barrier Z-axis upper stop
– H5 -LZUS Light barrier Z-axis down position
– H4 -LSM Stepper motor board not connected
– H3 -LSZD Light barrier Swivel in for turning at DP-station
– H2 -LSVZ Light barrier Vacuum / air kiss Z-axis
– H1 -LSVA Light barrier Vacuum / air kiss reject position
– H8 -P15_F 15V Power supply
– H7 -C167
6.4.1.2 Stepping motor board
The stepping motor board for the valve drivers and the swivel function on the DP station is moun-
ted onto the head adapter. Now, the functions are controlled via the 16 Bit processor board on the
head interface.

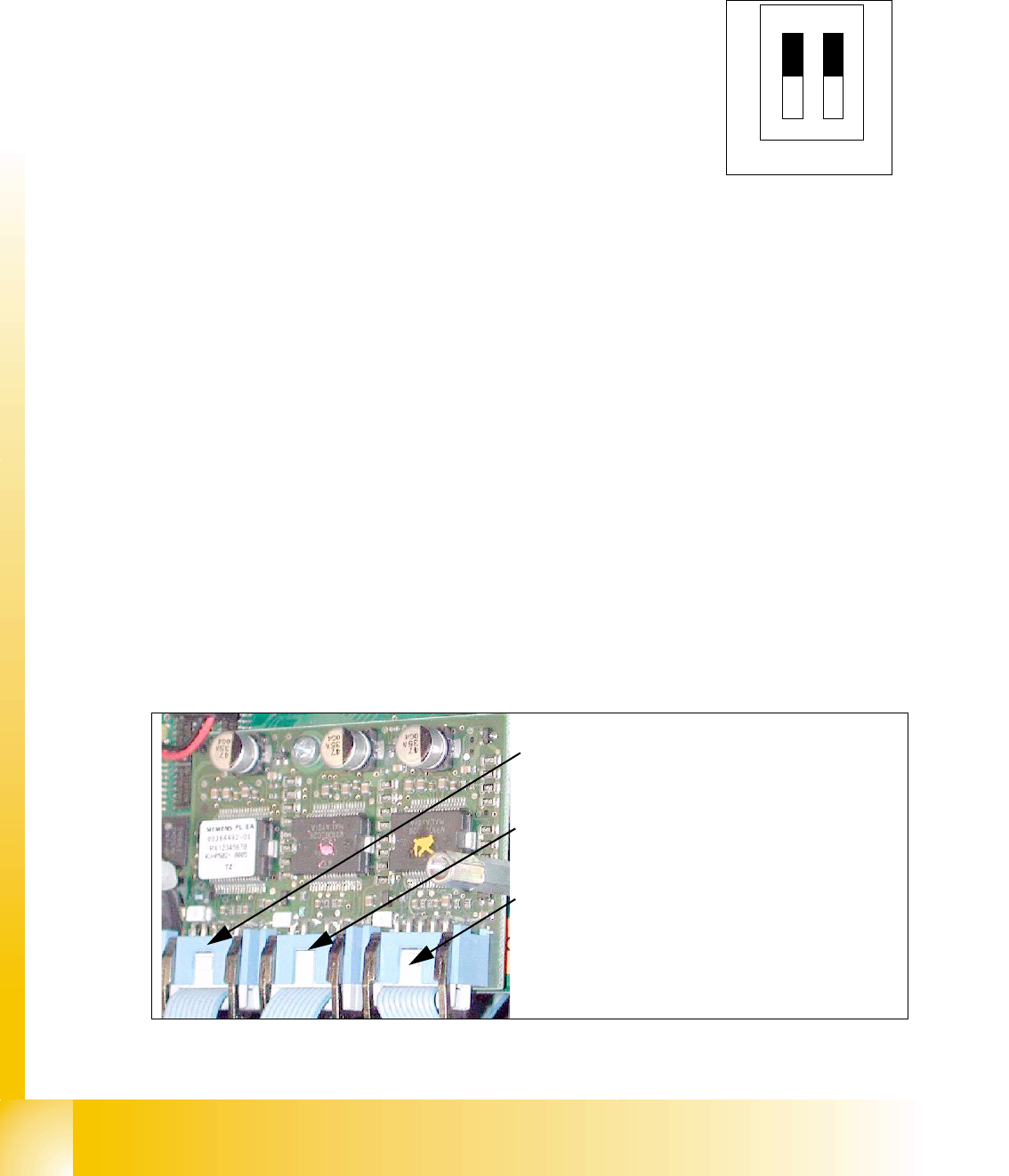

Fig. 6.4 - 2 Stepping motor board
OFF
12
Test
CAN-S
2
3
1
Stepping motor rejectposition
(for X3/X2. X4 and HF-machine)
Stepping motor pick up-, placement-
(and reject position HF/HF3)
Stepping motor DP-axis
1 - 55
Student Guide SIPLACE X
Edition 09/2005 6 Collect &Place-Head 6/12
55
6.4.1.3 SP_12 Digital intermediate distribution board (00330648-05)
6

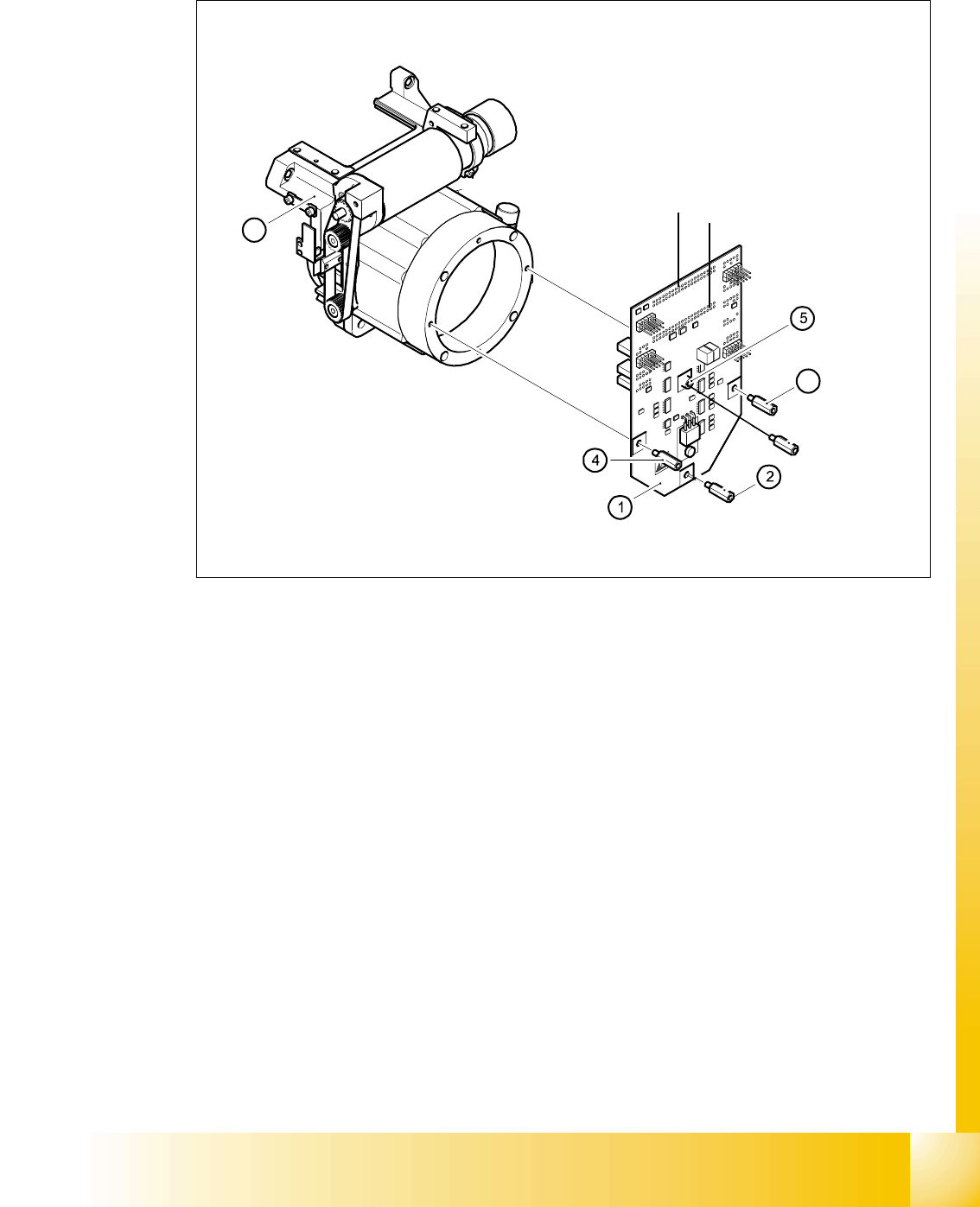

Fig. 6.4 - 3 SP6_12 intermediate distribution board (Picture DLM 1)
Legend
The intermediate distribution board (1) is fixed to the front part (4) with four spacer bolts (items 2,
3,4 and 5). The cover of the intermediate distribution board is fixed with push buttons.
6
Two 40-pin ribbon cables run from plug X1 and X2 on the intermediate distribution board to socket
X14 / X13 on the head board.
(1) Intermediate distribution board (2) M3x10 spacer bolt
(3) M3x10 spacer bolt (4) M3x10 spacer bolt
(5) M3x10 spacer bol (6) Front part of the collect&place head
3
6
X 1
X 2
