1 - 9 S tudent Guide SIPLACE X Edition 09/2005 2 Overview 9 2.2 Overview of Unit s Fig. 2.2 - 1 T op view Siplace X3 Key (1) Sector 1 (2) Sector 2 (main distributor) (3) Sector 3 (4) Sector 4 (subdistributer) (5) T ransp…
1 - 8
Student Guide SIPLACE X
2 Overview Edition 09/2005
8
Configuration Siplace X2 2

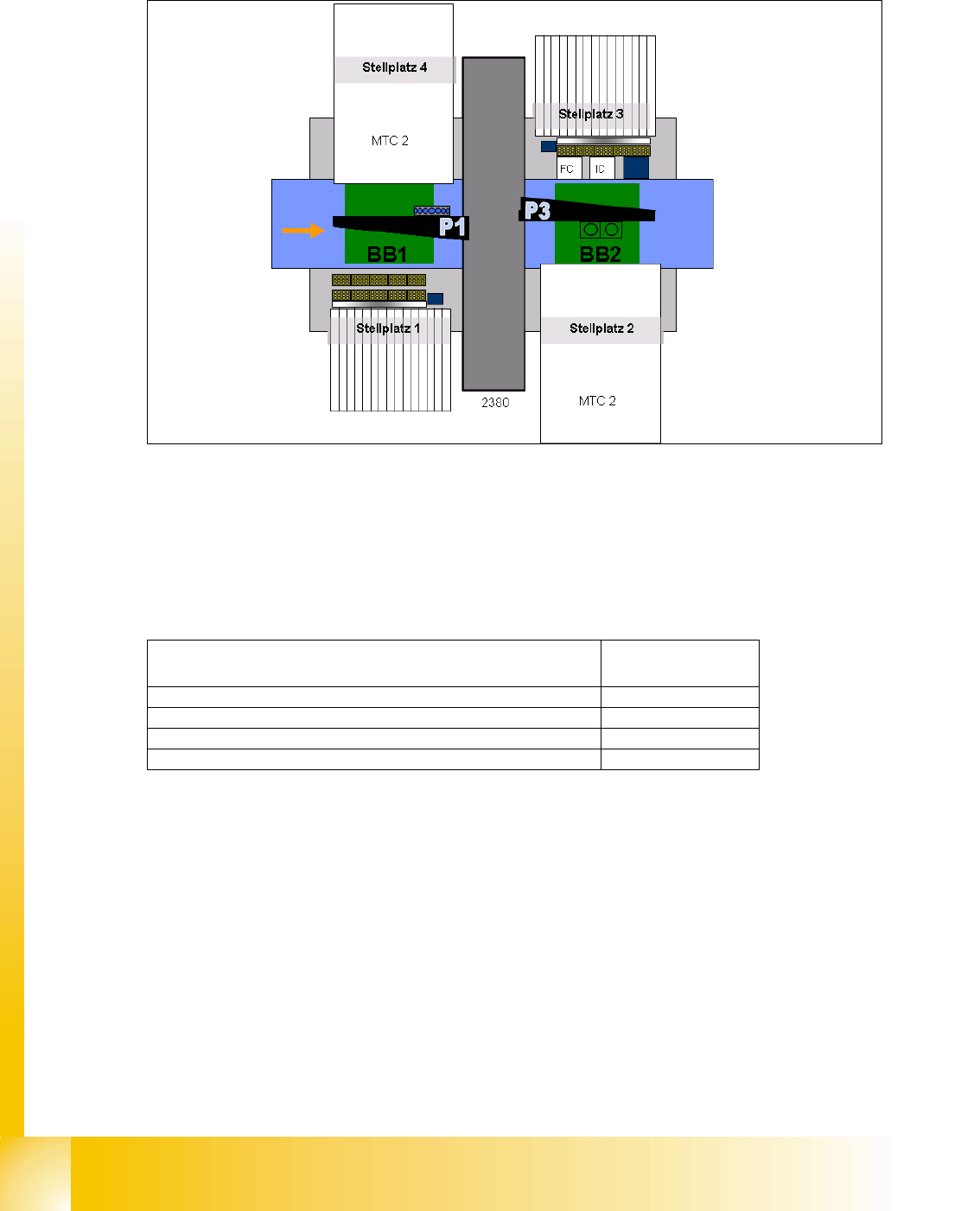

Fig. 2.1 - 5 Possible configuration for Siplace X2
Note: in placement area 2, always configure a placement head which can handle taller compo-
nents than the placement head in placement area 1.
Overview of placement head component heights: 2
PCB transport
5 areas
Twin head, C&P12
or C&P6
Component table
or MTC 2
Direction of
PCB transport
15 locations per
S-table / 40 tracks for
8mm X-feeder
Component table
or MTC 2
C&P12, C&P6
or C&P20
Placement heads Max. component
height
C&P6 DLM2 8.5mm
C&P12 DLM2 6.0mm
C&P20 head 4.0mm
Twin head 25.0mm
1 - 9
Student Guide SIPLACE X
Edition 09/2005 2 Overview
9
2.2 Overview of Units

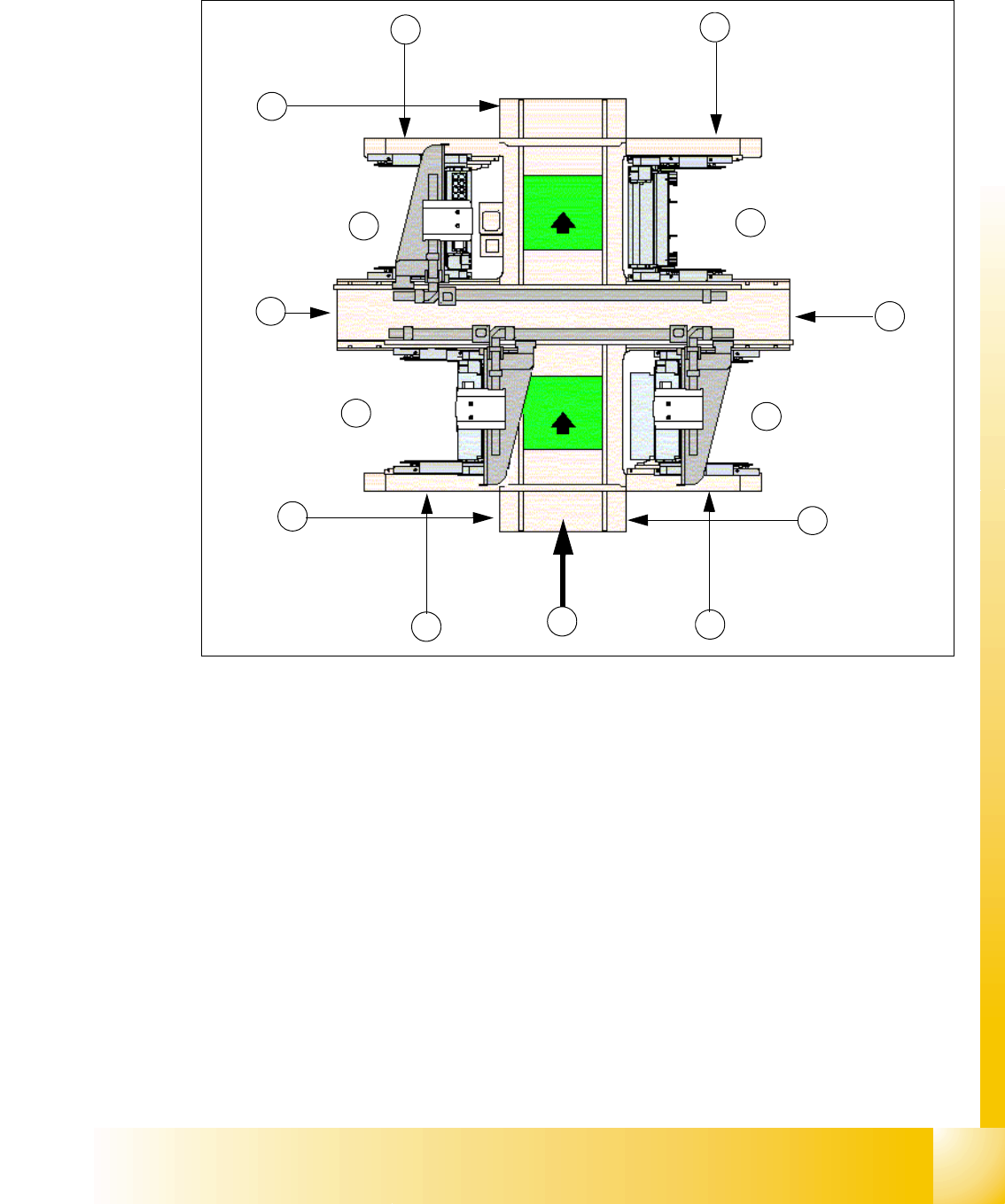

Fig. 2.2 - 1 Top view Siplace X3
Key
(1) Sector 1 (2) Sector 2 (main distributor)
(3) Sector 3 (4) Sector 4 (subdistributer)
(5) Transport direction (6) Pneumatic unit & control unit conveyor
(7) Component changeover table location (8) Computer unit
(9) Location for component changeover table
or MTC 2 for BB 2
(10) Location for component changeover table
or MTC 2 for BB 1 (MTC only X2)
(11) Axis unit in PA 1(BB1) (12) Axis unit in PA 2
(13) Power supply unit
1
2
8
3
5
6
4
7
7
9
10
11
BB 1
BB 2
13
12
1 - 10
Student Guide SIPLACE X
2 Overview Edition 09/2005
10
2.2.1 Power supply unit
The main power supply unit is mounted on a compact rack unit and located on the left side of the
middle section. When viewed from the outside, only the red main power switch is visible.
A lockable door prevents access to the unit.
2.2.1.1 Overview of Voltages in the Power Supply Unit
Fig. 2.2 - 2 Power supply at the front
K1
K2 / K3 / K4
K6
K5
F1/F14
F2 / F10 / F6 / F8 /
F12 / F13
F4 / F7
F11 / F5
Q1 / Q2
Component
assembly
Designation Contact Voltage
X100 Terminal strip for power supply L1, L2, L3 3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
X102 Service socket 115 VAC / 220 VAC / 230 VAC / 240
VAC
Q1 Main switch 1, 3, 5 and
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
Q2 Motor circuit-breaker 1, 3, 5 and
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
K1 Main contactor 1, 3, 5 and
2, 4, 6
3 x 204 VAC / 3 x 380 VAC
3 x 400 VAC / 3 x 415 VAC
