1 - 36 S tudent Guide SIPLACE X 7 T win-Head Edition 09/2005 36 7.5.2.3 Description of the functions The magazine for standard nozzles has 1 positioning fid ucial for position detection, while th e mag- azine for special…
1 - 35
Student Guide SIPLACE X
Edition 09/2005 7 Twin-Head
35
7.5.2.2 Assembly nozzle changer magazine
The nozzle changer together with the empty tape duct is fixed on the component docking unit. The
magazines are seated on a common support. They are centered with two parallel pins and fixed
in place with two countersunk screws.

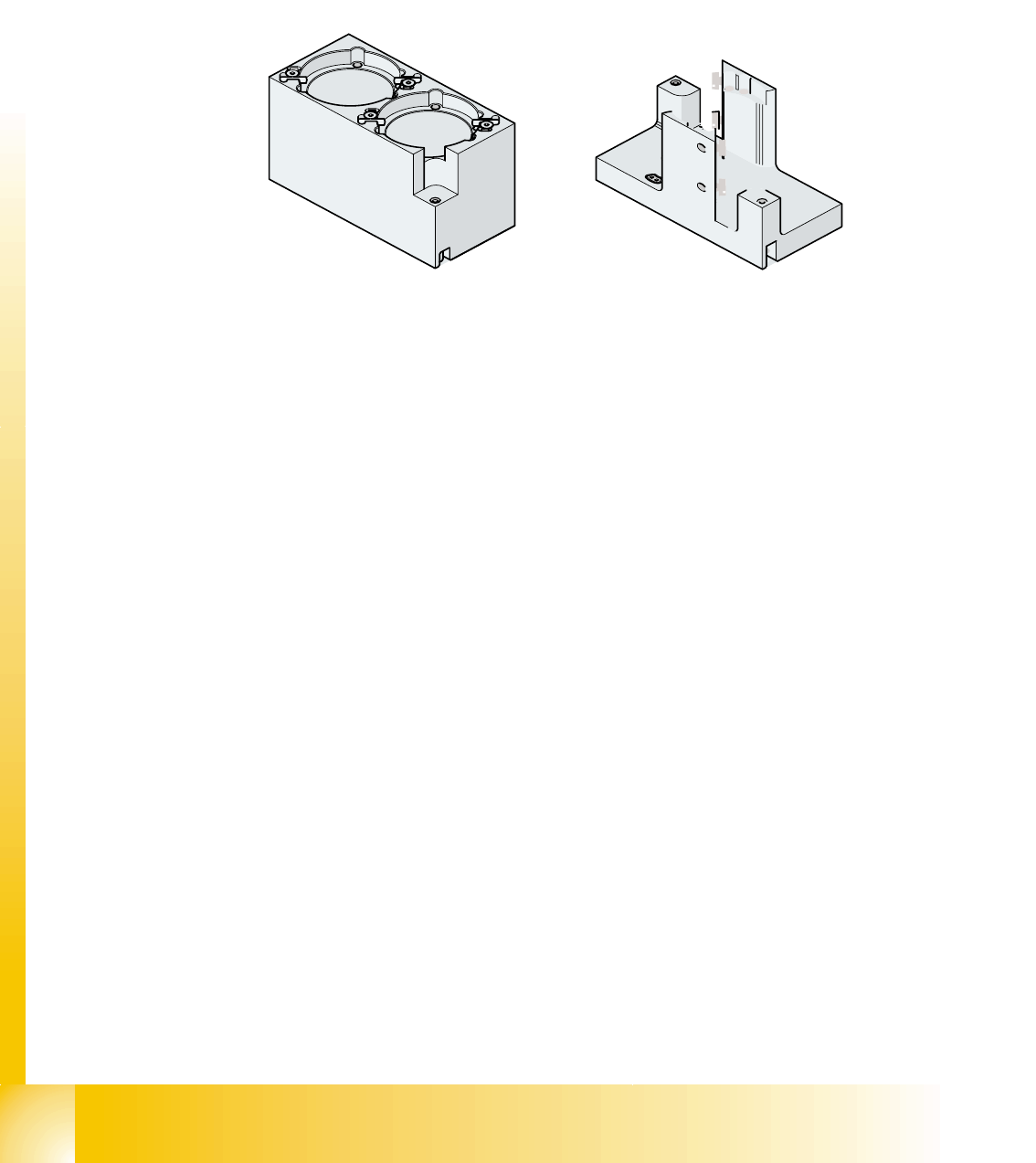

Fig. 7.5 - 3 Assembly magazine
Legend
➠ Align the nozzle changer so that the marking hole (item 1) is on the left, as viewed by the op-
erator at component table side.
(1) Fiducial for optical X/Y position recognition
of the magazine carrier.
(2) Arrow pointing to component table
(3) Arrow pointing toward the PCB conveyor (4) Fiducial for optical X/Y position recognition
of the magazines.
(4)
1 - 36
Student Guide SIPLACE X
7 Twin-Head Edition 09/2005
36
7.5.2.3 Description of the functions
The magazine for standard nozzles has 1 positioning fiducial for position detection, while the mag-
azine for special nozzles/grippers has two positioning fiducials. The nozzles are fixed by balls in
the holder. They are then either locked for return or released for pick up, depending on the direc-
tion of rotation of the DP axis.
Fig. 7.5 - 4 Magazine for standard- and special nozzles
Legend
Position of the nozzle in the magazines 7
(1) Standard magazine (2) Positioning fiducia
(3) Nozzle holder (4) Magazine for special nozzles
(5) Nozzle holder (6) Balls for lifting the nozzles
1 - 37
Student Guide SIPLACE X
Edition 09/2005 7 Twin-Head
37
7.6 Axis control
7.6.1 Overview Axis control Z- and D-Axis
The closed-loop control system for control of the head axes consists of the following parts.
– Axis controller with VC 3 Controller
– Servo card (SDS)
– Motor
– Measuring system (Incremental- scale and -encoder)
Between the head axes, some differences which will be explain later in this chapter.

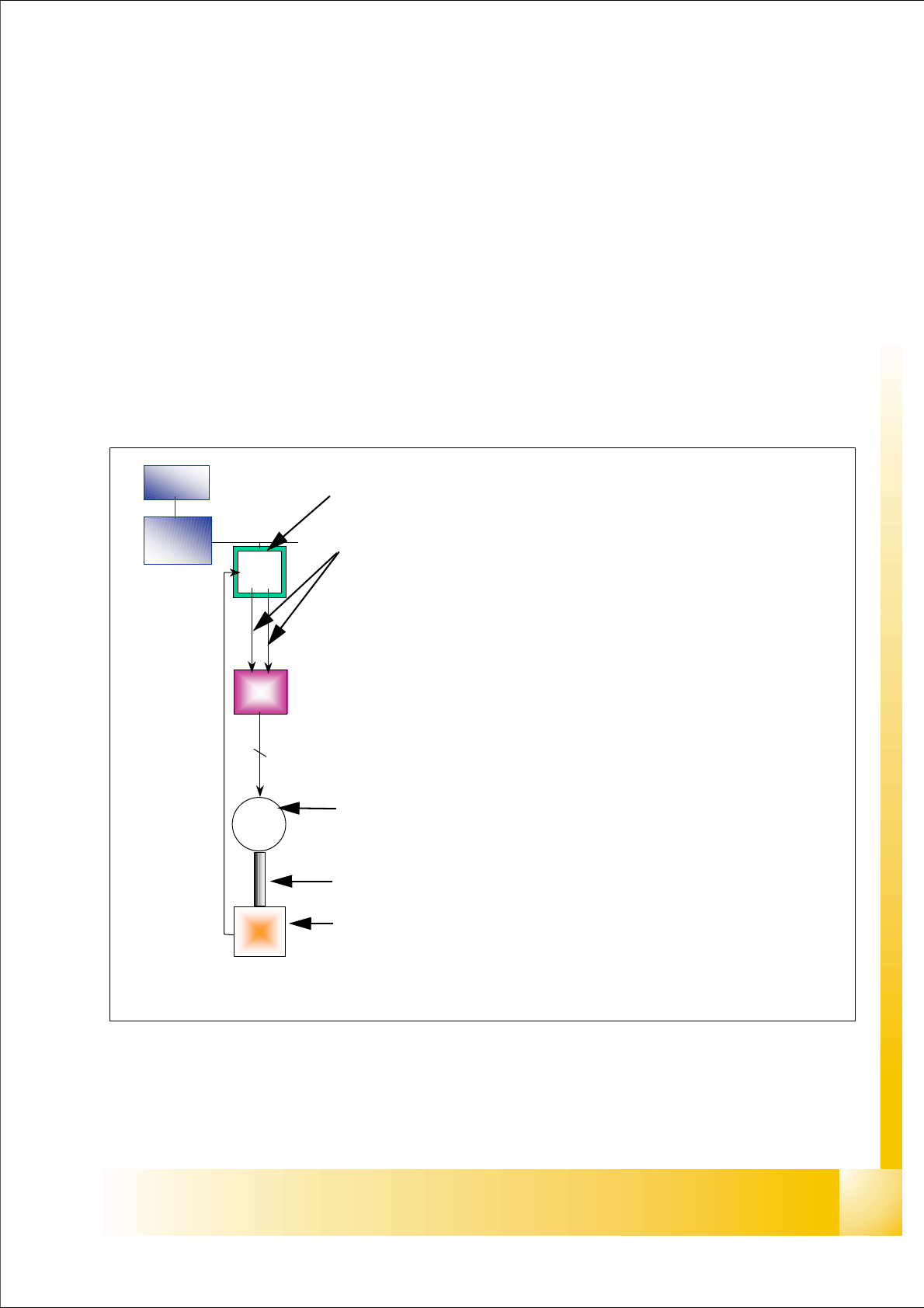

Fig. 7.6 - 1 Example: Axis control D-axis
MC
COM
board
VC 3
cont
Servo
ampli.
M
2 ~
Enco-
der
2
Axis card A363 with VC 3 Controller (VC = Velocity Commutation)
Control signals I
nom "W" and I nom "U"
LED‘s on the Servo amplifier:
– Power supply ON
– Servo enable, if the the enable signal from the axis board available.
– Display RMS current limiter shorter than 2,5 s.
– Error: Overvoltage, -current, -temperature or Nominal current-overstep-
ping longer than 2,5 sec.
Servo board control directly the motor.
2 Phase AC motor for D Axis.
3 phase AC linear motor for Z-Axis
Between the motor and the incremental encoder exist a fixed mechanical
combination.
Incremental encoder: trace the exact position of the axis via track signal.
