1 - 12 S tudent Guide SIPLACE X 9 Component handling Edition 09/2005 12 9.2.3.3 Adjustment pneumatic cylinder The movement of the CAM-disks at the docking un it, lef t and right side can be individually adjus- ted at the…
1 - 11
Student Guide SIPLACE X
Edition 09/2005 9 Component handling
11
9.2.3 Function description of the component changeover table
9.2.3.1 Docking
The docking process can only be perform when the machine is power on , compressed air is sup-
plied to the machine and the safety cover have to be closed.
For docking the COT move the table into the machine as far as possible, keep safety cover closed
and press the button (One hand operation). On the left and right from the empty tape duct are two
centering pins to center the COT for the final correct pick up position.
At docking procedure the component table plate raise (depend on machine and COT height) and
is pulled into the machine automatically. Two pneumatic cylinders with cam disks on the left and
right side of the COT move the trolley.
9.2.3.2 Undocking
When machine is running:
For undocking the COT open the safety cover and press the but-
ton 1. The component table is pushed out with two additional pneumatic cylinders at the left and
right of the empty tape duct. The COT is lowered by the cam disks. The COT electrical and pneu-
matic supply will be automatically disconnected from the machine.
When machine is OFF: Remove the COT for service without electrical and pneumatic power
supply -> Open the safety cover an pull out the COT on the handles.

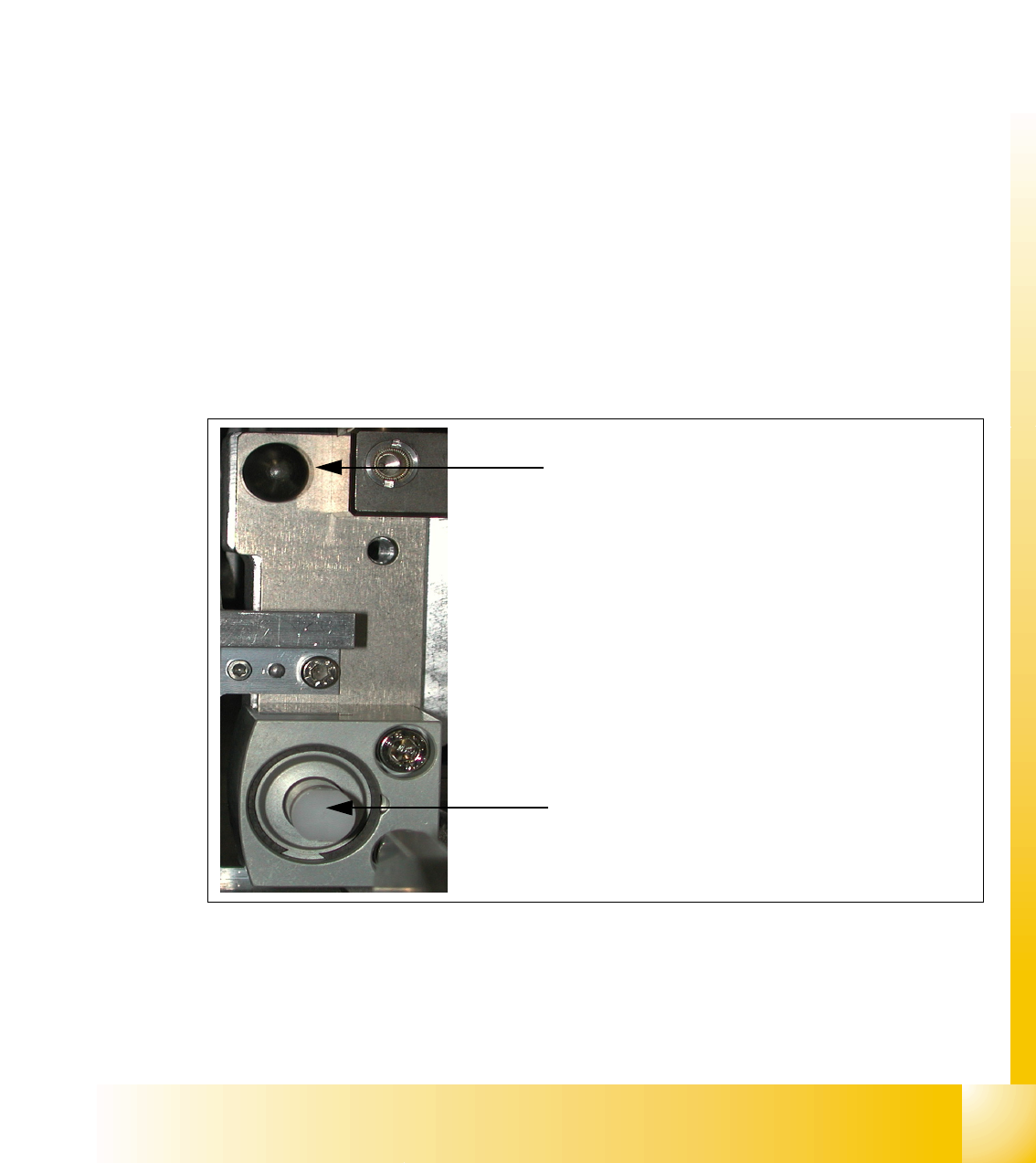

Fig. 9.2 - 3 Centering pin and pneumatic cylinder at the left and right of COT (X- and S- table)
Centering Pin for the table plate
Cylinder pushing out the COT at undocking
1 - 12
Student Guide SIPLACE X
9 Component handling Edition 09/2005
12
9.2.3.3 Adjustment pneumatic cylinder
The movement of the CAM-disks at the docking unit, left and right side can be individually adjus-
ted at the round cylinder
Note:
If you adjust the pneumatics cylinder is to be ensured that the COT is moved in parallel into the
docking unit. The docking and undocking procces of the COT should be set to
approx. 2 seconds.

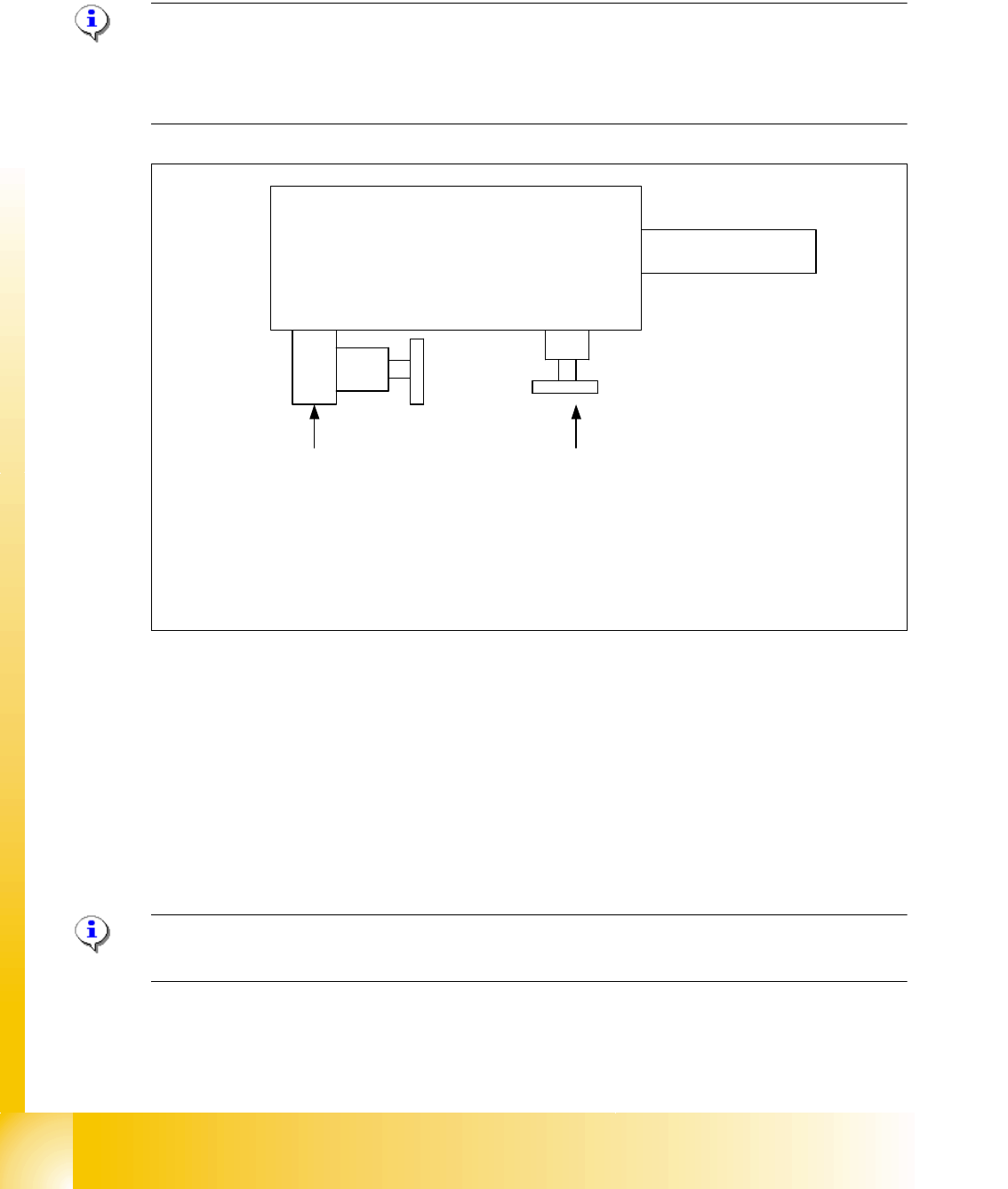

Fig. 9.2 - 4 Adjustment the pneumatic cylinder on the docking unit
9.2.3.4 Position of the docking unit in the machine
The docking unit has three different mounting position in each location in the machine.
The position of the docking unit is depend on the machine type and thus of the number of gantries
in the placement area.
The docking unit of the MTC 2 is always installed in Position 3 (see Fig. 9.2 - 5).
Note:
For the option head modularity the position of the docking unit on both location are not changed.
Valve setting
Time characteristic for
docking the COT
Valve setting
Time characteristic for
undocking the COT
Pneumatic cylinder
Docking unit
Piston rod
Setting valve anticlockwise: Increase the time for the docking and undocking process
Setting valve clockwise: Reduce the time for the docking and undocking process
1 - 13
Student Guide SIPLACE X
Edition 09/2005 9 Component handling
13

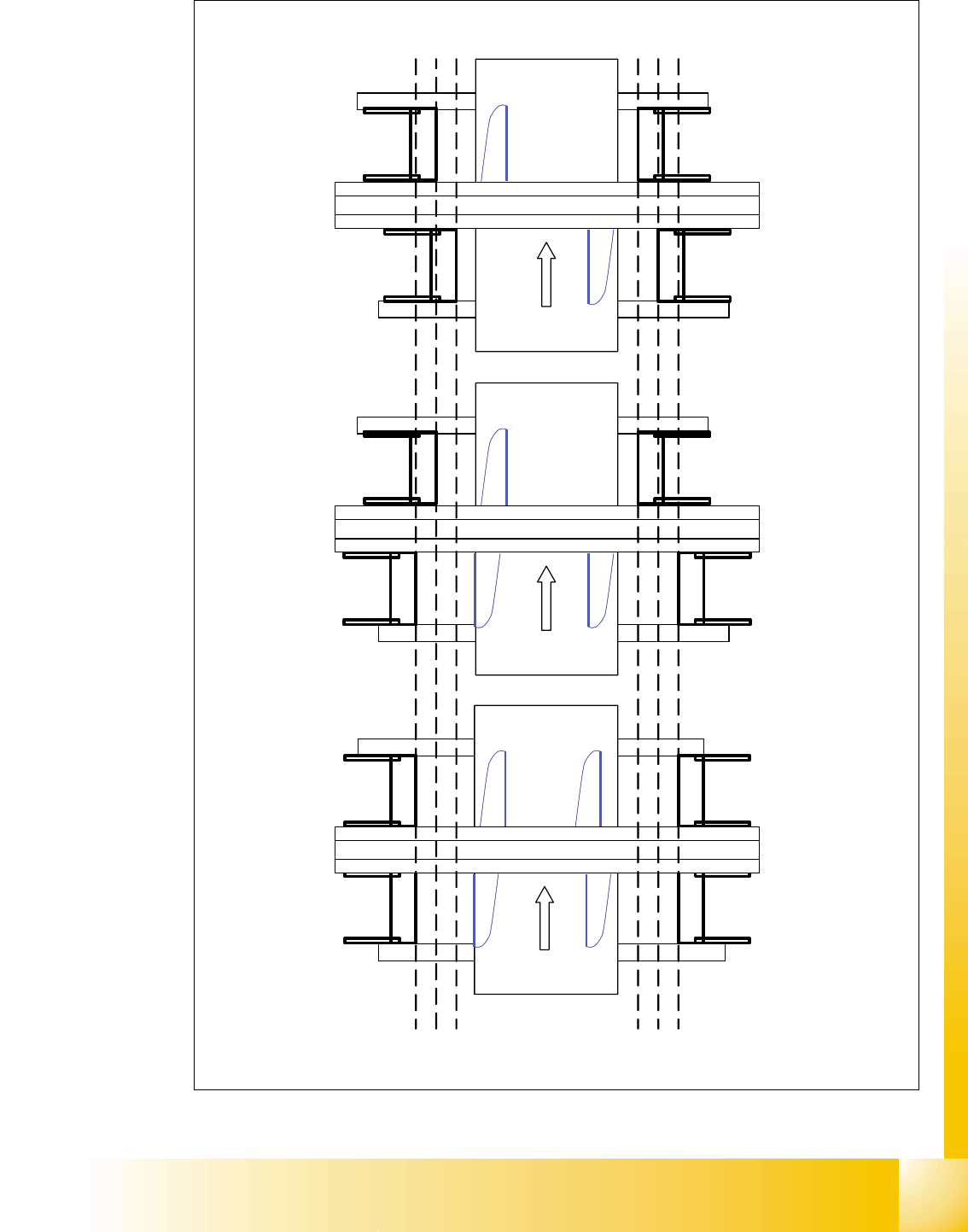

Fig. 9.2 - 5 Positions of the docking unit
Portal 1
Portal 3
Portal 4
Transportrichtung
Siplace X 3
Portal 1
Portal 3
Portal 4
Transportrichtung
Siplace X 4
Portal 2
Portal 1
Portal 2
Transportrichtung
Siplace X 2
Position docking unit
3 2 1
Position docking unit
1 2 3
3 2 1
Position docking unit
1 2 3
Position docking unit
