1 - 16

Student Guide SIPLACE X

9 Component handling Edition 09/2005

9.2.5 Optionally extension on the COT

9.2.5.1 Tape reel holder for the 3th reel at the 3x8mm S-Feeder

When using 3x8mm S-Feeder it would be necessary to install the tape reel holder for the3th pick

up track on the COT. The option allows unwinding of the tape easily and decrease machine

stoppage.

The adapter plate (Pos. 1) is fixed inside the COT with four screws. The adapter plate for the tape

reel holder will be mounted under the communication unit. In this mechanical device hang up the

holder for the 3th tape reel.

Fig. 9.2 - 9 Tape reel holder on the COT(left) / Mechanical device for the tape reel holder (right)

Legend

9.2.5.2 Additional reel holder of the X- table

The X-table has 40 tracks, but the reel container of the X- table allows only to put 30 reels on it,

so there exist optionally a additional reel holder.

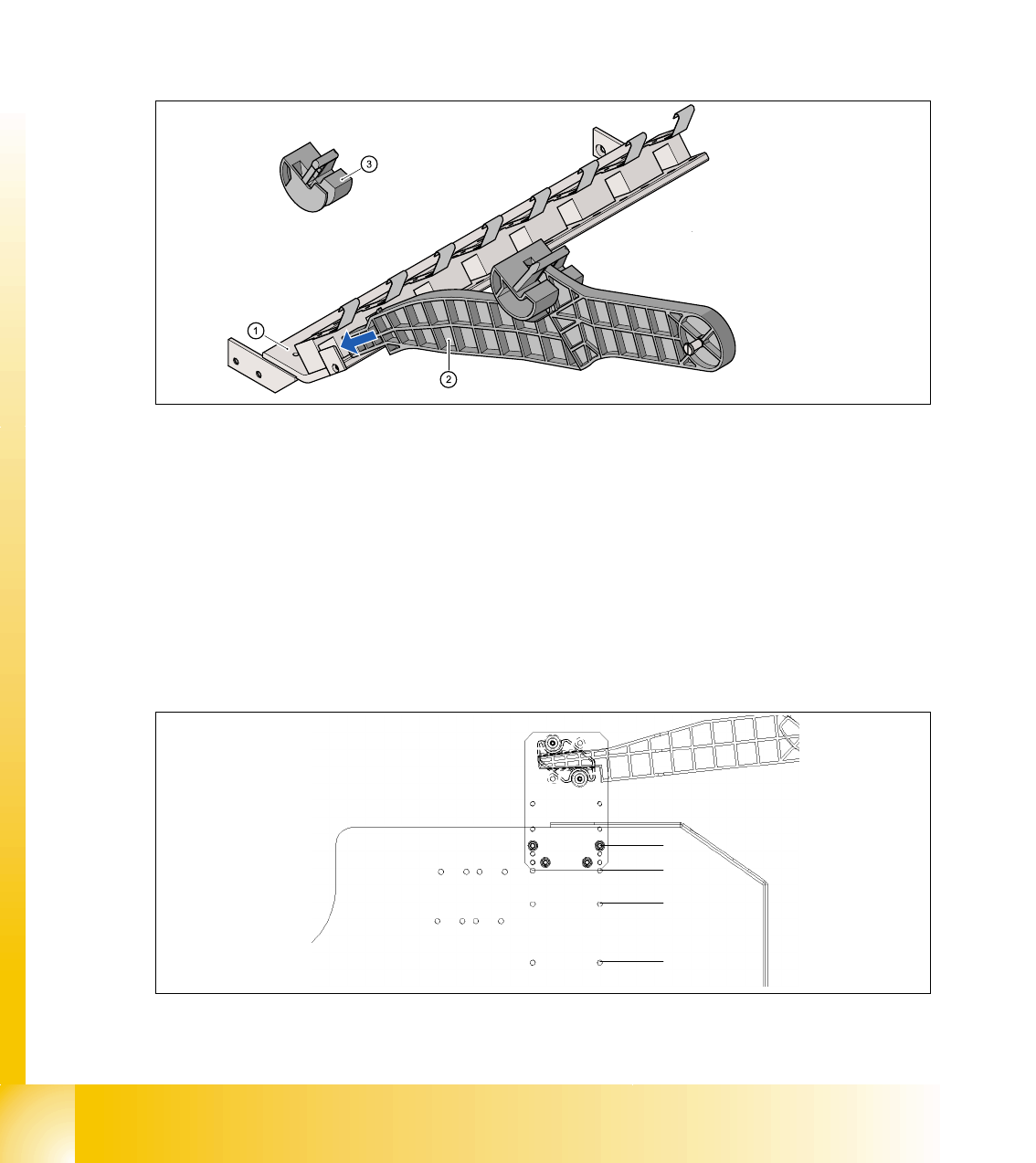

Fig. 9.2 - 10 Additional reel holder X- table

(1) Adapter plate 2. Tape reel holder

3. Idler pulley, shortened

SMEMA 950 (max.19 inch)

Assembling the reel holder

SMEMA 930 (max.19 inch)

SMEMA 900 (max.17 inch)

SMEMA 830 (max.15 inch)

1 - 17

Student Guide SIPLACE X

Edition 09/2005 9 Component handling

9.2.5.3 Compressed air supply for Bulkcase feeder

Bulkcase feeder need for operation pressure air supply. So this pressure air supply is offered as

an option .

it is easy to mount. First remove the bung (Pos. 1) at pressure air hose in the feeder table (Pos.

2). Than the pneumatic supply for the bulck case feeder is mounted (Pos. 3) with 2 screws DIN

912, M8x20 (Pos. 4) on the component table (Pos. 2). At the rear side of the airkiss supply unit

are feeder clamps mounted (Pos. 5). This clamps keep the Bulkcase-feeder down correctly sealed

to the pressure air supply.

Fig. 9.2 - 11 Unit for bulkcase feeder

Legend

(1) Bung at component table 2. Componnent table

3. Pressure air supply for Bulkcase-Feeder 4. Screw DIN 912, M8x20

5. clamps for bulkcase feeder

1 - 18

Student Guide SIPLACE X

9 Component handling Edition 09/2005

9.2.5.4 Additional feeder fixation

The Feeder-Fixing is an additional mechanical safety precaution. It prevent to move the feeder at

the component table by accident. It exclude a head crash risk with a wrong positioned feeder.

The feeder-fixation is is mounted on the front side of the component table. The clamp lock the front

feeder stand. Forthe full set up of this option each feeder table get such a clamp.

Fig. 9.2 - 12 COT feeder fixation

Legend

9.2.5.5 Additional Communication unit for splice detection

An additional communication unit for the option Traceability with splice detection is necessary.

Splice detector is connected to this communication unit. The communication unit sent an informa-

tion to the SC software when a splice is detected at the component tape.This set the new fill level

for this component automatically.

Fig. 9.2 - 13 Additionally communication unit for splice detection

(1) The additionally communication unit is mounted together with the communication unit on the

component changeover table.

NOTE : X- splice- sensor are mounted directly behind the pick up position of the X- feeder and

they communicate via feeder CAN- bus --> machine CAN- bus with the station software.

(1) Feeder fixation 2. Component table
