1 - 29
Student Guide SIPLACE X
Edition 09/2005 9 Component handling
29
9.3.12.5 Menu Pitch in the main menu
Fig. 9.3 - 16 Setting the transport length
9.3.12.6 Menu transport speed in the main menu
Fig. 9.3 - 17 Setting the transport speed
Button Forward press briefly
Pitch lenght will be increase to the next pitch
Button Forward press long
No function
Button Backward press briefly
pitch lenght will be decrease to the previews pitch
Button Backward press long
No function
Button FOIL
Change to the previews menu in the main menu
Button SET press briefly
Change in the next menu in the main menu
Button SET press long
No function
SIEMENS
Takt 4mm Pitch 4mm
Button FOIL press briefly
Change to the previews menu in the main menu
Button FOIL press long
Change to the Data menu
Button Forward press briefly
Transport speed will be increase to the next value.
Button Forward press long
No function
Button Backward press briefly
Transport speed will be decrease to the previews value
Button Backward press long
No function
Button SET press briefly
Change to the next menu in the main menu
Button SET press long
No function
Changing the transport speed:
>>> Standard
>> Slow
> Very slow
SIEMENS
Geschw. > > >Speed > > >
1 - 30
Student Guide SIPLACE X
9 Component handling Edition 09/2005
30
9.3.12.7 Data menu
Call the data menu 9
– Press the SET Button until you see speed in the display
– Press the FOIL Button long
Back to the main menu 9
– Press the FOIL Button long

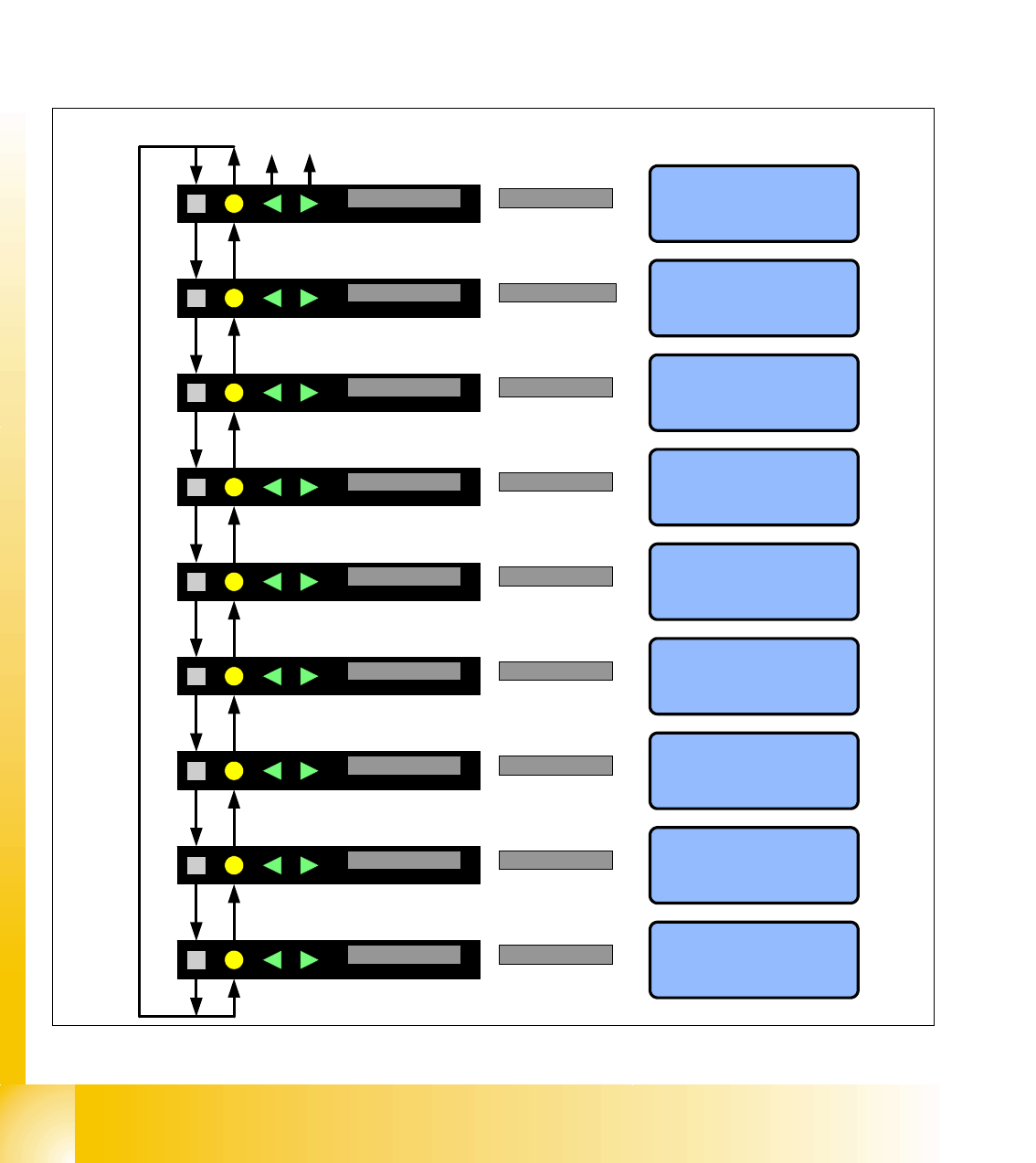

Fig. 9.3 - 18 Display in the data menu
App.V. XX.YY
SIEMENS
BootV. XX.YY
SIEMENS
HW-Vers. XY
SIEMENS
Data 1:
Version Application software
KL - SN - 01234
SIEMENS
X-Typ 8mm
SIEMENS
4:27 Std
SIEMENS
ZY 123456789
SIEMENS
LF Keiner
SIEMENS
Data 2:
Version Boot software (BIOS)
Data 3:
Hardwareversion Control board
Data 4:
Serial number of the feeder
Data 6:
Feeder typ
Data 7:
Operating hours
Data 8:
cycles of the feeder
Datum 9:
Shows the last error of the feeder
08FAUSN01234
SIEMENS
Data 5:
Ident.number of the feeder
With the buttons Forward and Backward
change between long and short text.
Applikation
Short text Long text
Ladesoftware
Hardware
Seriennummer
Feeder-Ident
FoerdererTyp
Betriebszeit
ZY = Zyklen
LetzteFehler
App.V. XX.YY Application
BootV. XX.YY Bootsoftware
HW-Vers. XY Hardware
KL - SN - 01234
SerialNumber
08FAUSN01234 Feeder-Ident
X-Typ 8mm Feeder type
4:27 hrs Worktime
CY 123456789 CY = Cycles
LE No Error LE=LastError
1 - 31
Student Guide SIPLACE X
Edition 09/2005 9 Component handling
31
9.3.13 Activation and function in the Service technician menu
– The service menu is only temporary activ. After 1 minute if you don‘t press a button again the
menu goes back in the main menu. So it is not necessary to switch off the menu "Service tech-
nician" manual.
– In this additional menu is an reference run for the X-feeder possible, which are sometims nec-
essary, e.g.Software download, in this case the menu appears automatically.

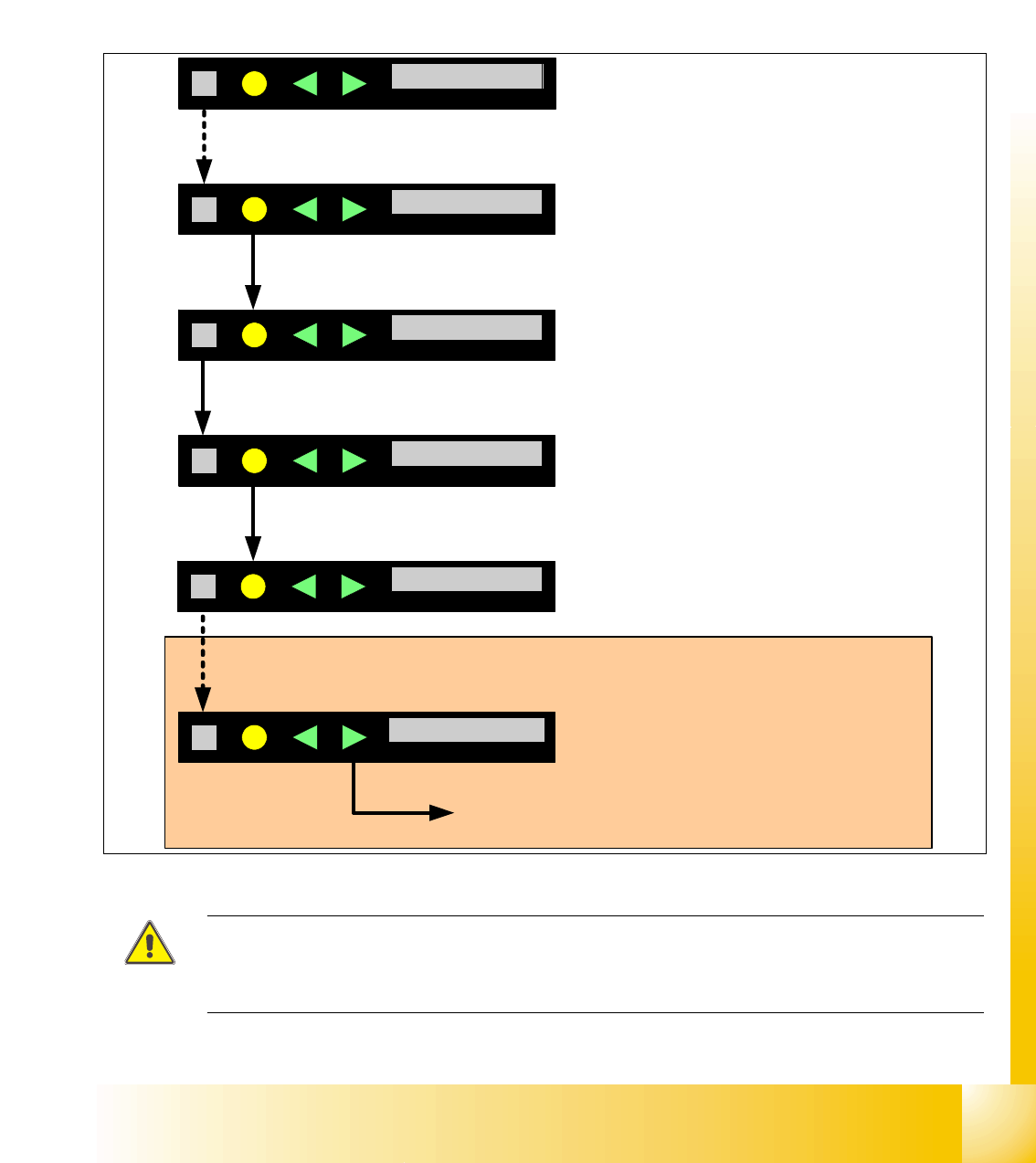

Fig. 9.3 - 19 Servicemenu for reference run
ATTENTION: During the reference run with a tape you have to open the pick up window and no
foil in the foil removal unit and you
lost components.
Recommendation: Carry out the reference run with out a tape.
Spur 01 4mm
SIEMENS
Geschw. > > >
SIEMENS
Track01 4mm
Speed > > >
1. Button SET press, until it appears the display SPEED.
2. Button FOIL press long: Change in the Data menu
Referenz N
SIEMENS
Reference N
App.V. XX.YY
SIEMENS
App.V. XX.YY
3. Button SET press long: After release the button the menu service is activate.
Spur 01 4mm
SIEMENS
Track01 4mm
Boot.V. XX.YY
SIEMENS
Boot.V. XX.YY
4. Button FOIL press long: Change to the data menu back
Press the button SET , until the reference menu appears.
Press long: Start reference run.
After the reference run you have to confirm and
the display changed from N to Y
