1 - 15 S tudent Guide SIPLACE X Edition 09/2005 10 Modular conveyor 15 10.2.2.1 Procedure to widen the c onveyor to single convey or mode: ➠ Use SITEST (505) transport menu ’options and co nfigur ation’ ’widen conveyor’ …

1 - 14

Student Guide SIPLACE X

10 Modular conveyor Edition 09/2005

10.2.2 Setting the fixed conveyor rail (single and dual conveyor)

Please Note:

This menu is protected with the Siemens Service password.

The fixed conveyor rail can be set using the Sitest program, if necessary. If the taught position of

the fixed conveyor rail has been stored, these values will be used for the "Move all conveyor rails

to default position" function, i.e. the default values will be overwritten and will have to be retaught

as shown in Fig. 10.2 - 5.

If these dimensions are incorrectly set on the single or dual conveyor, the PCB reference corner

may be moved, leading to fiducial errors during placement.

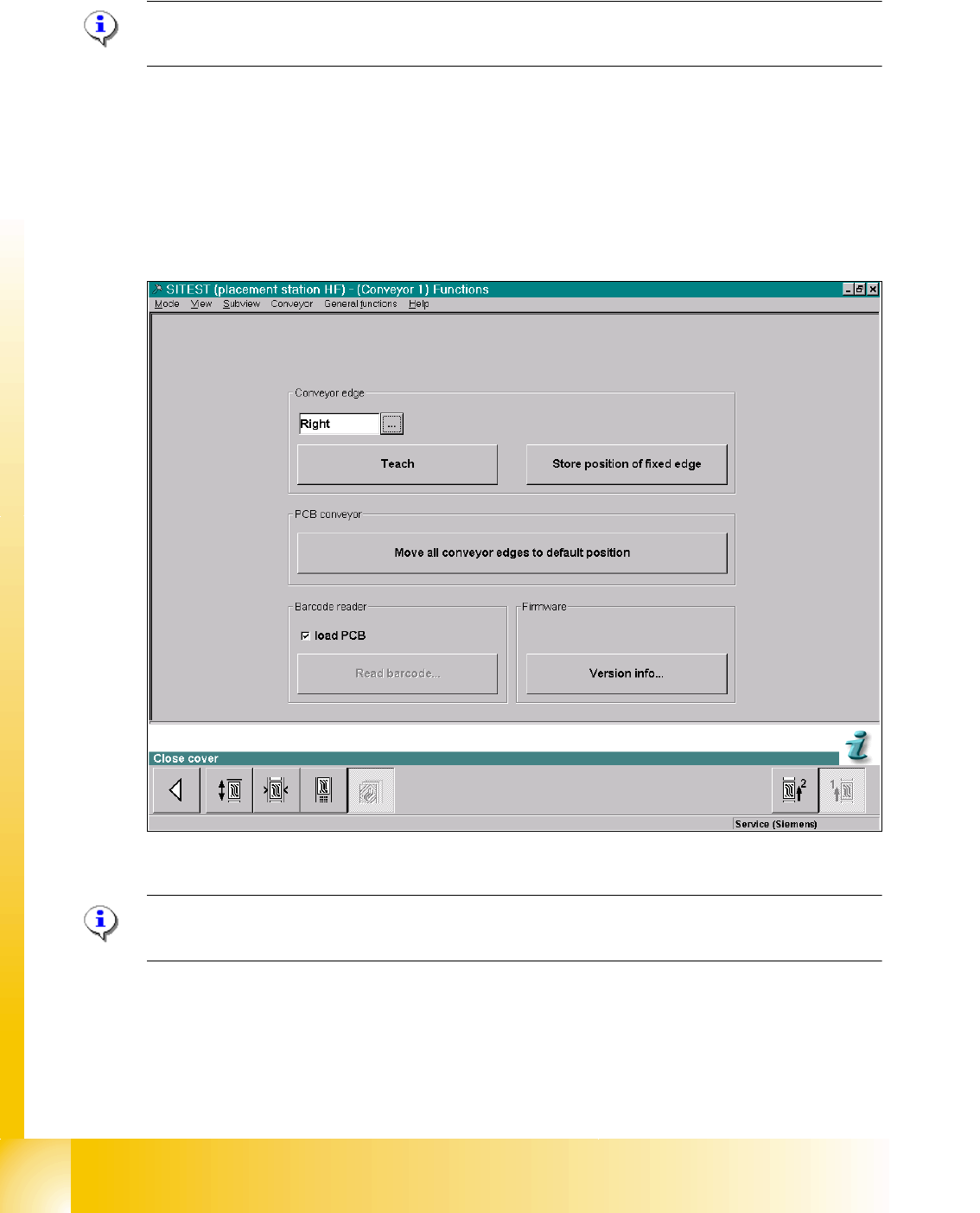

Fig. 10.2.4 Sitest "Set fixed conveyor side"

Please Note: With SC/MC station-SW 505 or higher the Fixed rails are flexible moveable for

all conveyors by transport control firmware.

Two necessarities to change fixed conveyor rail(s):

- extend conveyor this move the fixed rail 34 mm outside only for HF- and

X-lines

- widen conveyor this move the 2nd conv. to limits and run dual conv. in

single conv. mode (std to 380mm / X/HF-line to 450mm)

1 - 15

Student Guide SIPLACE X

Edition 09/2005 10 Modular conveyor

10.2.2.1 Procedure to widen the conveyor to single conveyor mode:

➠ Use SITEST (505) transport menu ’options and configuration’ ’widen conveyor’ to widen conv.

➠ The conveyor rails of conveyor 2 (right side fixed (track 1 left side fix)) are moved to the limits.

➠ The SITEST SW ask for connecting the lifting tables.

To widen conveyor from standard width allow up to 380 mm wide boards (see chapt.chapt.10.2.3)

- in combination with X4/X3/X2-machines.

To widen conveyor from extended width allow up to 450mm wide PCBs (see chapt.10.2.3) for pure

HF- and X-lines.

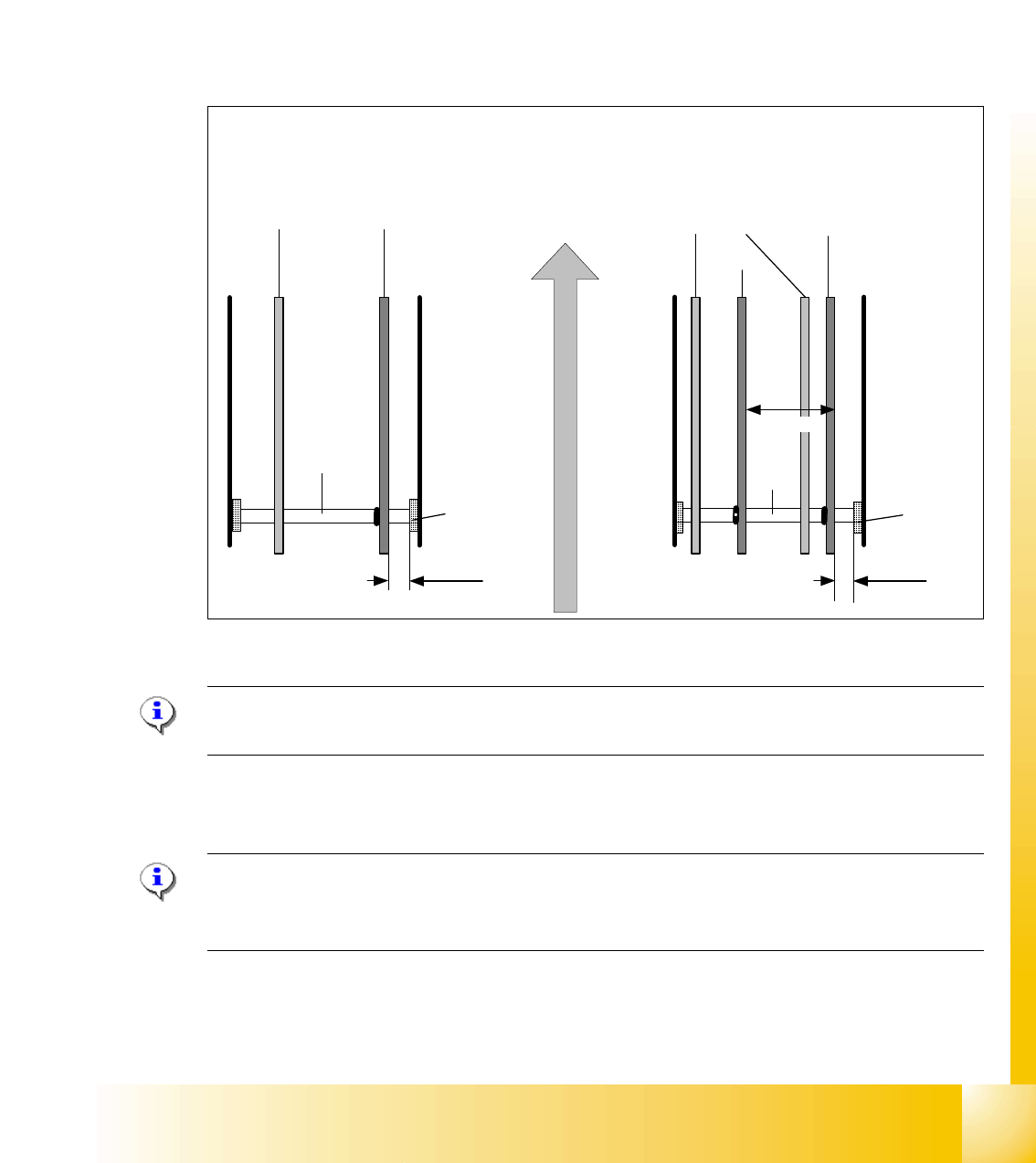

Fig. 10.2 - 5 Setting: "Fixed conveyor rail" SIPLACE HF on ’Standard width’ for X4/X3/X2-combinations

Please Note: he fixed conveyor rail should be adjusted only by SITEST software.

with the aid of the drivers .This ensures that the conveyor runs straight.

10.2.2.2 Connect Lifting tables at the Dual Conveyor

Please Note:

This option is only a mechanical function when you use the dual conveyor as an single conveyor.

The two lifting tables move parallel when they are connected.

➠ Remove lifting table plate: track 2 at placement area 1 and track 1 at placement area 2.

conveyor rails

movable fixed

Dual conveyor

conveyor rails

track 2 track 1

Shaft

support

Single conveyor

Direction of PCB transport

movable

fixed

43mm 38,8mm

251.7 mm

Shaft

support

Shaft

1 - 16

Student Guide SIPLACE X

10 Modular conveyor Edition 09/2005

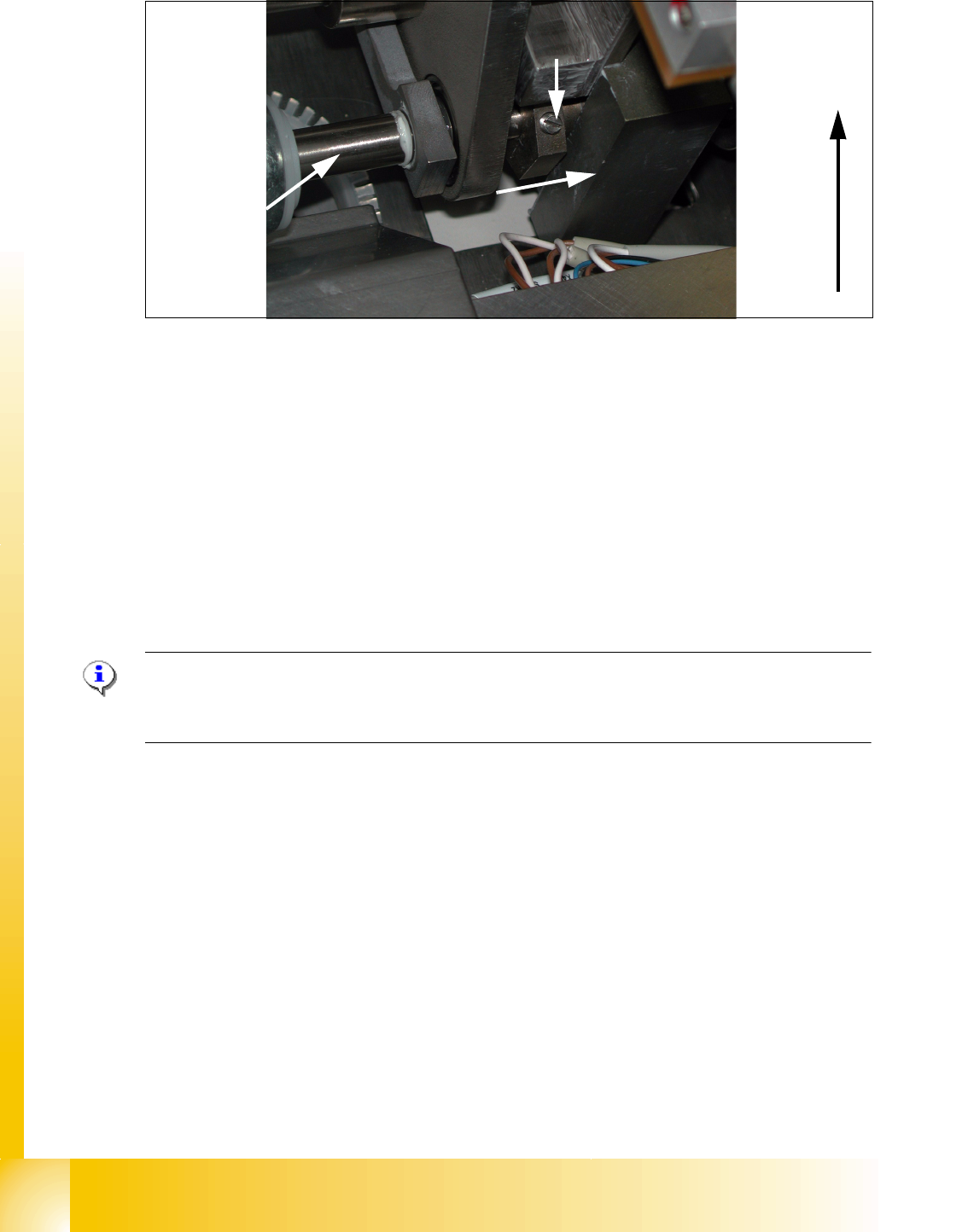

Fig. 10.2 - 6 Lifting table

Procedure to connect the tables:

➠ The sleeve shaft is connected with the piston rod (1)of the pneumatic cylinder. This shaft cou-

ple the second lifting table of the dual conveyor. At this shaft is a hexagon ring with 2 fixing

screws(4). They secure the sleeve shaft in the desired position.

➠ Transport direction (2)

➠ connecting direction (3): loose secure screw(4) and move sleeve shaft to the other shaft

➠ With a screw driver you can push the hexagon part onto the shaft of the lifting table 1.

➠ Do this for Lifting tables in all placement areas. (lifting tables in the PA’s 180° turned.)

➠ Configure the new transport mode at SIPLACE PRO 2.0

Please Note:

Best to connect is without pressure air supply to the lifting table.

This function is supported with Siplace Pro 2.0.

10.2.2.3 Procedure to put back single conveyor mode:

➠ Use SITEST (505) transport menu ’options and configuration’ to put ’widen conveyor’ back to

standard.

➠ The moveable conveyor rail of conveyor 1 (right side fixed (track 1 left side fix)) is moved to a

small conveyor width.

➠ The SITEST SW ask to disconnect the lifting tables - Do so-.

➠ The SITEST SW move now with transportcontroll SW the fixed rail of conveyor 2 (right side

fixed (track 1 left side fix)) back to the standard position.

➠ Now adjust conveyor width of both tracks to desired values.

Lifting table of

conveyor track 2
