10.3.2 Transport control board TSP 301 with Siemens interface(Option)
Following modification are necessary for using the Siemens interface:
(1) Application: no modification.
(2) JumperJ1 / J2: have to change (see below).
(3) Disconnect the connector X3 and X4 on the TSP 301!
(4) Connect the Siemens interface cable on the connector X1 and X2.
Please Note:
The 10 pin Locking-Clip connector of the SMEMA-connector have to disconnected from the
TSP301! Destruction of the TSP board!

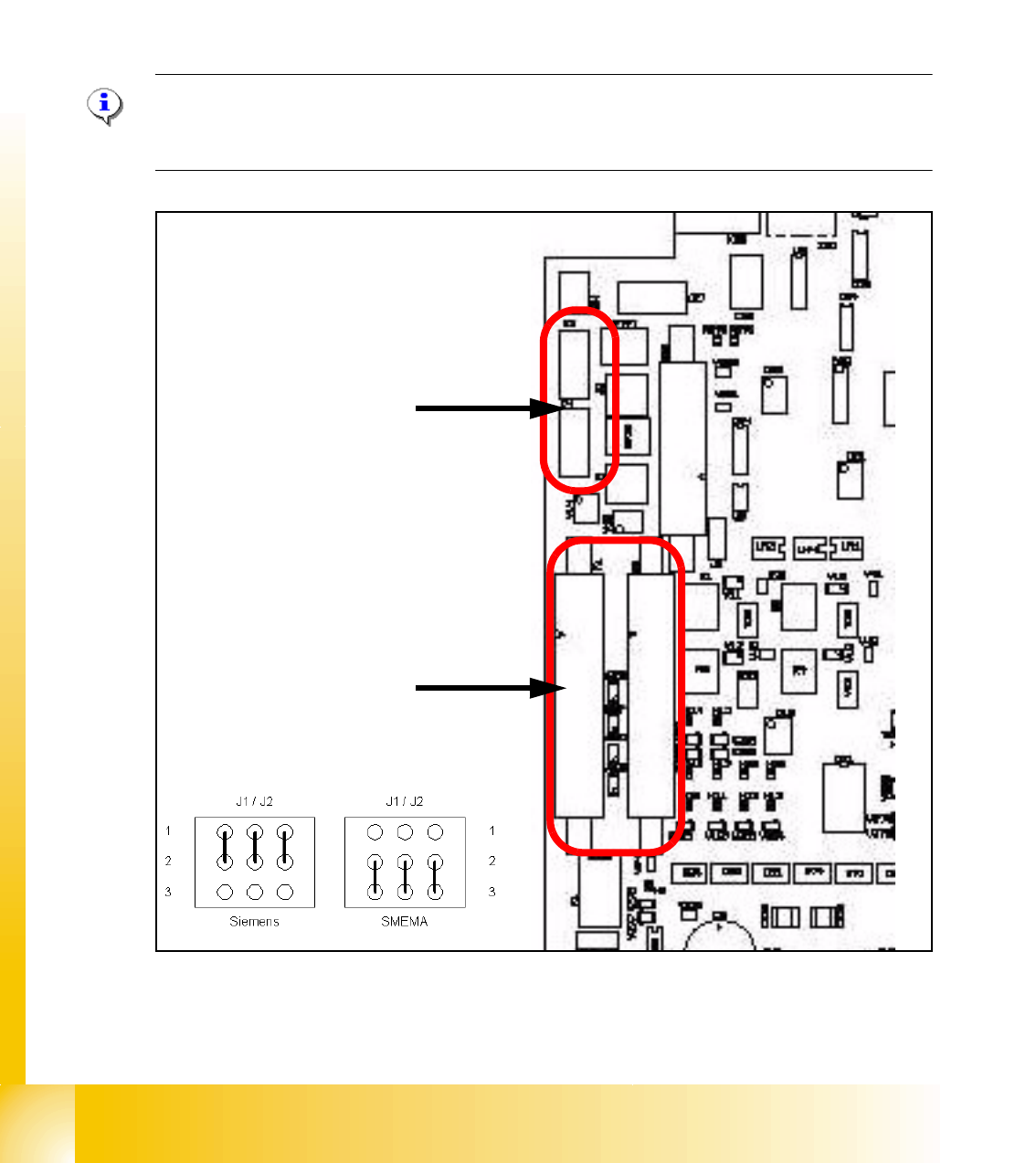

Fig. 10.3 - 2 TSP 301 SMEMA --> Siemens
➠ 10 pin connector for SMEMA- Interface
X3 Previous Station
X4 Next Station
➠ Connector for Siemens-Interface
X1 Previous Station
X2 Next Station
1 - 35
Student Guide SIPLACE X
Edition 09/2005 10 Modular conveyor
35
10.3.3 LED display on the TSP 301 conveyor control
PCB-Handling interface previous station
track1 with diagnosis LED’s PCB-handling
10
PCB-Handling interface following station
track1 with diagnosis LED’s PCB-handling
10
10
PCB-Handling interface previous station
track2 with diagnosis LED’s PCB-handling
10
PCB-Handling interface following station
track2 with diagnosis LED’s PCB-handling
10
10
LED description see Fig.11.3.4 10
10
Fig. 10.3 - 3 Conveyor control TSP 301
