1 - 22 S tudent Guide SIPLACE X 1 1 Sitest Edition 09/2005 22 1 1.2.9 Calibrate the PCB reference corner – Choose "PCB reference corner ..." Fig. 1 1.2 - 9 Calibrate the PCB reference corner Fig. 1 1.2 - 10 PCB…
1 - 21
Student Guide SIPLACE X
Edition 09/2005 11 Sitest
21
11.2.7 Calibrate the conveyor edges
– Choose "conveyor edges"
fThis function will be directly done, there are no further adjustments necessary.
Description for calibrating the conveyor edges see chapter 11.2.14.1
11.2.8 Calibrate the conveyor widths
– Choose "conveyor width..."

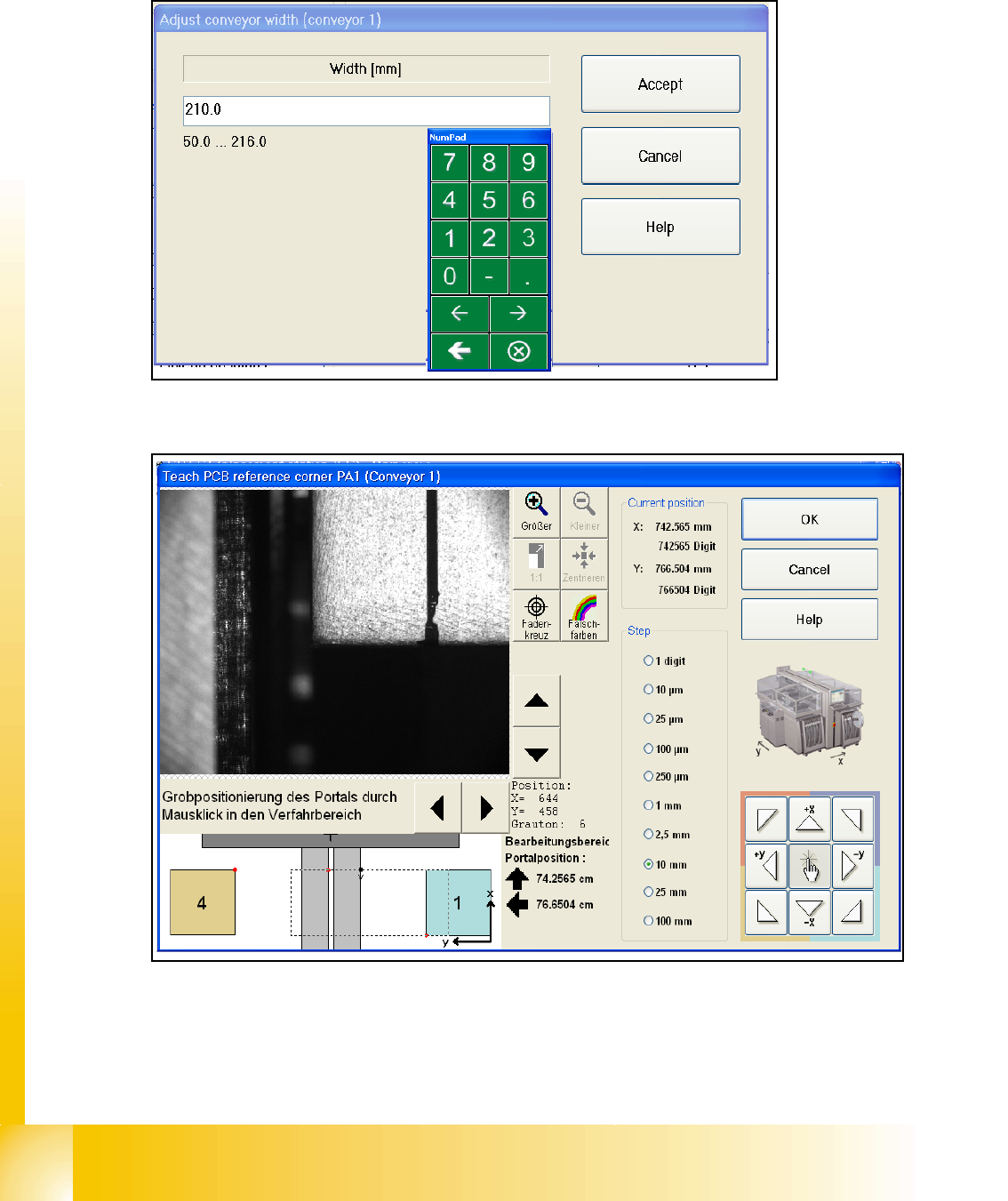

Fig. 11.2 - 8 Sub menu calibrate the conveyor width
Description for calibrating the conveyor width see chapter 11.2.14.2
1 - 23
Student Guide SIPLACE X
Edition 09/2005 11 Sitest
23
11.2.10 Calibrate the Pick up position
– Choose "pick-up positions..."

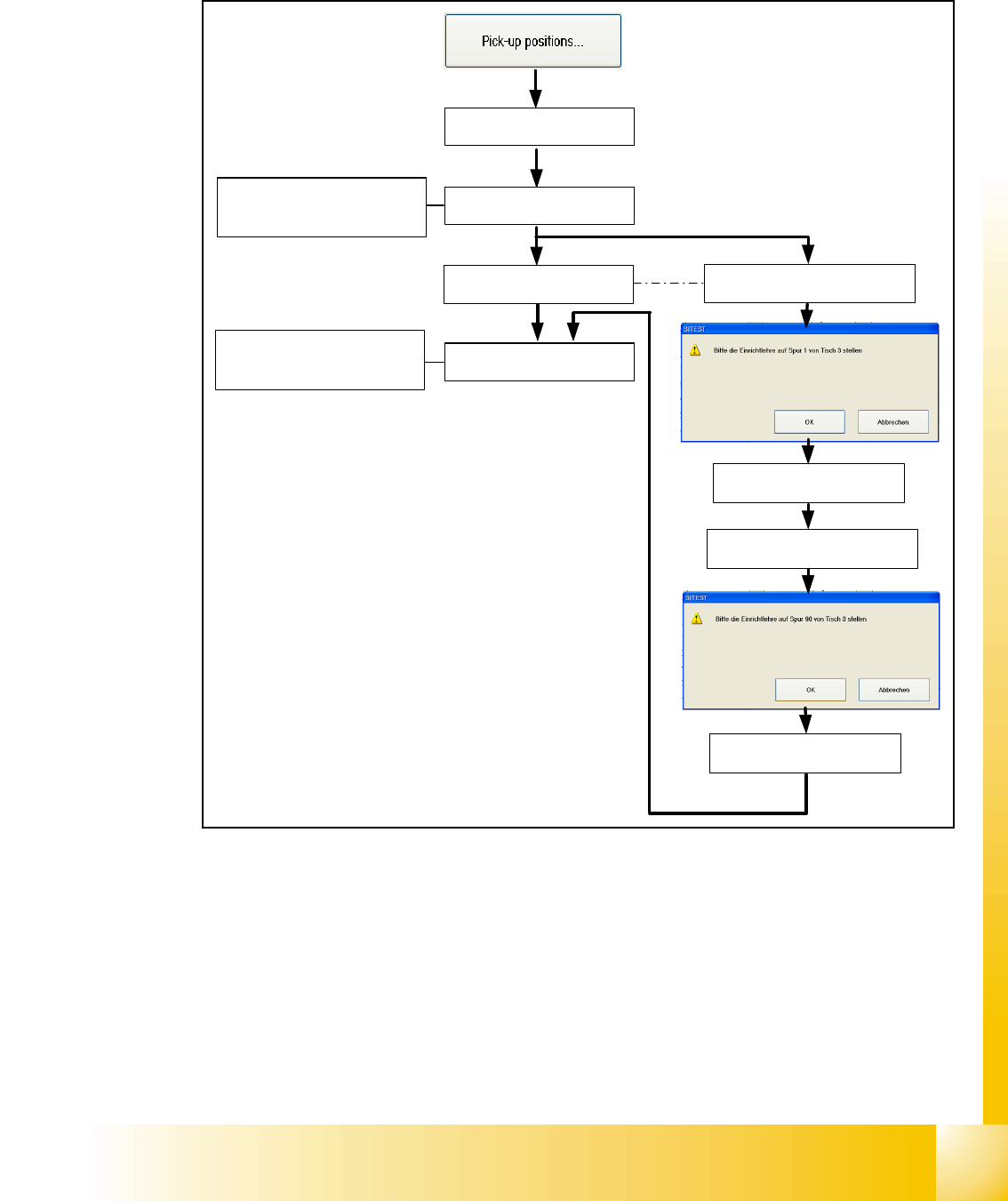

Fig. 11.2 - 11 Calibrate the Pick up position
There are a few opportunities to put on different table types on the machine. The pick up position
of the X- tables are automatically calibrated (Calibrate fiducials for pick up position are mounted
on the table). The S- tables must be manually calibrated with the adjusment gauge like it was at
the older machine types. If there is a MTC2 placed at location 2 or 4 this location will be automat-
ically skipped during calibrating the pick up position.
Description for calibrating the pick up positions see chapter 11.2.14.4 and 11.2.14.5
X- table 1 will be
automatically calibrated
If a MTC2 is placed at this
location, this step will be
automatically skipped
If a S- table 3 is placed, put the
adjustment gauge on track 1
Calibrate Track 1
Calibrate Track 90
If a S- table is placed, put the
adjustment gauge on track 90
If a MTC2 is placed at this
location, this step will be
automatically skipped
X- table 2 will be
automatically calibrated
X- table 3 will be
automatically calibrated
X- table 4 will be
automatically calibrated
