1 - 30
Student Guide SIPLACE X
11 Sitest Edition 09/2005
30
11.2.14 Calibrate and teach machine positions
New function for calibrate the positions is the teach menu before calibrate, so that you can teach
the correct position for a successfull calibration.
11.2.14.1 Conveyor edges (Conveyor rails)
This new calibration procedure is necessary for the modular conveyor system.
With the modular conveyor are all conveyor rails adjustable. For adjustment the conveyor rails we
use one stepper motor which is connected via a toothed belt to the driver unit. The position of the
rails are recognize with a BERO and therefore we have different switch point on each conveyor
rails. With this calibration the switch points are optimized of the entire travel range of the width
adjustment. The calibration is necessary that all three Driver units move the conveyor rails paral-
lel.
Automatically Sequence (Transport mapping):
– Initialize the driver unit, move to the right side (limit switch)
– Driver unit recognize the fixed conveyor rail (rails dual conveyor) move the conveyor rails a
standard position of 55mm.
– The driver unit move the moveable conveyor rail step by step (10mm steps) and determined
the offset of the rail positions for the three drivers.
– This calibration of the rail position will be done for width adjustment wider and smaller.
– The results are saved in the conveyor controller as correction values and taken into account
later when setting and measuring the conveyor width.
Note:
The calibration must be done for conveyer 1 and 2.
11.2.14.2 Conveyor width calibration
The conveyor width calibration determine the width with a 100mm wide standard PCB board.
11.2.14.3 PCB reference corner
– Select gantry 1 or 2.
– Select PCB reference corner position right or PCB reference corner position left (dual con-
veyor)
– Moves the active gantry with the PCB camera over the reference corner position and switches
the screen display to the PCB camera for checking purposes.
The reference corner position is visible in the camera's field of view. Teaching mean now the
camera center is to align with the right corner of the PCB.
1 - 31
Student Guide SIPLACE X
Edition 09/2005 11 Sitest
31
11.2.14.4 Pick up position (Calibrate the component table Track 1- 90)
Determines the X and Y positions for the table 1up to 4 with the relevant track 1 and 90.
Fig. 11.2 - 16 Calibrate the Component table
11.2.14.5 Pick up position (Calibrate the X- tables Track 1- 40)
The calibration of the X- tables is the same like it is with the S- tables. The only differece is that
the calibration fiducials are directly mounted on the X- tables, so the calibration is automatically
done during calibrate the pick up position (no adjustment gauge necessary). Before pick up this
fiducials will be optical centered by the PCB- camera.
1 - 32
Student Guide SIPLACE X
11 Sitest Edition 09/2005
32
11.2.15 PCB mapping
With the PCB mapping the linearity of the X- and Y-guidance for PCB-camera movement is mea-
sured in the placement area.
The PCB-camera center the cross fiducials on a high precise glass plate. This glass plate is cali-
brated with a measurement machine and this data´s are considered in the measurement se-
quence.
Preperation mapping: 11
➠ At the single conveyor the SITEST move the transport rails to 508mm wide the mapping plate
is 90 degree turned.
➠ At dual conveyor the SITEST SW move all the transport rails depend of the conveyer which
is selected the conveyor for mapping to 450 mm wide the other track to 0mm. This allow to
used the Dual conveyor as a single conveyor. The Mapping must be carried out for the maxi-
mum conveyor width.
➠ To prepare the PCB and RV Mapping the SITEST SW move automatically the conveyer rails
that the mapping plate fit to the the referring track.
➠ The C&P6/12 Heads have to have 956 nozzles, the C&P20 head 1235 nozzles and the Twin
head 517 nozzles for mapping.
➠ The calibration tools are in the calibration pocket.

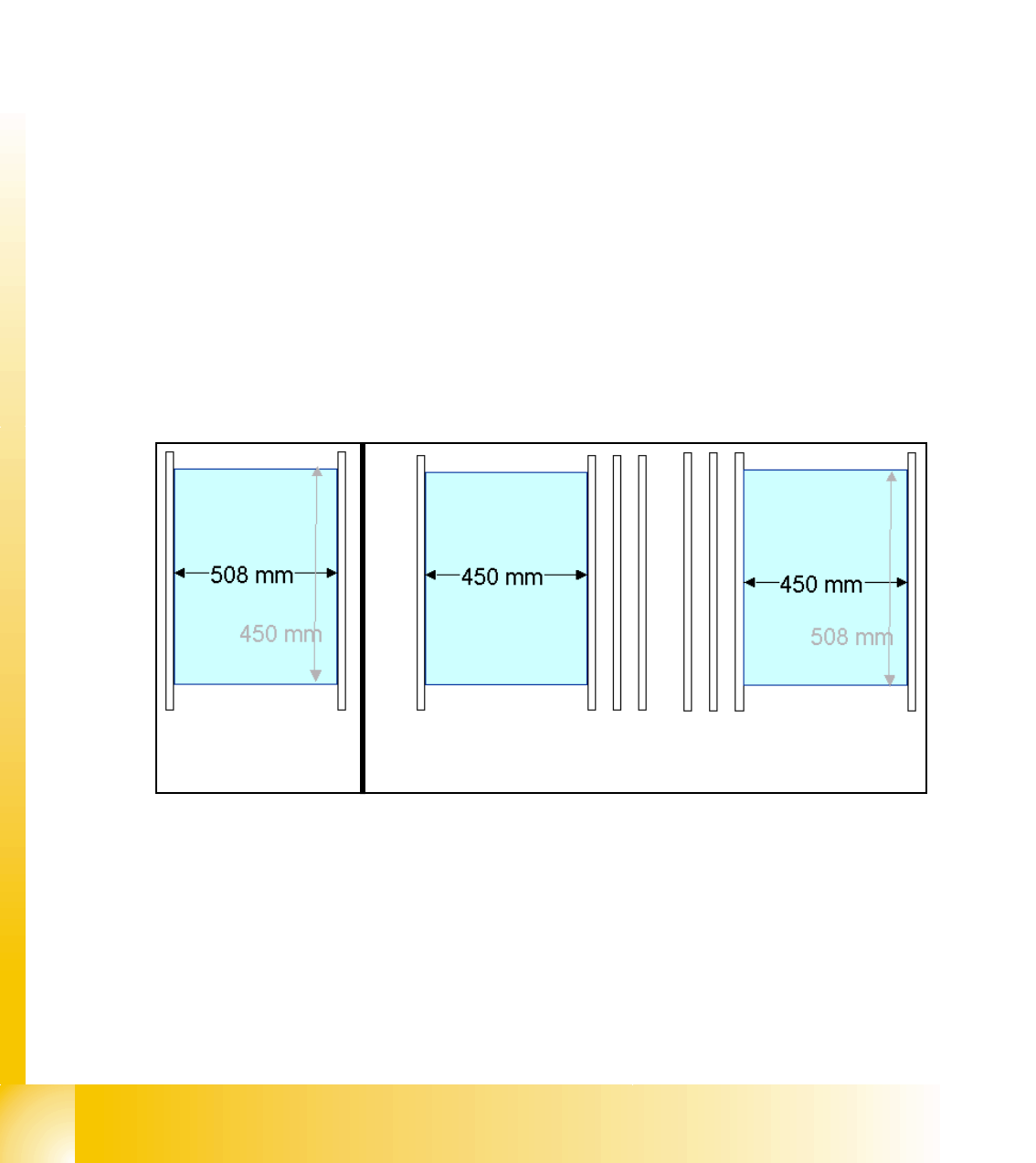

Fig. 11.2 - 17 Position mapping plate and conveyor rail position for single and dual conveyor
Procedure: 11
➠ insert the mapping disk at the station computer to prepare and copy the nominal data for this
individual mapping plate.
➠ Put the mapping plate in the input conveyor for placement area 1 or in the intermediate con-
veyor for placement area 2.
➠ Now appears the teach menue to teach the fixed PCB corner OK.
Single conveyor
Dual conveyor
Track 2 Track 1
