1 - 6

Student Guide SIPLACE X

12 Siplace X - Head Modularity Edition 09/2005

12.1.2 Head exchange

1. Make a backup for the exist

machine configuration.

2. Machine data - backup with the

Sitest and create a folder

e.g. Backup and store the folder

SRCMA.

4. Confirm the configuration,

machine will shutdown

automatically

Switch off the machine!

6. Mechanical works:

Mount the Head, adapterboard

and Nozzlechanger.

7. Switch ON the machine

Look to the error messages

Set the nozzle on the head and

check the nozzle changer.

Note: Save the zero point correction from the

EEPROM to the Achsver.ma.

Check the firmware!

8. Siplace Pro computer:

Make a copy of the exist basic set

up and configure into the copy the

new head type and

nozzlechanger

Note: As a result the new configuration will be

send to the station.

9. Siplace Pro computer:

Send a placement program, e.g.

with one component to the

station.

10. Station:

Check the axis dynamic and

calibrate all heads and cameras.

11. Station:

Start the production.

Note: Stop the current job from Siplace Pro

before you shutdown the machine.

5. Mechanical works:

Head, Nozzlechanger and

adapterboard exchange.

Note: Don`t change the adapterboard if you

change from C&P6 < -- > C&P12 head. Change

the Servo amplifier and don`t forget the DC/DC

converter for C&P 20 head.

Note: Preparations of the head plate (sealing with grub

screw, attention different length of the head screws)

Height adjustment nozzlechanger and different pressure

air supply for C&P20 head!

C&P20 X-Feeder Docking unit

3. SITEST: Machine configuration

(Head type, nozzle changer,

cameras).

1 - 7

Student Guide SIPLACE X

Edition 09/2005 12 Siplace X - Head Modularity

12.1.3 Menu Head exchange

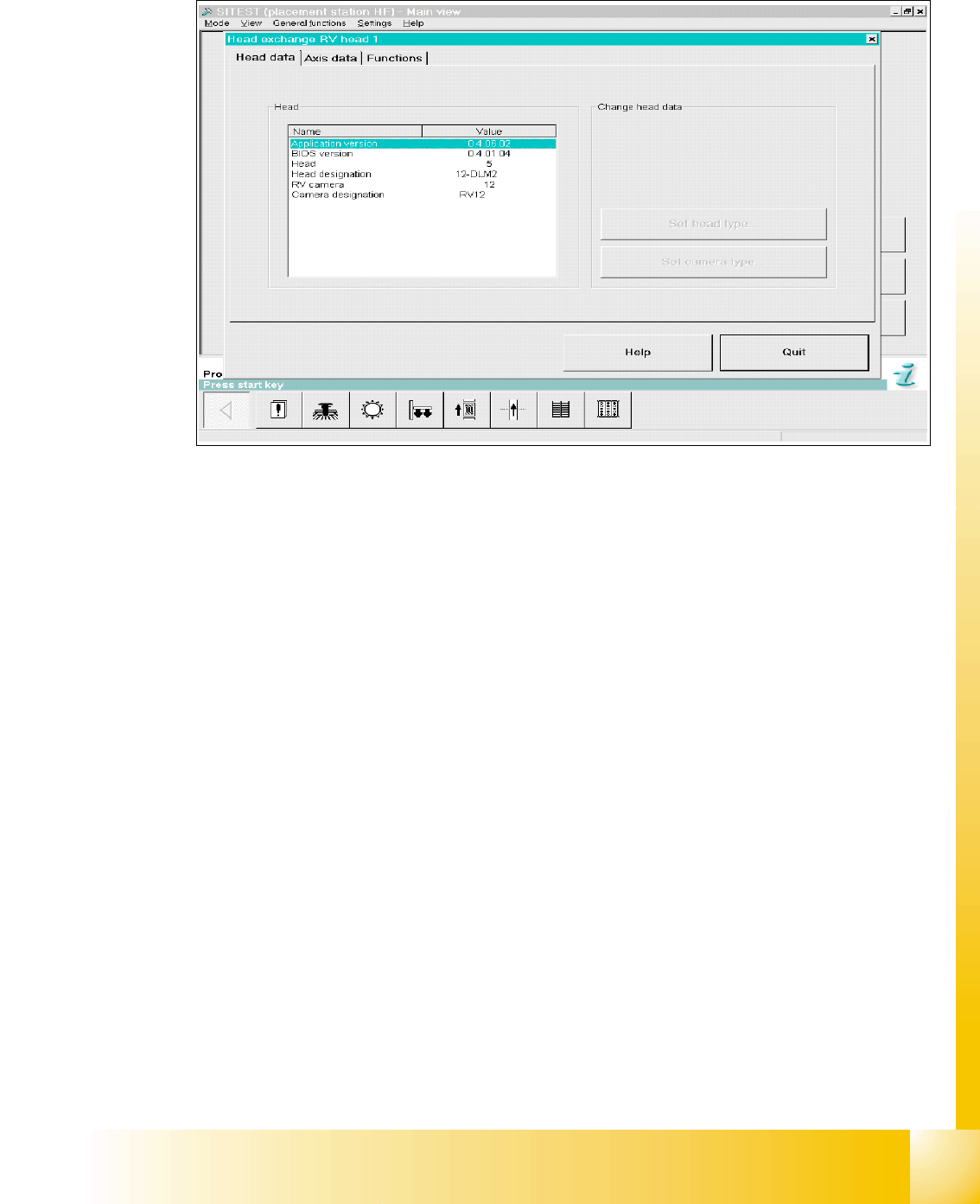

Fig. 12.1 - 4 Menu "Head exchange" --> "Head data"

Versions information and head type will be read automatically from the imtermediate board. With

the first boot sequence after the reconfiguration of the head types could be appears the message

of changing head types then the Buttons on the right site are active. Now you can edit and corret

the head typ and camera typ.

Overview head type numbers: 12

Head number ‘5’ is C&P 12

Head number ‘6’ is C&P 6

Head number ‘4’(7) is TWIN head

Head number ‘8’ is C&P 20

1 - 8

Student Guide SIPLACE X

12 Siplace X - Head Modularity Edition 09/2005

Fig. 12.1 - 5 Menu "Head exchange" --> "Axis data

(1) Read data from “head memory” write to Achsver.ma.

(2) Read data from Achsver.ma (MA data file) and write to “head memory”.

(3) Data from selected axis which are currently in the EEPROM

(4) Data from selected which are currently in the Achsver.ma file (edit).

(5) Choose head axis

(6) Link to this menu in placement head, axis reference run and head reference run.
