1 - 15 S tudent Guide SIPLACE X Edition 09/2005 12 Siplac e X - Head Modularity 15 12.5.3 T win Head
1 - 14
Student Guide SIPLACE X
12 Siplace X - Head Modularity Edition 09/2005
14

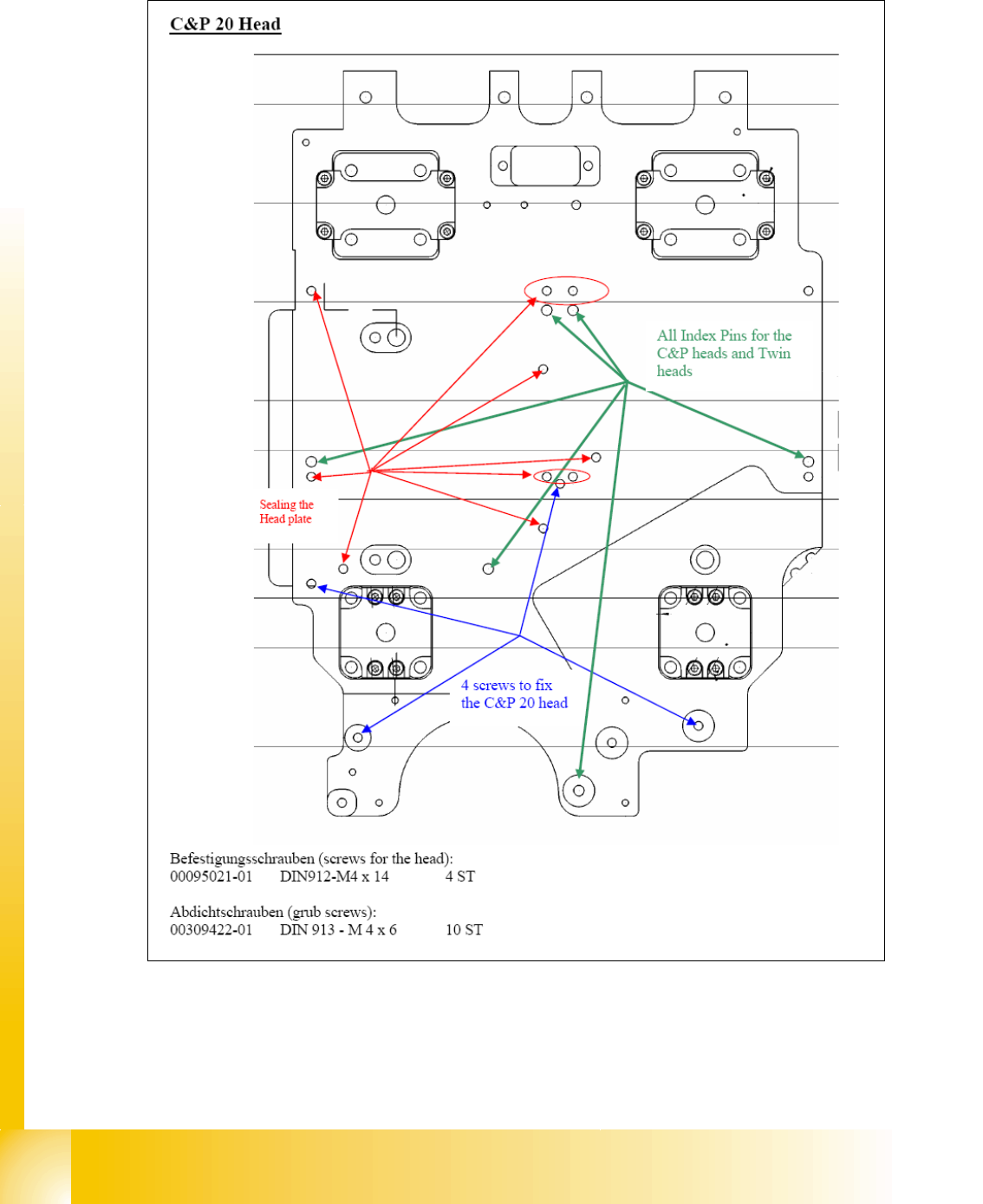

12.5.2 C&P 20 head
1 - 15
Student Guide SIPLACE X
Edition 09/2005 12 Siplace X - Head Modularity
15

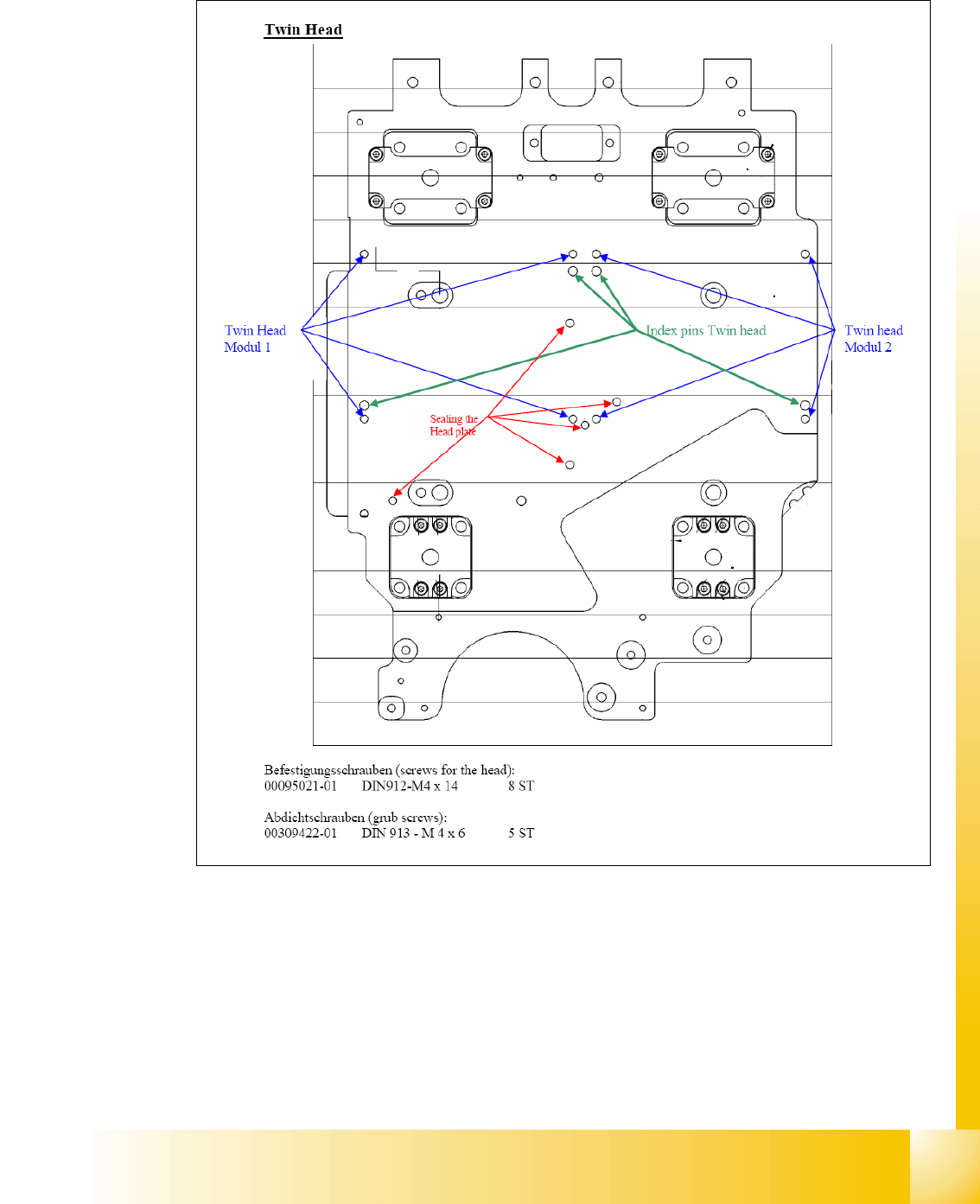

12.5.3 Twin Head
1 - 16
Student Guide SIPLACE X
12 Siplace X - Head Modularity Edition 09/2005
16
12.6 Pressure air connector for the placement heads
We will have two different pressure air connectors for the heads. That‘s depend on the trailling
cable. The trailling cable on the gantry CFK02 and CFK04 use the old one and the gantry CFK06
with the new trailling cable which is prepare for the option vacuum pump, use the new pressure
air connector.
Rear view pressure air distributor
Input:
7- pneumatic tubes
Front view pressure air distributor
Output:
C&P 6/12 Head
C&P 12/6 Head
C&P20 Head
Twin head
