1 - 1 1 S tudent Guide SIPLACE X Edition 09/2005 13 MTC 2 11 Fig. 13.1 - 14 No loads warning by the feed axis Fig. 13.1 - 15 Information labels above the guides for the fork lift truck Fig. 13.1 - 16 Information l abel f…
1 - 10
Student Guide SIPLACE X
13 MTC 2 Edition 09/2005
10
Fig. 13.1 - 9 Warning labels by the toothed belts of the lifting axis and feed axis
Fig. 13.1 - 10 Warning labels in the feeding area and the lifting frame area
Fig. 13.1 - 11 Warning labels in the refill area (behind the protective doors)
Fig. 13.1 - 12 Information label at the ground terminal
Fig. 13.1 - 13 Warning labels on the motor controller covers (below the enclosure)
1 - 11
Student Guide SIPLACE X
Edition 09/2005 13 MTC 2
11
Fig. 13.1 - 14 No loads warning by the feed axis
Fig. 13.1 - 15 Information labels above the guides for the fork lift truck
Fig. 13.1 - 16 Information label for the cranking device
1 - 12
Student Guide SIPLACE X
13 MTC 2 Edition 09/2005
12
13.1.5.2 Safety instructions for transporting the MTC 2
➠ The MTC 2 should only be transported over any significant distance using a suitable pallet jack
or fork lift truck.
➠ If the fork lift or pallet jack has adjustable forks, the MTC 2 must be lifted at the extremities of
the guide rails.
➠ The forks should only be inserted into the guides from the side on which tower 1 is located.
➠ Follow the instructions in section 3.1 ”Transporting the MTC 2".

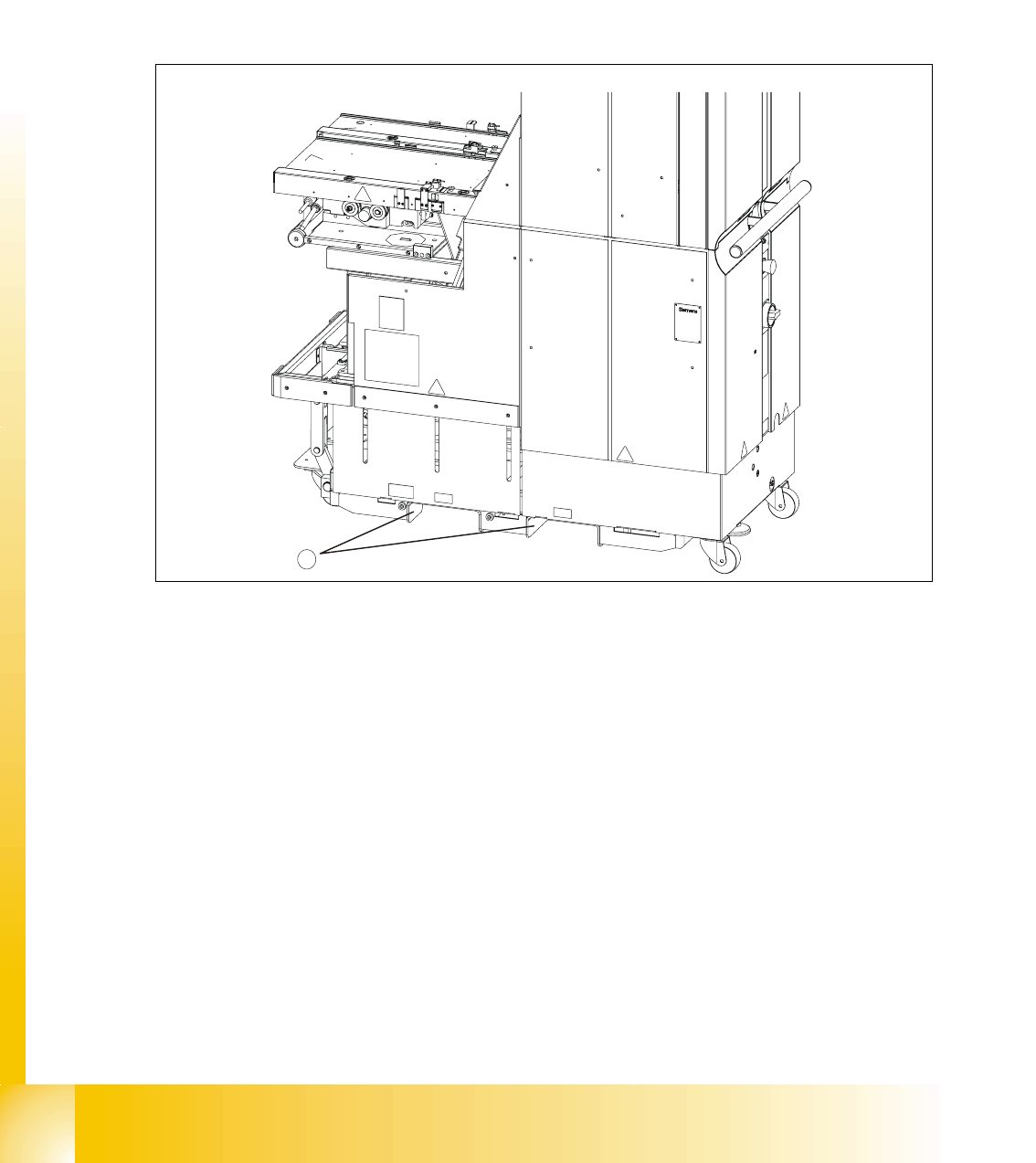

Fig. 13.1 - 17 Safety instructions for transporting the MTC 2
Key
1. Guides
13.1.5.3 Residual voltages at the inverters when the MTC 2 is switched off
After switching off the MTC 2
– by pressing the EMERGENCY STOP button,
– by opening a protective door or
– via the SIPLACE station
it takes about 5 minutes before the intermediate-circuit voltages of the inverters have discharged
down to non-hazardous residual voltages.
When the MTC 2 is switched off, the contactor safety combinations continue to be supplied with
24 V AC from the SIPLACE station.
