1 - 35
Student Guide SIPLACE X
Edition 09/2005 2 Overview
35
Between star stations 11 and 12 2
The optional "presence" and "height" of the component at the nozzle is checked by the compo-
nent sensor.
2.2.10.3 Function Overview for Star Stations 1 - 12
Fig. 2.2 - 21 Function overview of star stations 1 - 12
Star station 1:pick up, place or reject component
Star station 2:no function
Star station 3:no function
Star station 4, 5 and 6:no function
Star station 7:optically center component
Star station 8:no function
Star station 9:rotate the components
Star station 10:service position for sleeves and nozzles
Star stations 11 and 12:no function (optional component sensor)
1-12segment numbering
1 - 36
Student Guide SIPLACE X
2 Overview Edition 09/2005
36
2.2.10.4 Nozzle changer for 12 segment C&P head
As an option on placement heads, a nozzle changer can be installed for each collect&place head.
This enables the nozzle configuration to be changed rapidly, thus allowing the collect&place head
to be quickly adapted to the needs of the placement process.
The nozzle changer consists of at least one, and up to ten magazines, each with twelve nozzle
garages (see Fig. 2.2 - 22). The magazines are seated on a common support and each magazine
is centered using two parallel pins and fixed in place with a spring hook.
Optionally, each garage can be configured with a different nozzle type.

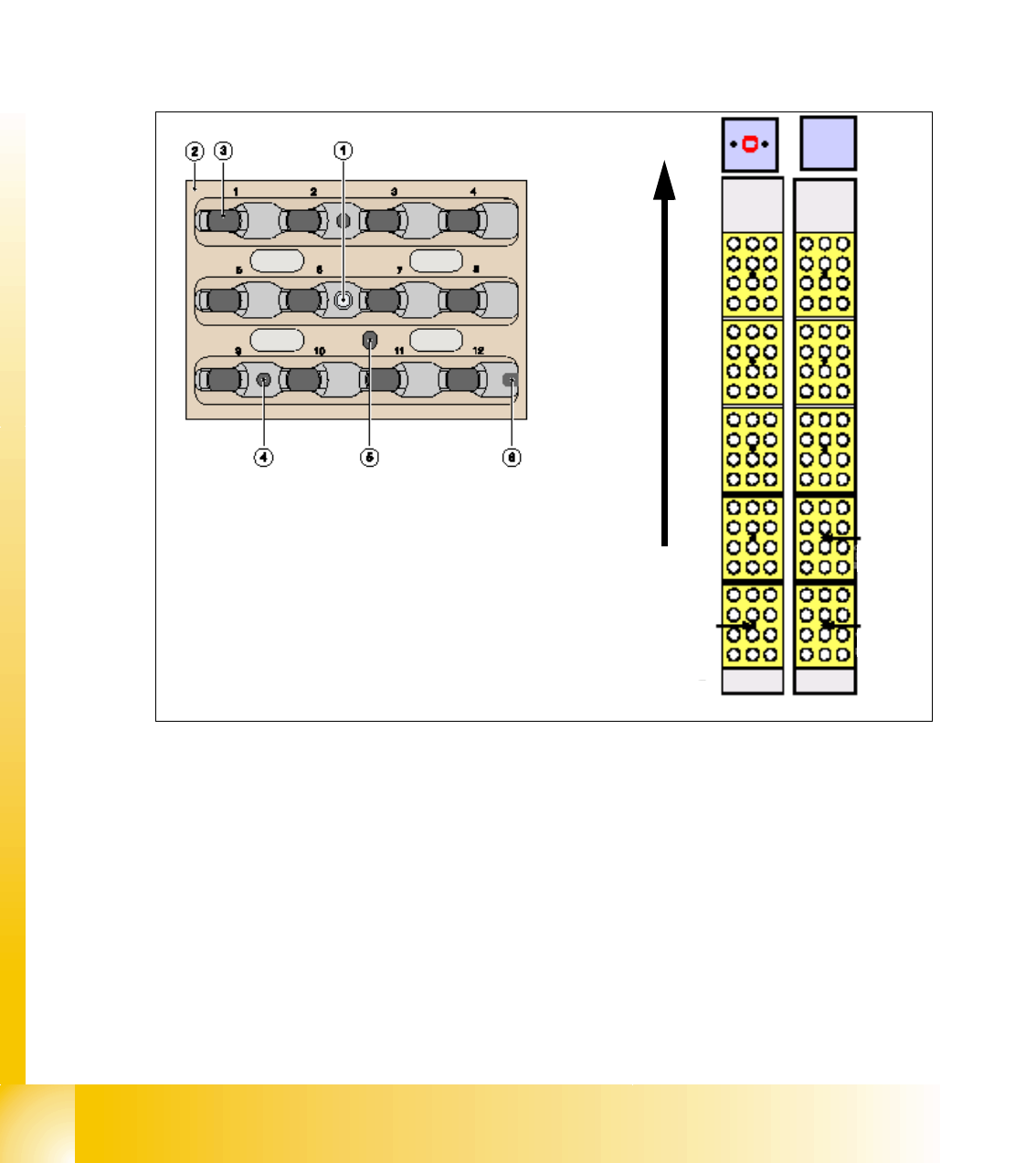

Fig. 2.2 - 22 Nozzle changer and nozzle magazine for 12-segment C&P head
Key
(1) Calibration fiducial (2) Nozzle garage
(3) Locking plate (4) Hole for the parallel pin to center the
magazine
(5) Hole for the parallel pin to slide the locking
plate
(6) Slot for the parallel pin to center the mag-
azine
Magazin 6
Magazin 2
Magazin 1
Direction of trans-
port
1 - 37
Student Guide SIPLACE X
Edition 09/2005 2 Overview
37
2.2.10.5 Nozzle changer for 6 segment C&P head
The nozzle changer for a 6 segment C&P head consists of at least one, and up to twelve maga-
zines, each with six nozzle garages (see Fig. 2.2 - 23). The magazines are seated on a common
support and each magazine is centered using two parallel pins and fixed in place with a spring
hook.
Magazines can be installed for the 9xx and 8xx nozzle types. These magazines can be arranged
as required.
Fig. 2.2 - 23 Nozzle changer 6-segment C&P head
Fig. 2.2 - 24
Magazin for 6
nozzle Typ 8xx
Magazin for 6
nozzle Typ 9xx
Direction of trans-
port
(1) Component reject position
(2) Nozzle reject position
