1 - 73 S tudent Guide SIPLACE X Edition 09/2005 13 MTC 2 73 Notes:
1 - 72
Student Guide SIPLACE X
13 MTC 2 Edition 09/2005
72
13.3.7 Spare parts list for MTC1
Artikelnummer/
Part number Beschreibung Description
00373473-01 Abdeckkappe Vorzentrierung SLIDING DISC FOR PRECENTERING 1 ST 1 ST
00372620-01 AC-Motor Hubachse m. Zahnriemenscheibe AC Motor Lifting Axis 1 ST 1 ST
00372639-01 Anschlußkabel Leistung MTC Connecting Cable: Pow er MTC 1 ST 1 ST
00354917-02 Ausrückung Mitnehmer kpl. Disengaging Driver, complete 1 ST 1 ST
00372636-01 Crash-Lichtschranke konf.MTC2 Crash Light Barrier,configured MTC2 1 ST 1 ST
00372640-01 Durchlichtschranke FMT in Kassette MTC2 WTC in Cassette Light Barrier 1 ST 1 ST
00372616-01 Einführschienen Kassettentisch Guide Rails Cassette Table 1 ST 1 ST
00372622-01 Endschalter max. Position konf. Max. Position Limit Sw itch, configured 1 ST 1 ST
00372625-01 Endschalter min. Position konf. Min. Position Limit Sw itch, configured 1 ST 1 ST
00372606-01 Entriegelung FMT MTC 2 Unlock Device WTC 1 ST 1 ST
00372614-01 FMT XL mit Haltemagnete WTC XL w ith RETAINING MAGNET 3 ST 1 PAK
00372615-01 Halteleiste für JEDEC-Magazin Holder JEDEC-Tray 1 ST 1 ST
00372629-01 Kabel Ausrückung Mitnehmer Turm 1 Cable: Disengaging Driver Tow er1 1 ST 1 ST
00372633-01 Kabel Ausrückung Mitnehmer Turm 2 Cable: Disengaging Driver Tow er2 1 ST 1 ST
00372610-01 Kabel Crashsens. Zuführa. 1 Cable: Crash Light Barrier Tow er1 1 ST 1 ST
00372653-01 Kabel Crashsens. Zuführa. 2 Cable: Crash Light Barrier Tow er2 1 ST 1 ST
00372641-01 Kabel Entrieg. FMT Turm 1 Cable: Unlock Device WTC Tow er1 1 ST 1 ST
00372643-01 Kabel Entriegelung FMT Turm2 Cable: Unlock Device WTC Tow er2 1 ST 1 ST
00372644-01 Kabel Hubachse Cable: Lifting Axis 1 ST 1 ST
00372632-01 Kabel Zuführachse Cable: Feed Axis 1 ST 1 ST
00372607-01 Kassette XL CASSETTE XL 1 ST 1 ST
00372612-01 Kurbel kpl. MTC2 Crank,complete MTC2 1 ST 1 ST
00372635-01 Lichtschranke Ruheposition Hubachse Neutral Position Light Barrier Lifting A 1 ST 1 ST
00372637-01 Lichtschranke Ruheposition Zuführachse Neutral Position Light Barrier Feed Axis 1 ST 1 ST
00372611-01 Linearführung Zuführachse MTC2 Linear Guide Feed Axis MTC2 1 ST 1 ST
00372648-01 Maschinenfuss mit Mutter Machine foot 1 ST 1 ST
00372624-01 Microschalter Turm 1 Micro Sw itch Tow er1, configured 1 ST 1 ST
00372628-01 Microschalter Turm 2 konf. Micro Sw itch Tow er2, configured 1 ST 1 ST
00372617-01 Mitnehmer Hebel Lever Driver 1 ST 1 ST
00372608-01 Mitnehmer kpl. MTC2 DRIVER COMPLETE MTC2 1 ST 1 ST
00373139-01 MTC2 Controllerboard kp C167-CONTROLLERBOARD COMPLETE 1 ST 1 ST
00372621-01 Netzteil 24V DC MTC2 Pow er Supply 24V DC MTC2 1 ST 1 ST
00372638-01 Not-Aus-Taster Emergency Stop Button 1 ST 1 ST
00372649-01 NOT-HALT-Schaltgerät Emergency Stop Sw itchgear 1 ST 1 ST
00372651-01 Sensor Griffabfrage WTC Handle Sensor 1 ST 1 ST
00372645-01 Sensor Riemenabfrage Hubachse Toothed Belt Sensor Lifting Axis 1 ST 1 ST
00372647-01 Stecker mit Kabel (MTC2) Plug w ith Cables MTC 2 1 ST 1 ST
00372646-01 Stecker mit Kabel (Zenrierrahmen) Plug w ith Cables Docking Station 1 ST 1 ST
00372609-01 Umlenkrolle vorne kpl. MTC2 Front Deflection Roll, complete MTC2 1 ST 1 ST
00372652-01 Universal-Anpass.-Spartransf. Transformer Pow er Supply 1 ST 1 ST
00372613-01 Verriegelung FMT XL MTC2 Interlock WTC MTC2 1 ST 1 ST
00372627-01 Zahnriemen AC-Motor Toothed Belt AC Motor 1 ST 1 ST
1 - 71
Student Guide SIPLACE X
Edition 09/2005 13 MTC 2
71
13.4 Masterdrives
13.4.1 Operating the master drive with the parametrization unit (PMU)
The PMU parameterizing unit enables parameterization, operator control and visualization of the
converters and inverters directly on the unit itself.

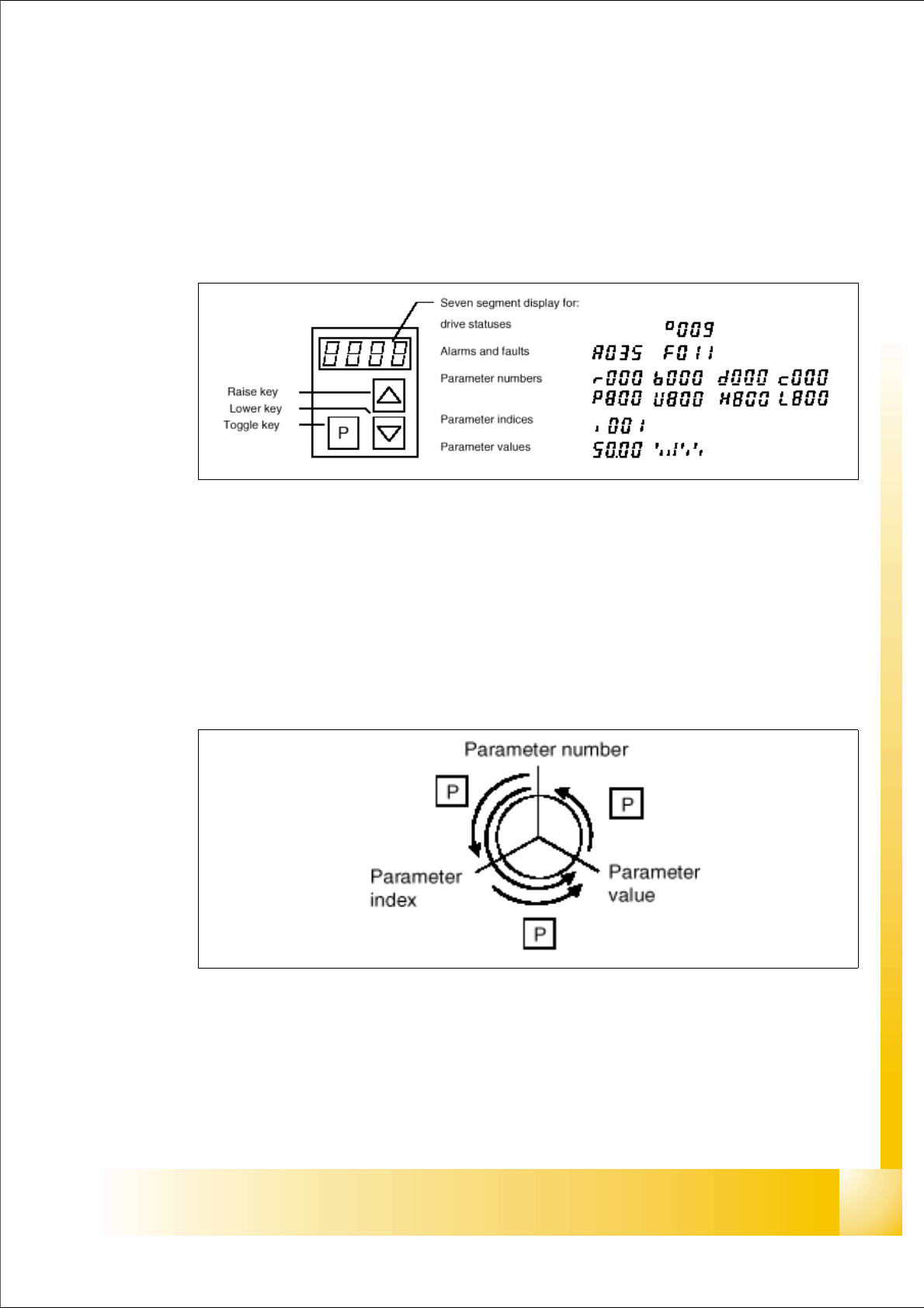

Fig. 13.4 - 1 PMU parameterizing unit
With the toggle key, you can change over:
– from the parameter number to the parameter index
– from the parameter index to the parameter value
– from the parameter value to the parameter number
If the parameter is not indexed, you can jump directly from the parameter number to the parameter
value.
Fig. 13.4 - 2 Toggle key of the PMU
