IT Feeder System 1-15 Figur e 1-17. Setup Part Shor tage W arni ng dialog box <Enable warning> check box Check whether to use the part short warni ng or not. When it is checked and the part count drops belo…
Samsung Intelligent Feeder System

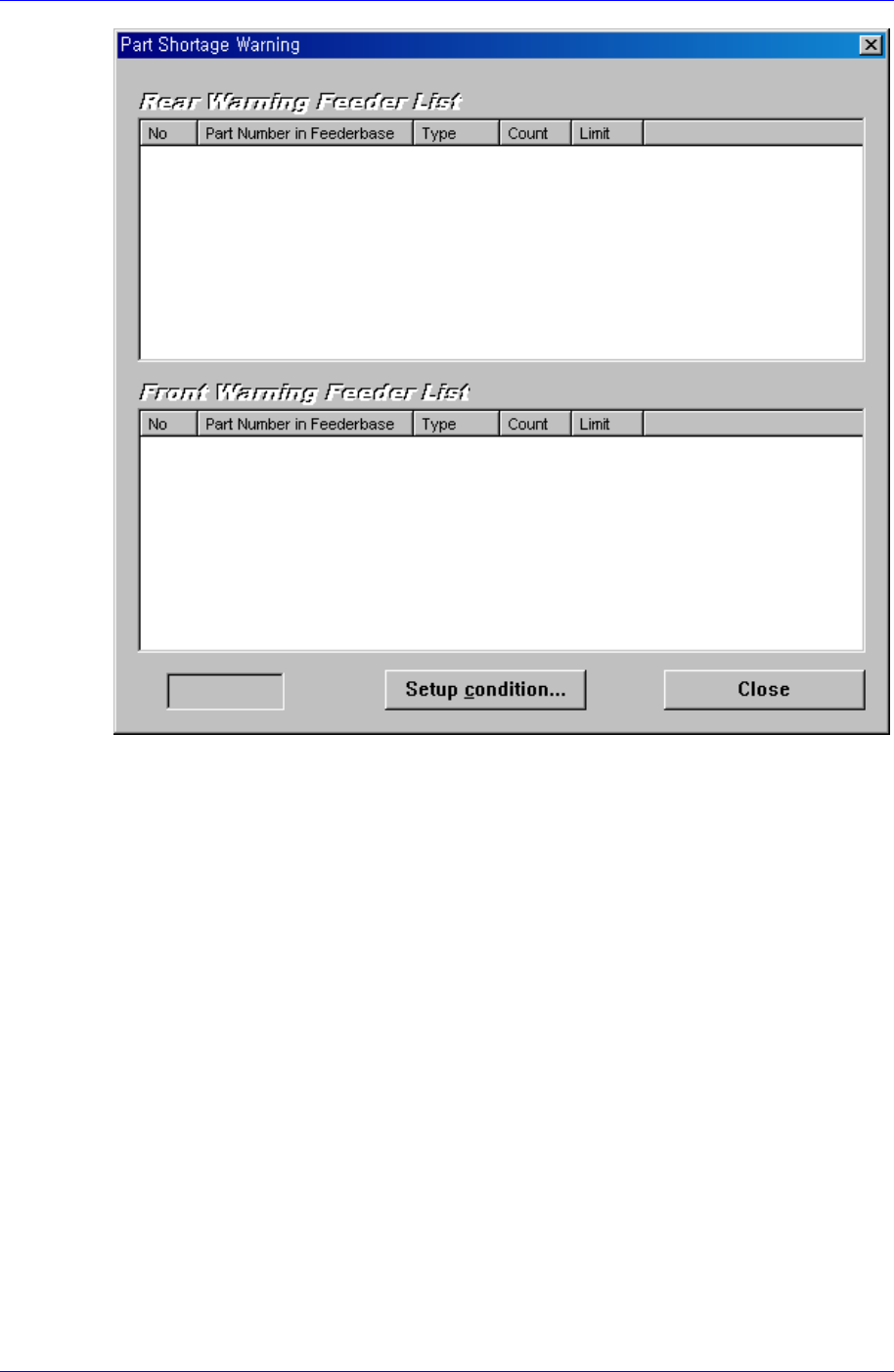

Figure 1-16. Part Shortage Warning dialog box
Even though the dialog box is closed, the information is kept. To display the dialog box
again, click on the Shortage Warning Status on the Toolbar in [Figure 1-3].
<Setup condition…> button
Set the conditions for remaining quantity warning. Figure. 1-17 shows the dialog box
for designating the number of remaining parts at which the warning occurs.
It is identical to the screen where the menu is executed in the following order: <File>
→ <Setup> → <Shortage warning>.
1-14
IT Feeder System
1-15

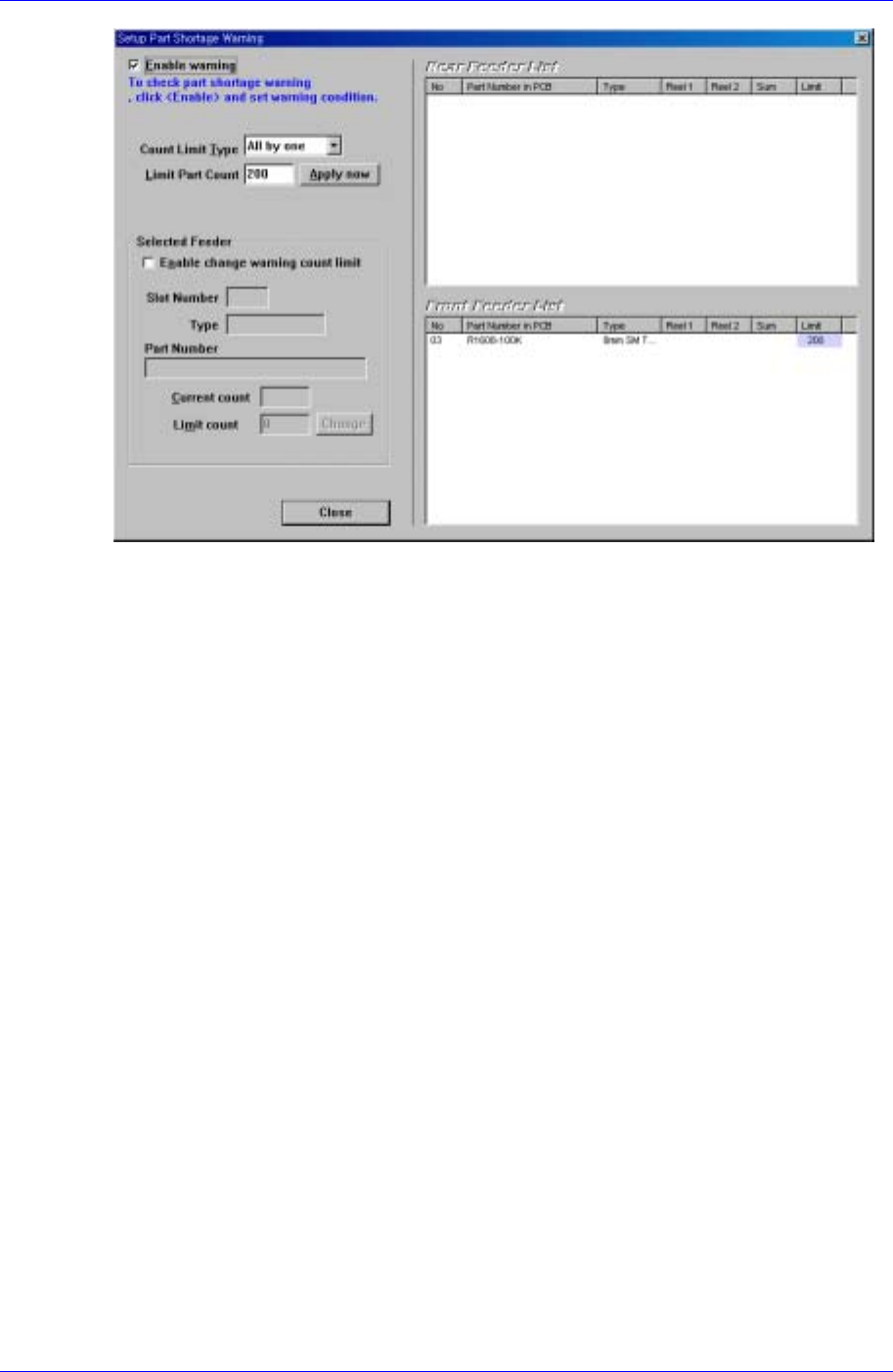

Figure 1-17. Setup Part Shortage Warning dialog box
<Enable warning> check box
Check whether to use the part short warning or not. When it is checked and the part
count drops below the specified number, a part shortage warning is produced and the
Part Shortage Warning dialog box is displayed on the screen automatically.
<Count Limit Type>Combo button
All by one : Check the remaining quantity by applying the input quantity to all
feeders using the <Limit Part Count> edit box, <Limit Part Count>.
.by PCB : Using the <Limit PCB Count> edit box, check the remaining quantity
by multiplying the input PCB quantity and the needed part quantity.
<Apply now> button: Using the edit box, apply the input value.
<Enable change warning count limit> check
Select the feeder slot separately and input the limit count to be modified in the <Limit
count> edit box. Then apply the input value by clicking the <Change> button.
※Until a different PCB is loaded, the limit count is not changed by the Apply Now
button.
<Change> button
The setup condition is applied by the <Change> button.
1.4.4.3. Message
Selecting the submenu <Message> from the menu (<View> → <Message>) will display
the screen as indicated in Figure. 1-18, where the warning message is indicated.
Samsung Intelligent Feeder System

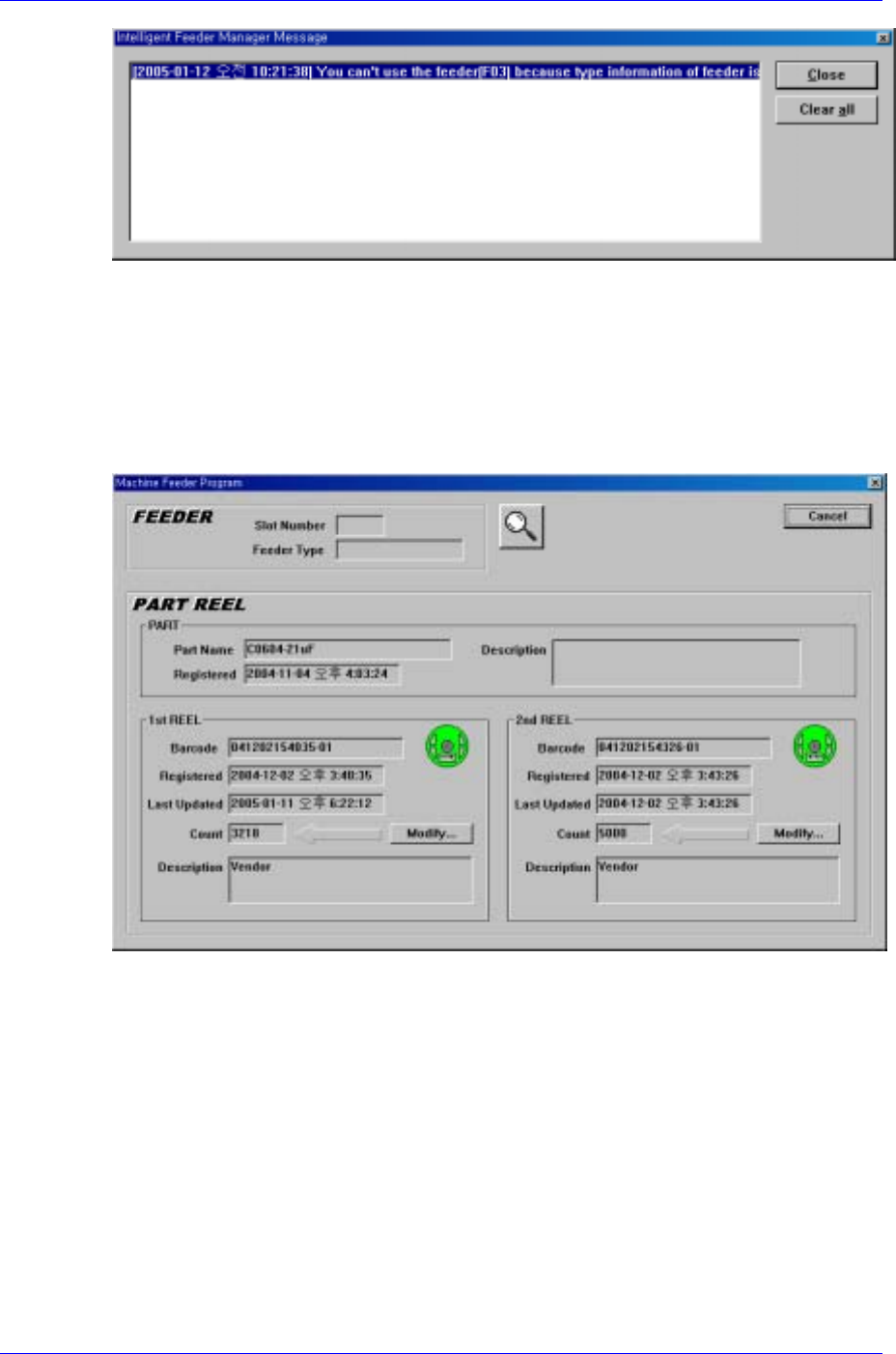

Figure 1-18. View → Message screen configuration
1.4.5. Machine Feeder Program dialog box
In case the <Local Feeder Programming> is at <Enable> state in the FIS environment
setup (refer to Figure. 1-2), when the reel barcode is inputted through barcode reader or
manual input dialog box, the local feeder programming dialog box is displayed in the
screen as shown in Figure. 1-19.
Figure 1-19. Machine Feeder Program dialog box
<Slot Number> character string box
Displays the slot number of the feeder being programmed. When a feeder is installed,
the feeder scanner reads the feeder and displays the respective feeder number.
<Feeder Type> character string box
Searches the database for the feeder with the slot number read above and displays
the feeder type.
<Part Name> character string box
Searches the barcode entered in the database, reads the reel information and displays
the Part Name.
<Registered> character string box
Displays the registration date of the Part Name from the searched reel information.
1-16
