Part S tation 2-1 1 Figur e 2-9.Part Reel D ata Query and M odify wi ndow  ReelAll searching Searches all registered reel data.  Bom File searching When inquiring with the Bom File, the Bom File Import window (see Figu…

Samsung Intelligent Feeder System

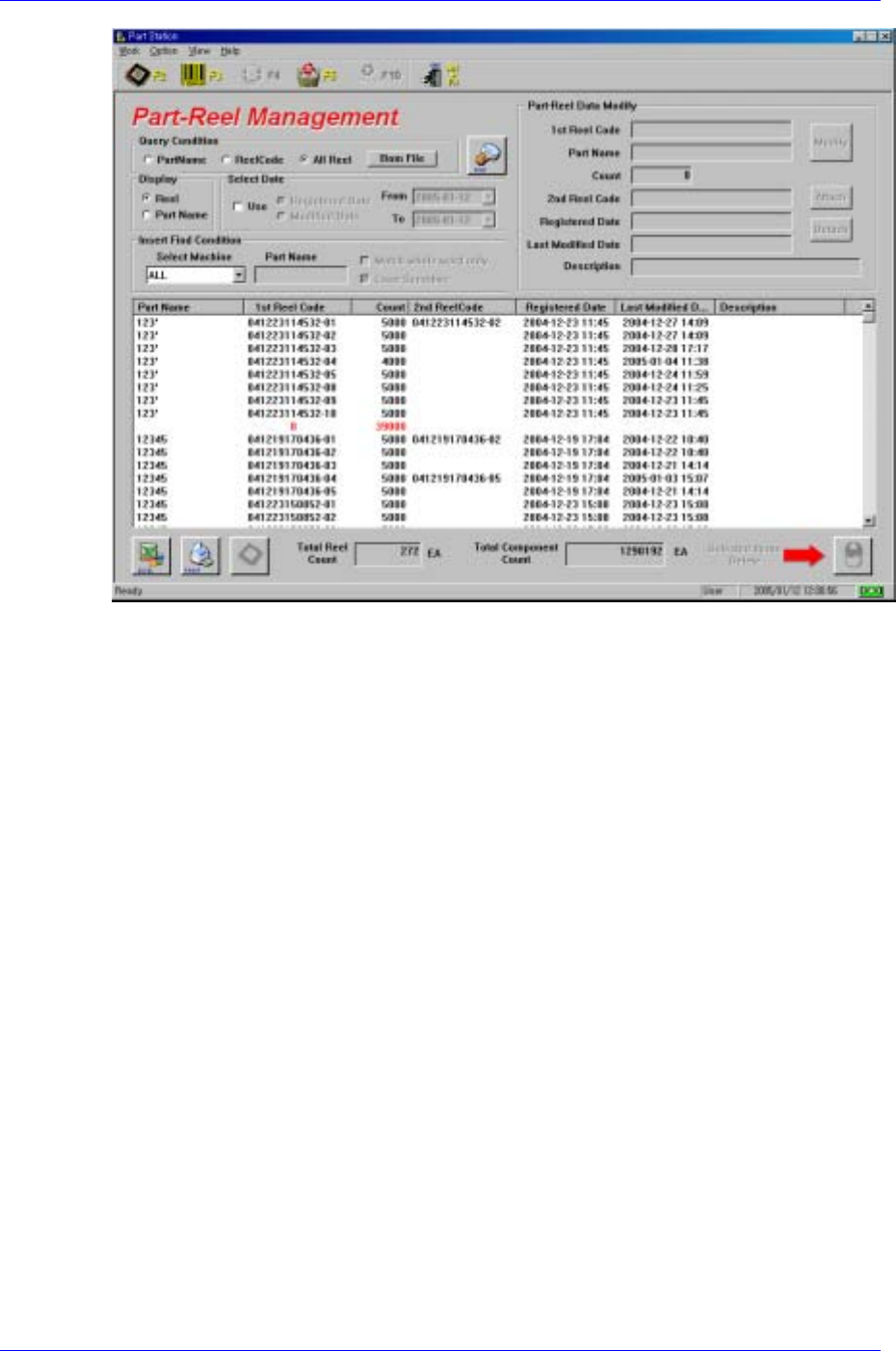

Figure 2-8. Part Reel Management dialog box

<Query Condition> option button 

Three search conditions are available; PartName, ReelCode, ReelAll and Bom File.

 PartName search

When PartName is selected, the <PartName> edit box underneath is activated.

Enter the PartName here and press the Find button, then search result is

displayed in the list box in the middle.

 ReelCode search

When searching by ReelCode, the <ReelCode> edit box in the Part-Reel Data

Modify group on the top left of the screen is activated as shown in the figure

below (Figure. 2-9), and the cursor is ready for input. At this time, the barcode

(ReelCode) attached on the Reel is read by the bar code scanner (Reader), the

ReelCode is displayed in the <ReelCode> edit box and the data on the respective

reel is displayed automatically. It is automatically displayed in the list box below

also. When searching is completed normally and the result is displayed, the

<Count> and <Description> edit boxes are activated automatically and are ready

for modification. Modifying the data and pressing the <Modify> button updates

the reel data with the modified data. At this time, the ReelCode should not be

modified.

2-10

Part Station

2-11

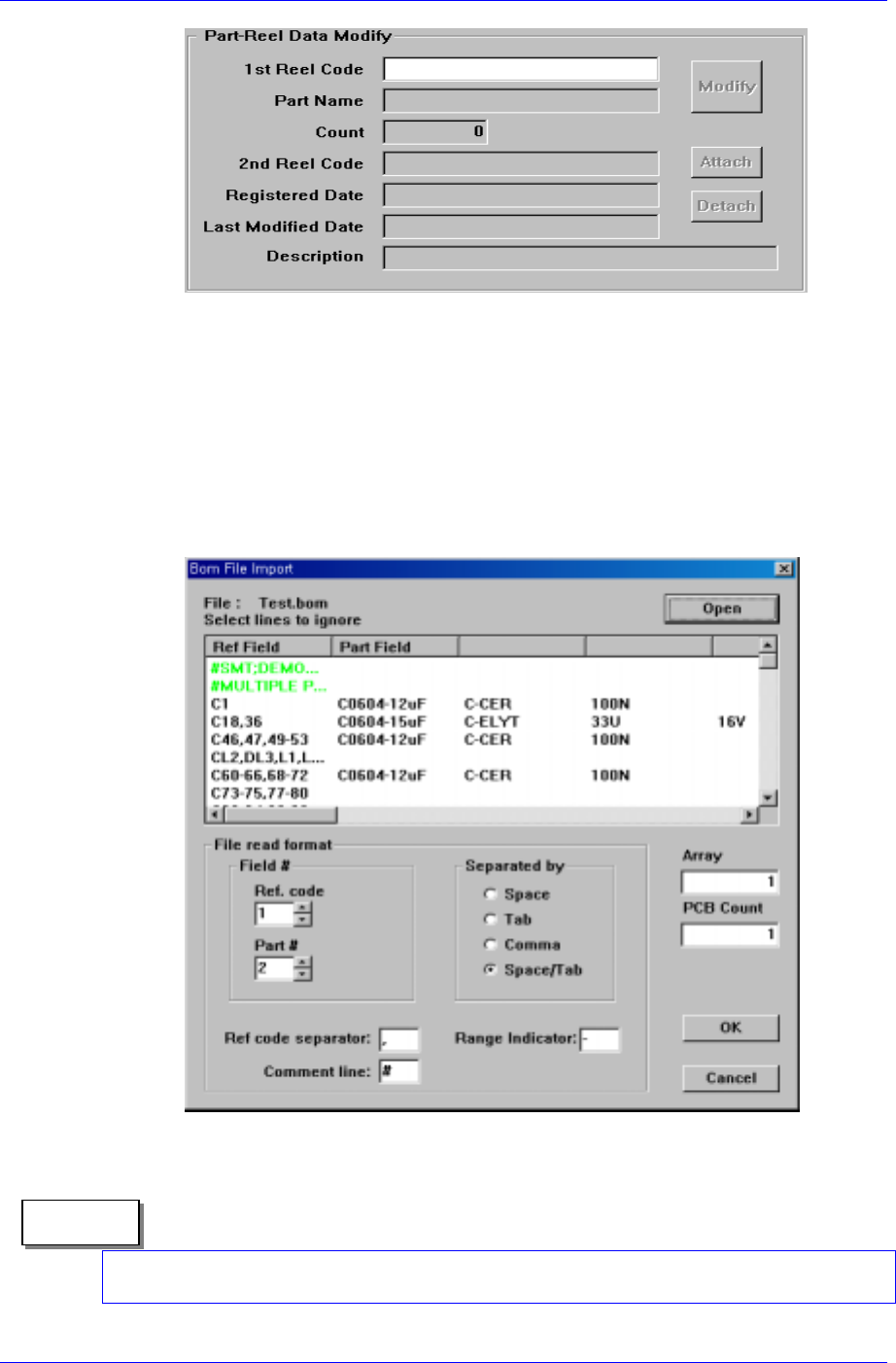

Figure 2-9.Part Reel Data Query and Modify window

 ReelAll searching

Searches all registered reel data.

 Bom File searching

When inquiring with the Bom File, the Bom File Import window (see Figure. 2-

10) appears on the screen. Then open it to check its contents. If the required

number of arrays and PCBs is designated, the required quantity of the

corresponding parts and the number of parts short are indicated in the list box in

order for the operator to prepare for work in advance.

Figure 2-10. Par Reel Data Query and Modify dialog box

If No Part is indicated on the screen, it indicates that the corresponding part name has

been registered in the machine. In this case the part name must be registered newly.

Memo

Samsung Intelligent Feeder System

<Display> group 



 <Reel> button

Indicates all searched real codes in the list and their subtotal.

 <PartName> button

The searched real code indicates the number of reels by part and the number of

parts contained therein.

<Select Date> group

After selecting Query conditions, it is possible to add more conditions under those,

such as registration date or last update date.

 <Use> check button

Selects whether to include searching by date as a searching condition. When this

button is checked, the <Registered Date> button, <Modified Date> button,

<From> combo box, and <To> combo box are activated for selection, and

searching by date in incorporated in the search.

 <Registered Date> button

Sets the searching condition to registration date.

 <Modified Date> button

Sets the searching condition to the last modification date.

 <From> combo box

Specifies the date to start searching.

 <To> combo box

Specifies the date to end searching.

<Insert Find Condition> group

 <Selected Machine> combo box

Use this to search the current PartReel in addition to the previously selected

conditions. When ALL is selected, all PartReels are searched regardless of

equipment.

 <PartName> edit box

Enter the PartName of the Reel to search. If the user does not know the exact

name, the extended search function can be used.

<Find> button

Finds the reels registered with selected conditions and displays them in the list box.

<Part Reel Data Modify> group

Displays the Reels selected in the list box. All input items are for reading only.

However, if the Query Condition is by ReelCode, then the ReelCode item is ready for

input. Reading the Reelcode with the bar code displays the respective reel data and

displays it in the list box below.

When searching by ReelCode, the Number of remaining parts and Description are

ready for modification. Modifying the data and then pressing the Modify button

updates the respective reel code data.

Selecting in the list box displays the data on the selected reel only and modification is

not possible.

 Result displaying list box

2-12
