Samsung Intelligent Feeder System ③󰚟 Press the button to import the Bom File and set the file format. Then click the <OK> button. ④󰚟 If the searched part does not exist in th e DB as shown in the following figure…

Part Station

2-21

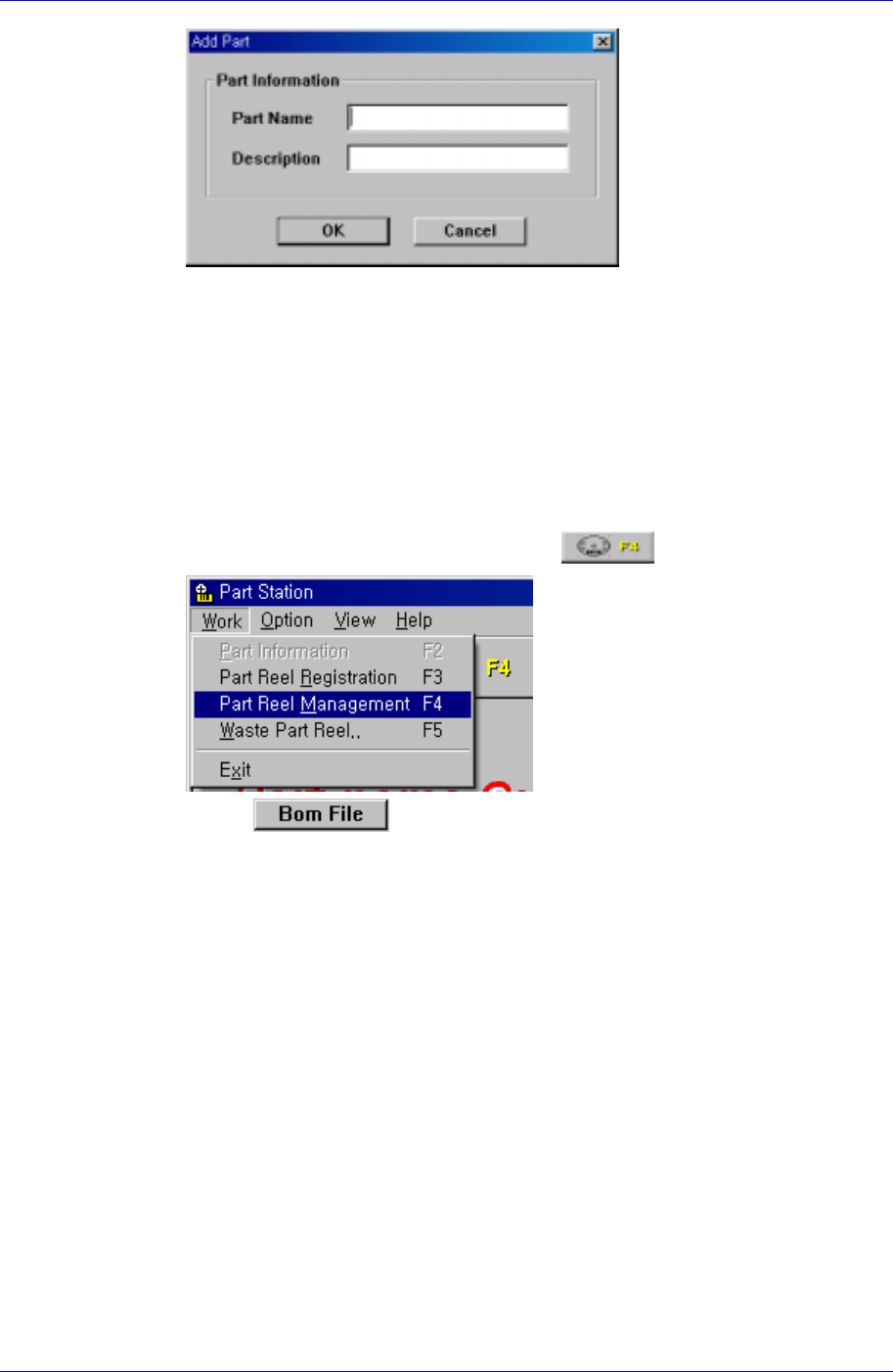

 Part Name: Enters the part name. (This step must be done.)

 Description: Enters a brief description concerning the part.

 <OK> Button: Registers the part/description entered.

 <Cancel> Button: Deletes the registration.

※ The registration date is entered as of the present time automatically.

2. Bom File Import registration: Registers several types of parts using the Bom File.

①󰚟 As shown in the following figure, select the Part Reel Management (F4)

submenu from the Work menu or click the

button of the tool bar.

②󰚟 If the

button of Query Condition is pressed, the following

screen is displayed.

Samsung Intelligent Feeder System

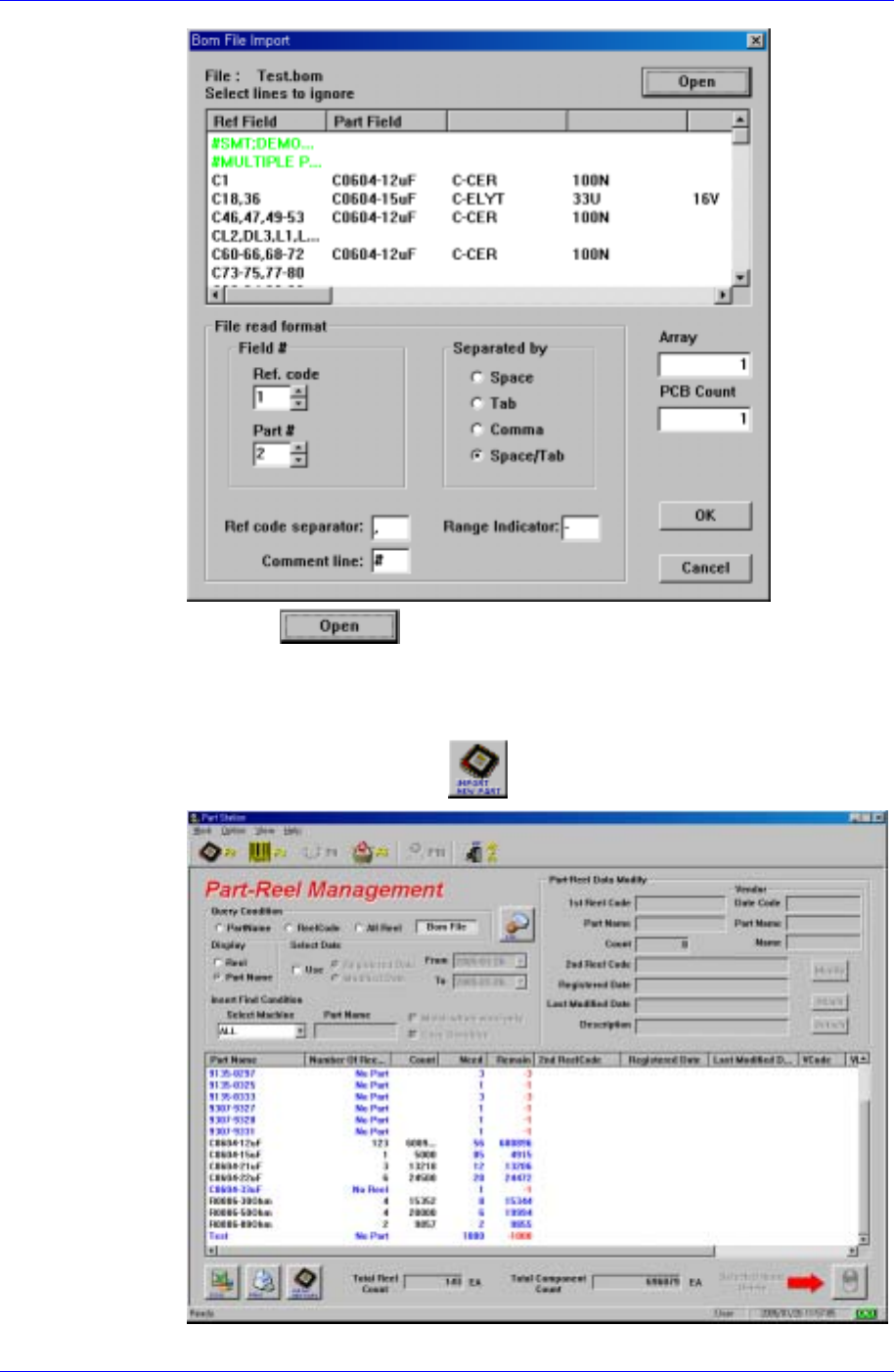

③󰚟 Press the

button to import the Bom File and set the file format.

Then click the <OK> button.

④󰚟 If the searched part does not exist in the DB as shown in the following figure,

‘No Part’ is indicated and the

button is enabled.

2-22

Part Station

2-23

⑤󰚟 If the button is pressed, the New Part Import screen is displayed as

shown below.

 Select All : Selects all parts.

 UnSelect All : Cancels all parts.

 Inverse : Reverse the selected part.

 Description : Enters additional description.

 Import : Register the selected part.

 Cancel : Cancel the performed work.

⑥󰚟 If the <Import> button is clicked, the following dialog box is displayed and the

part is registered.

3. Part deletion

①󰚟 After executing the Part Information (F2) submenu, select the Option menu as

shown in the following figure and choose the Users Change (F11) submenu.

②󰚟 The following figure appears. Select the Administrator and enter the Password.
