Chapter 2

Basic Operations for Data Editing

This chapter describes the basic window navigation for

data editing.

•

Window Composition and Icons

•

Method of Data Entry

2-B

AKHEDT-ID

0602-001

2-1

AKHEDT-ID

0605-002

1. Window Composition and Icons

1.1 Window Composition

The following describes how the data edit windows are composed.

[1] Toolbar

[2] Tab Sheet [3] Drop-Down List

[4] Scrollbar

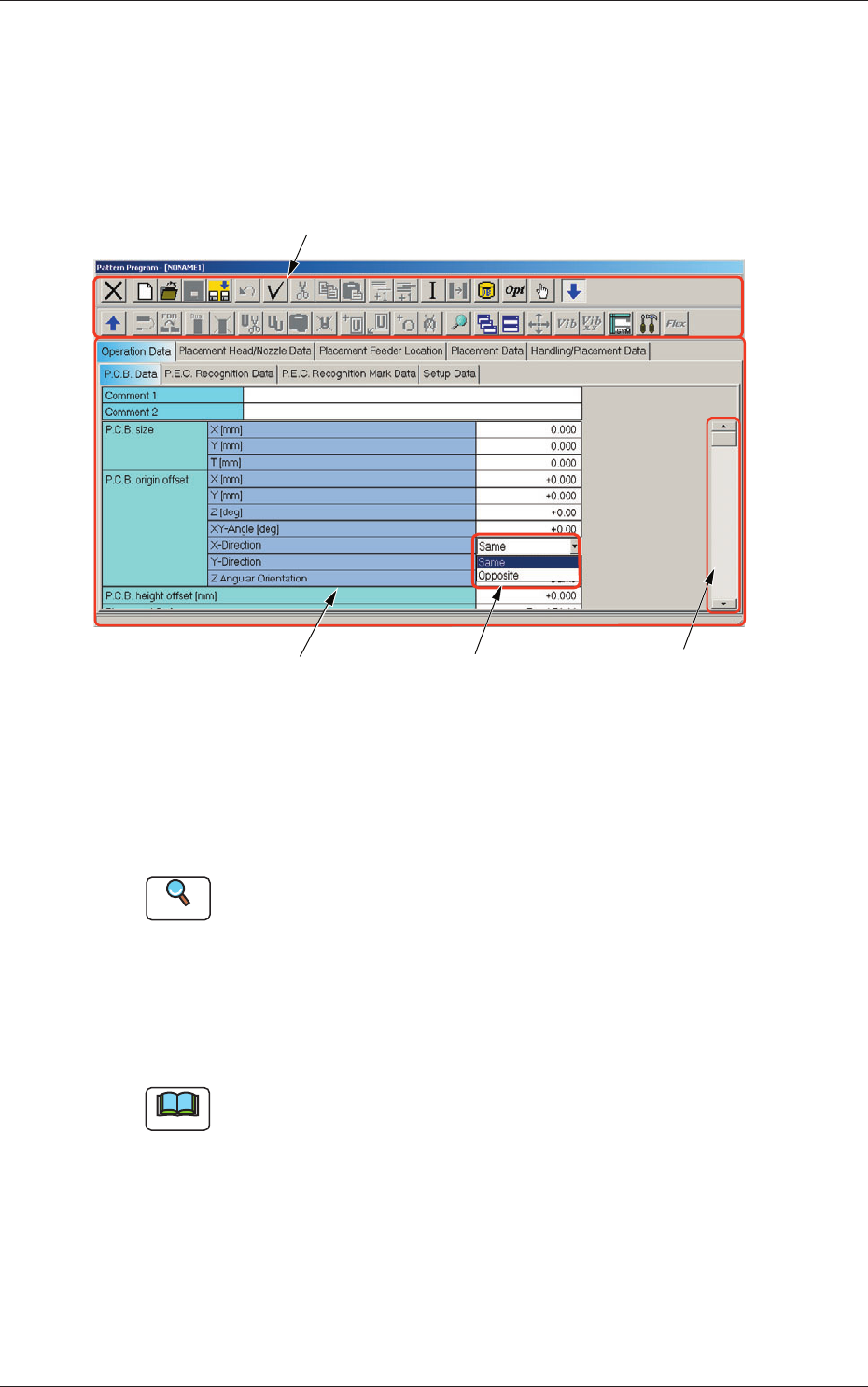

Fig. 3B1

Pattern Program

Edit Window (Example)

[1] Toolbar

The

Pattern Program

edit window is provided with the operation

commands (the icons on the toolbars) that can be executed.

Reference

Refer to "1.2 Basic Icons" for details.

[2] Tab Sheets

The provided tab sheets enable the operator to edit the data.

When the size and/or the position of an edit window is changed, the size

and/or the position of each tab sheet also changes.

Note

When an item is selected and the right button of the track ball is pressed,

a menu opens and it contains a collection of commands that will be

frequently used.
