2-76
2
Board Explorer
9.2 Open and Save
Theprogramlistdataisopenedandsavedbythe[File]menu.

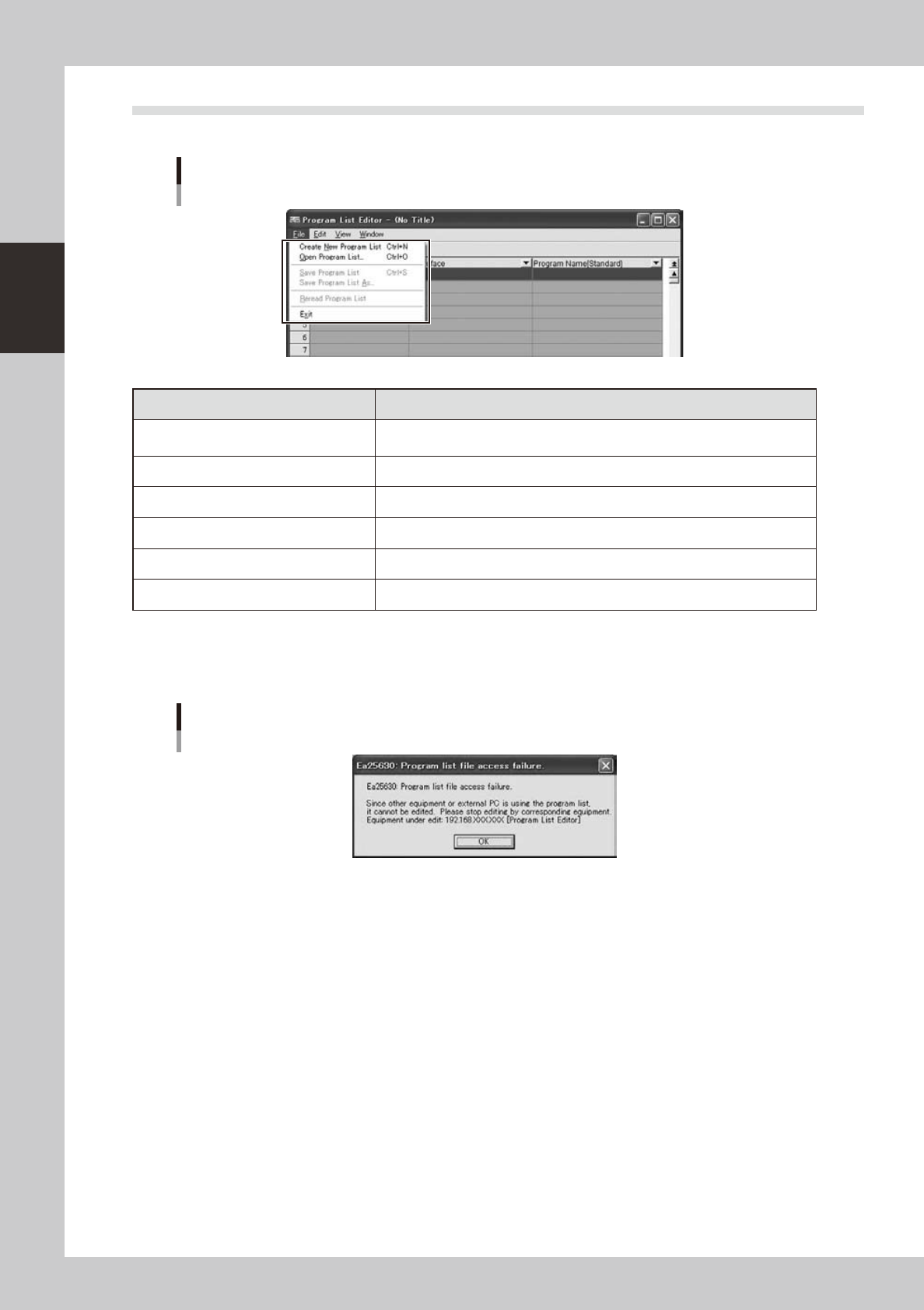

Program List Editor Menu (File)
642E2-S0-00
Menu Items Operation
Create New Program List
Create new program list.
When there is the program list being edited now, it is closed.
Open Program List Select the program list already registered and open it.
Save Program List Save the program list being edited now.
Save Program List As Save the program list being edited now as another file name.
Reread Program List Reread the program list without saving it. The data being edited is discarded.
Exit Exit the Program List Editor.
Whenfollowingdialogisdisplayedwhileopeningtheprogramlist,selectedprogramlistfilecan’tberead
because other application is opening it already. That dialog is displayed “Equipment under edit”. Check this
equipment.
Warning Dialog
642E3-S0-00
2-77
2
Board Explorer
9.3 Edit the Program List
Editingoftheprogramlist,suchasaddinganddeletingrecords,canbeperformedfromthe[Edit]menu.The
menucanalsobedisplayedbyright-clickingtheselectedrecord.

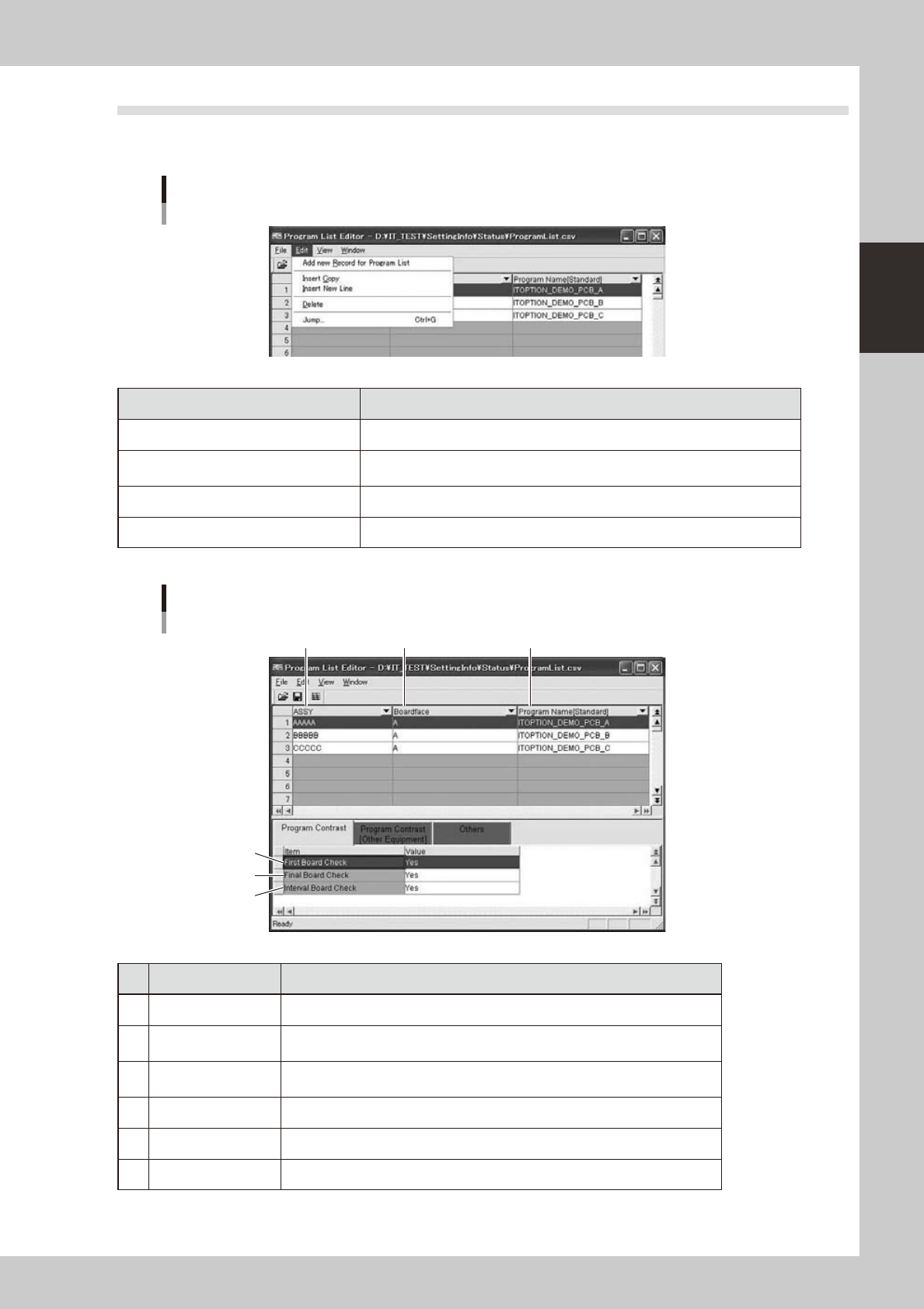

Editor Menu (Edit)
642E4-S0-00
Menu Items Operation
Add new Record for Program List A new record is added to the tail.
Insert Copy
The selection record is copied. And, it is inserted in the selection position as a
new record.
Insert New Line A new record is inserted in the selection position.
Delete The selection record is deleted.
Item that can be edited
4
5
6
1
2 3
642E5-S0-00
No Items Explanation
1 ASSY Production model number is displayed.
2 Boardface
Information regarding the surface to which components are to be mounted is
displayed.
3
Program Name
[Standard]
Board program name related to the information given in [ASSY] and [Boardface]
is displayed.
4 First Board Check First board check setting is displayed.
5 Final Board Check Final board check setting is displayed.
6 Interval Board Check Interval board check setting is displayed.
2-78
2
Board Explorer

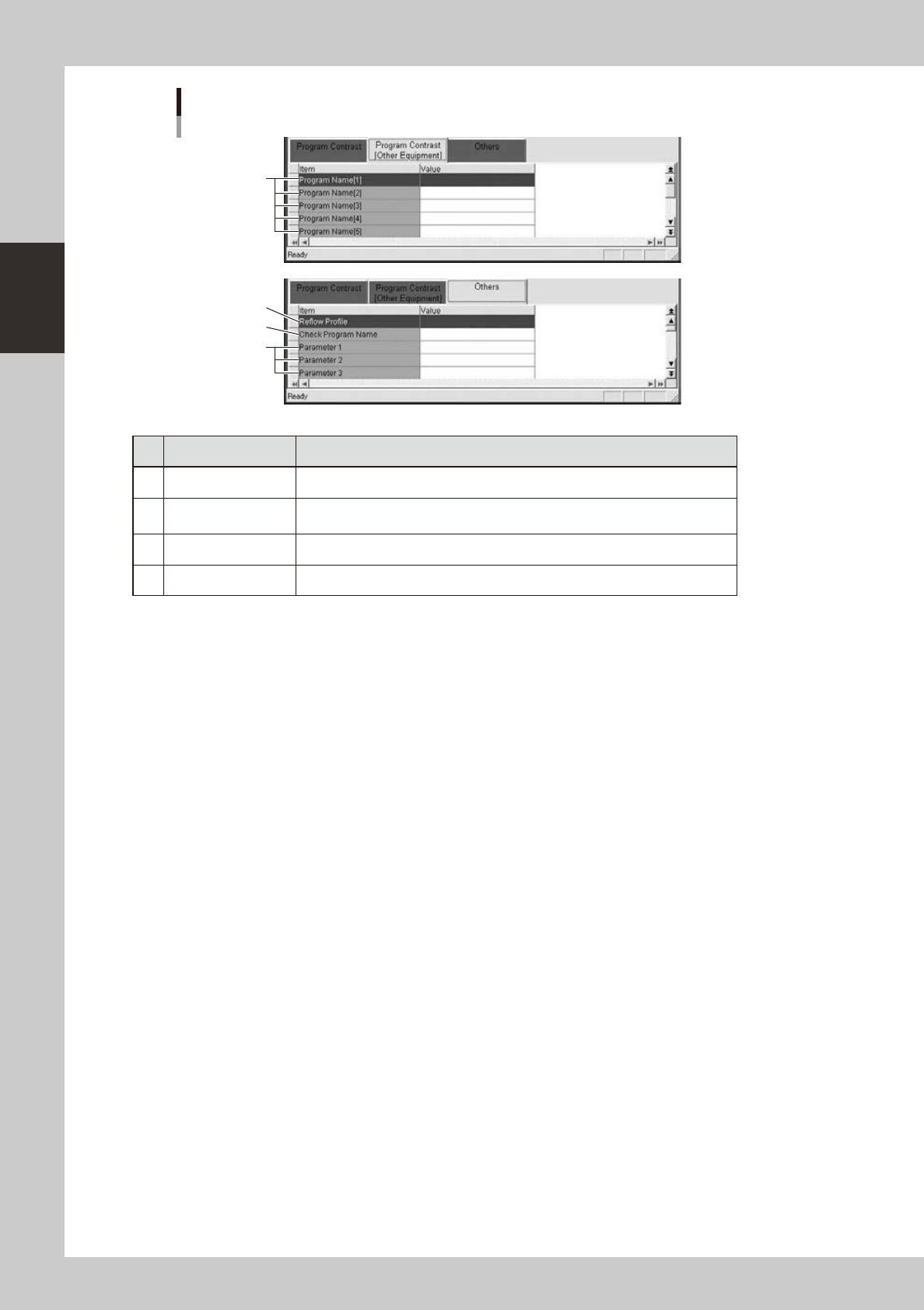

Item that can be edited
7
10
8
9
642E6-S0-00
No Items Explanation
7 Program Name [1-9] The board program name used for another machine of the line is displayed.
8 Reflow Profile
The name of the program used for the reflow furnace temperature profile is
displayed.
9 Check Program Name The name of the program used for the checker is displayed.
10 Parameter1-20 Additional information is displayed.
