4-2

Feeder Viewer

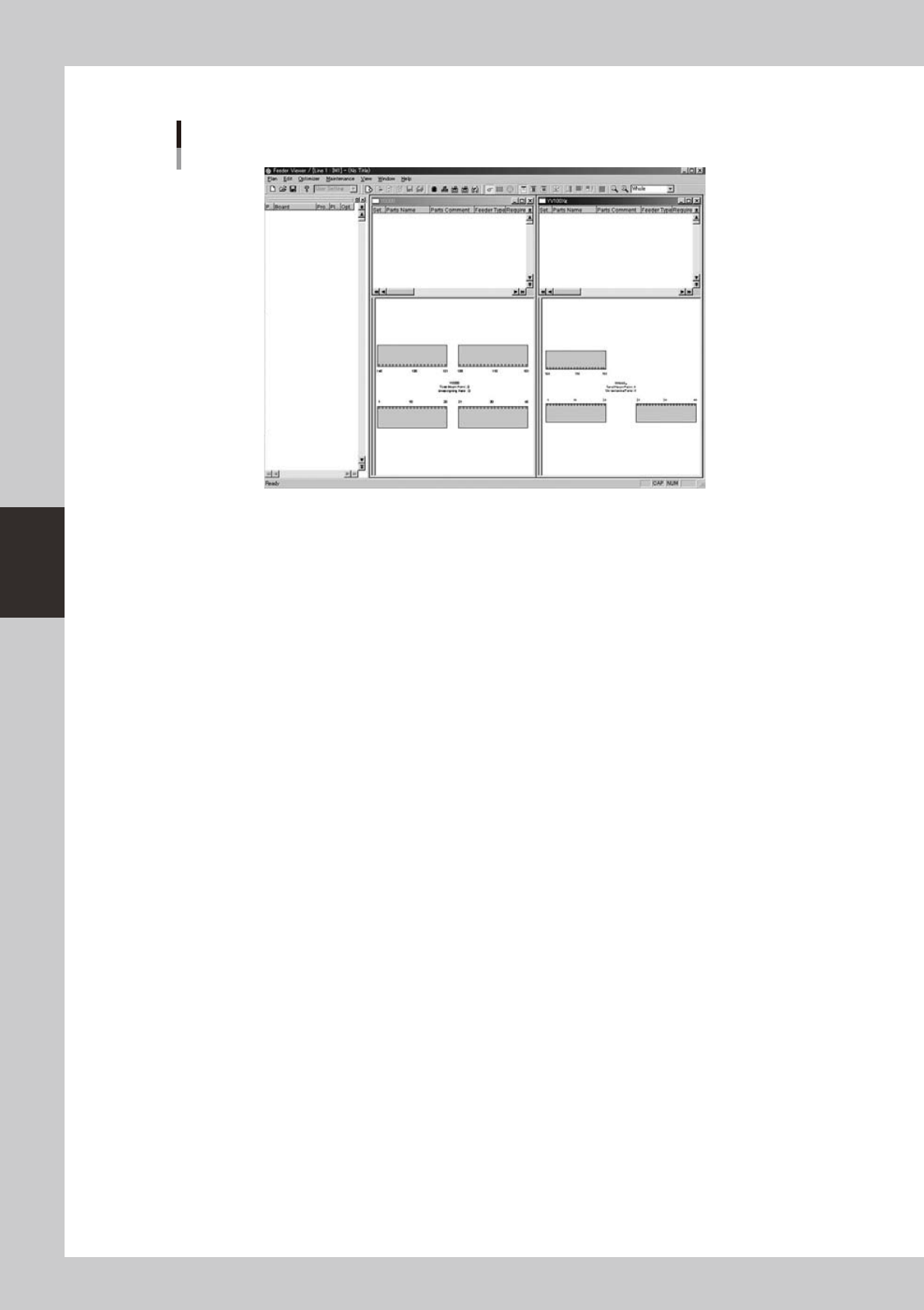

The Feeder Viewer initial window appears as shown below.

Feeder Viewer initial window

64402-S0-00

4-3

Feeder Viewer

1.2 Quitting the Feeder Viewer

ToquittheFeederViewer,select“Exit”fromthePlanmenuintheFeederViewerwindoworclickthe[Close

(x)]buttonintheupperrightcornertoclosetheFeederViewerwindow.

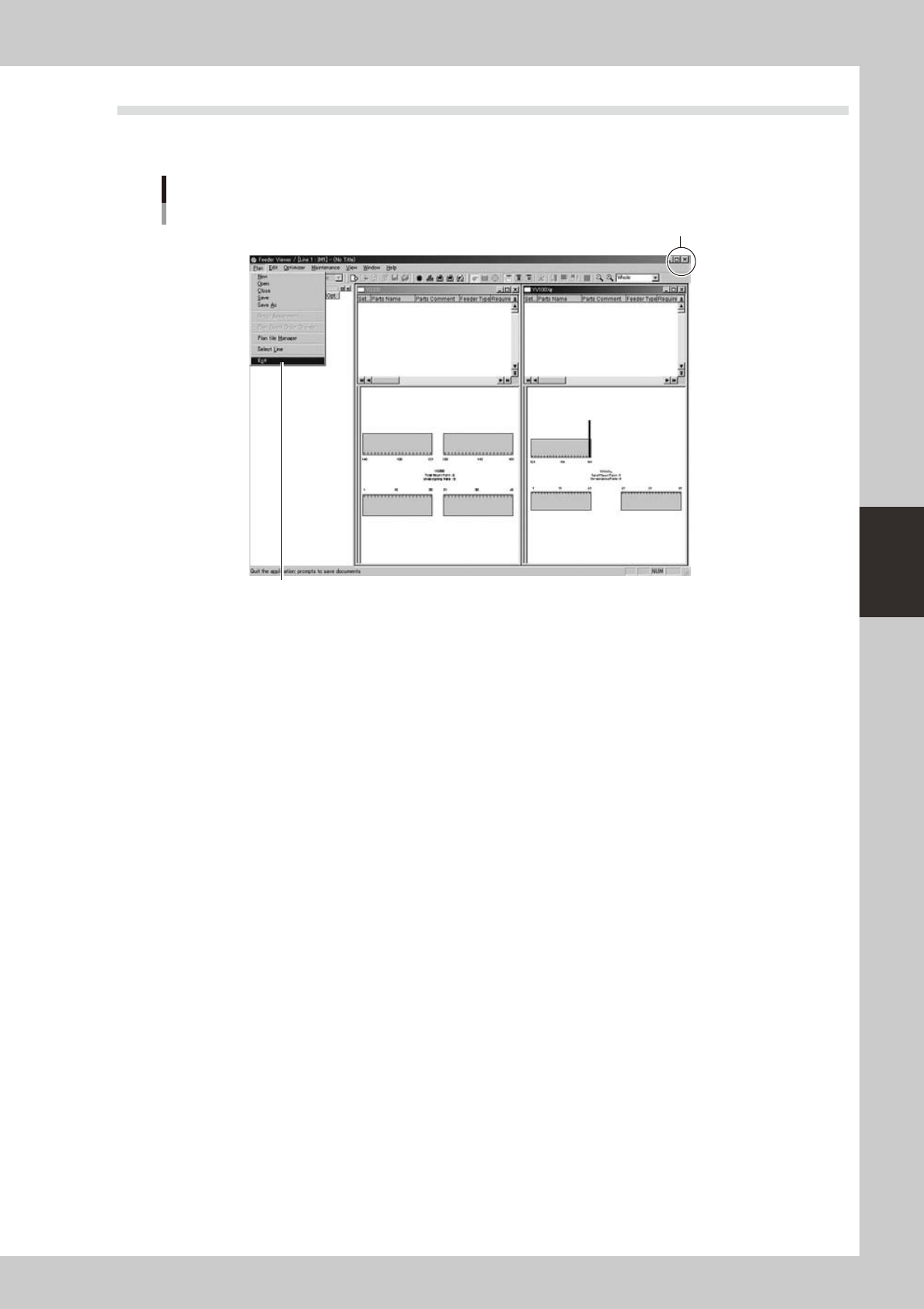

Quitting the Feeder Viewer

[Close] button

Select "Exit" from Plan menu.

64403-S0-00

4-4

Feeder Viewer

2. Basic operation

This section explains basic operations on the “plan information screen” used to create or edit the board

production plan and feeder setup information.

2.1 Plan information screen

The following screen appears when you open a plan information file from the “Open” command in the Plan

menu(or[Open]buttononthetoolbar).Thisscreenisreferredtoas“planinformationscreen”andbasically

consistsoftwopanes:theleftpaneshowsaproductionboardlistandtherightpaneshowstheplan

information window of each machine. The menu bar and toolbars are available at the top of the screen to

perform various tasks in the Feeder Viewer.

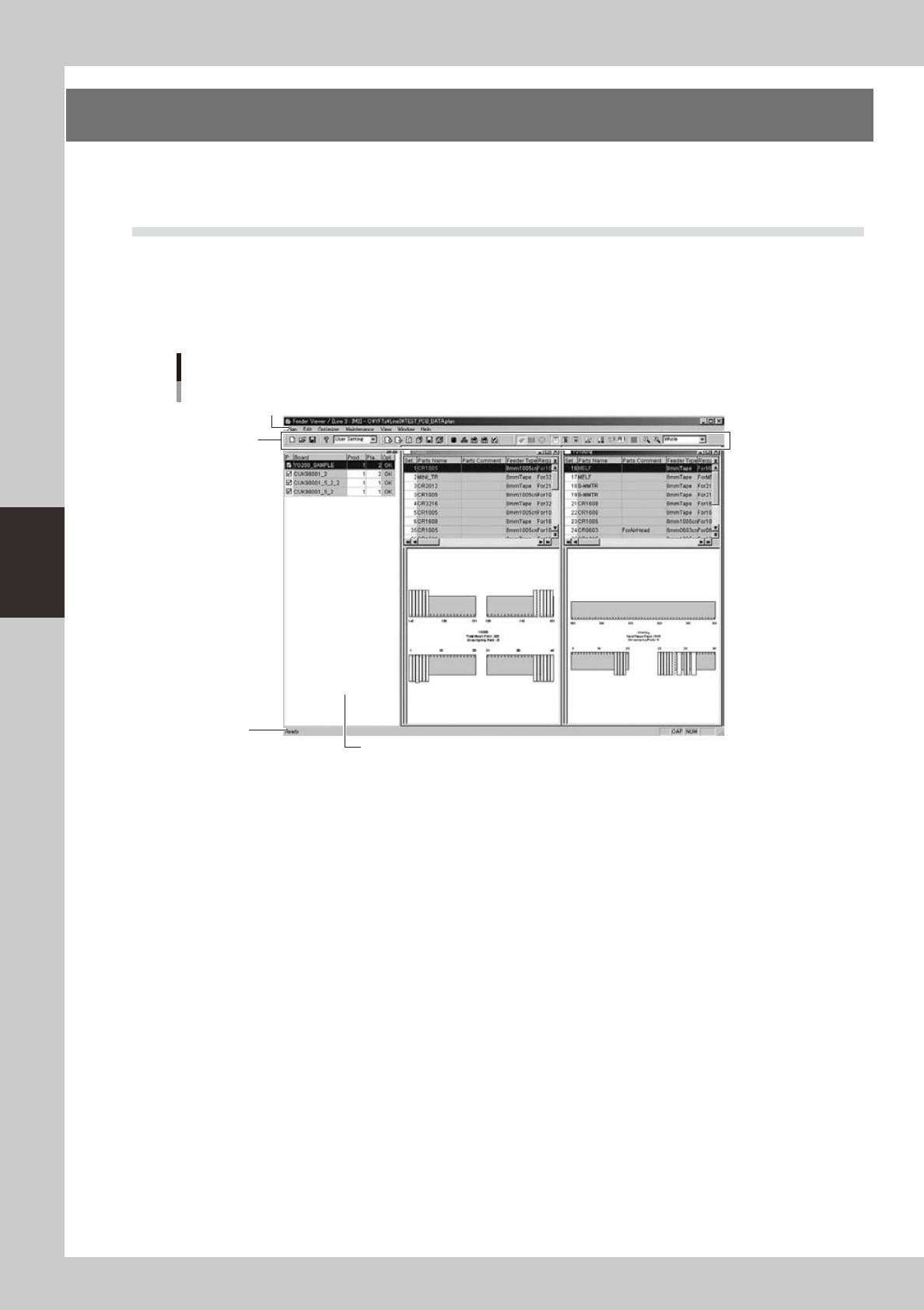

Plan information screen

Toolbar

Menu bar

Production board list

Status bar

64404-S0-00

●

Menu bar

ThemenubaratthetopoftheFeederViewercontainspull-downmenuswithcommandsgroupedbyfunction.

• Plan

The Plan menu allows you to select commands, such as to create or save feeder setups, switch the line and quit the

Feeder Viewer.

• Edit

The Edit menu allows you to select commands to add, delete or update board data.

• Optimizer

The Optimizer menu allows you to select commands to optimize the current feeder setups while selecting an

optimization method such as single optimization, sequential optimization and common optimization.

• Maintenance

Setting of maintenance feeder viewer, dump station information and option can be selected and executed.

• View

The View menu allows you to select commands, such as to show or hide various information and zoom in or out the

display.

• Window

 TheWindowmenuallowsyoutoselectcommands,suchastoopenorclosethefeedersetupinformationwindowof

each machine, as well as to select the window arrangement.

• Help

The Help menu displays the program version information.
