• Save All Boards

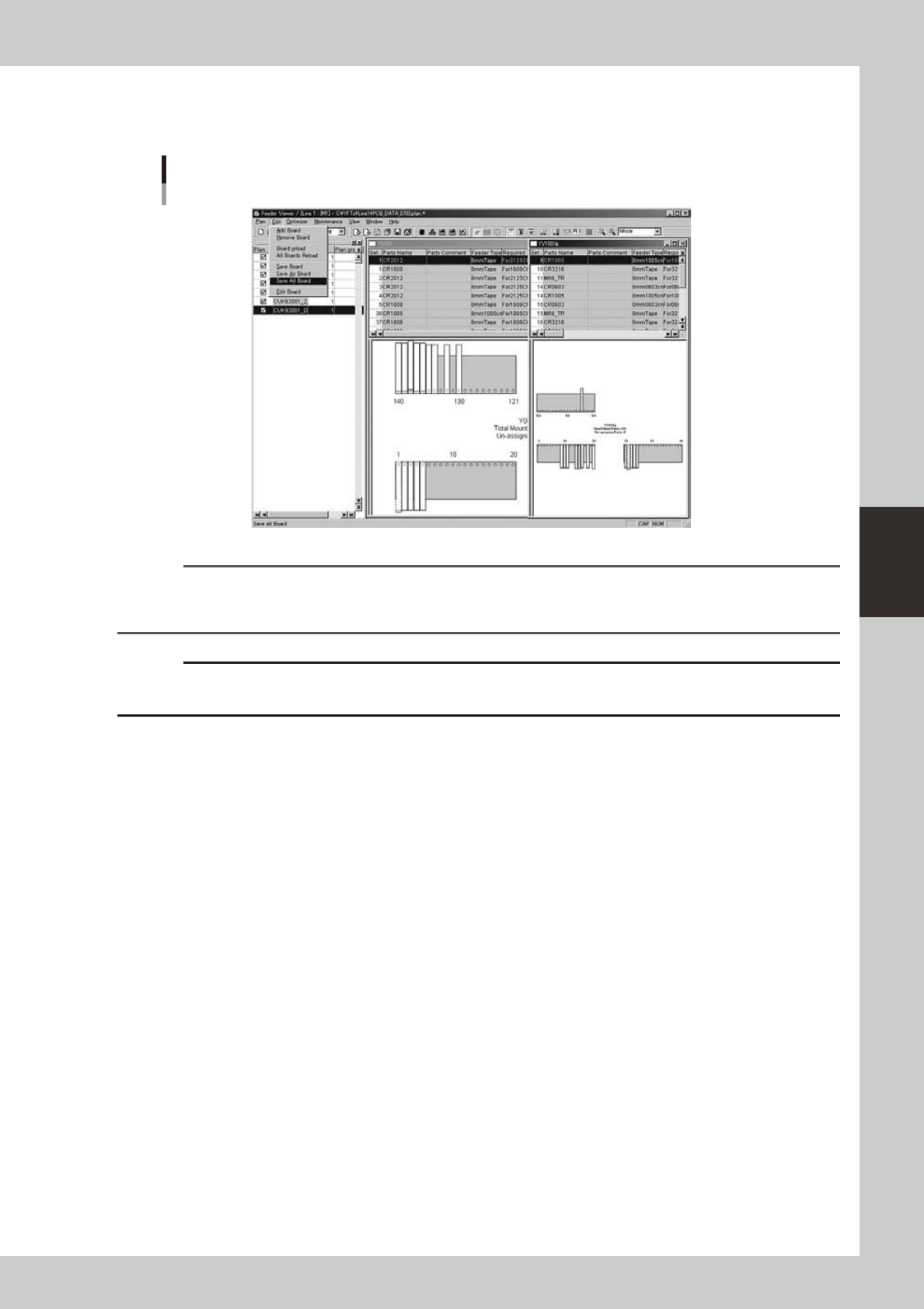

Select "Save All Boards" from the Edit menu to save all currently opened board data.
All board data currently being edited will be saved over the originals.
Plan information screen
Selecting the "Save All Boards" command
64446-S0-00
Reference
Clicking the [Save All Boards] button on the toolbar performs the same operation.
The "Save All Boards" command can also be selected from the context menu (right-click menu) that appears when
the right mouse button is clicked at any point in the production board list pane.
c
CAUTION
If you attempt to quit the Feeder Viewer without saving any board data, an alert message appears. Check the
message before quitting.
4-30
4
Feeder Viewer
3.6 Changing the feeder or tray position
The feeder, tray or wafer tray positions can be changed by dragging and dropping them to another position.
The following examples explain how to change the feeder positions on the feeder plate layout.
3.6.1 Moving a feeder within the same machine
On the feeder plate layout, you can easily move a feeder from its current position to another position.
1
Select the feeder you want to move.

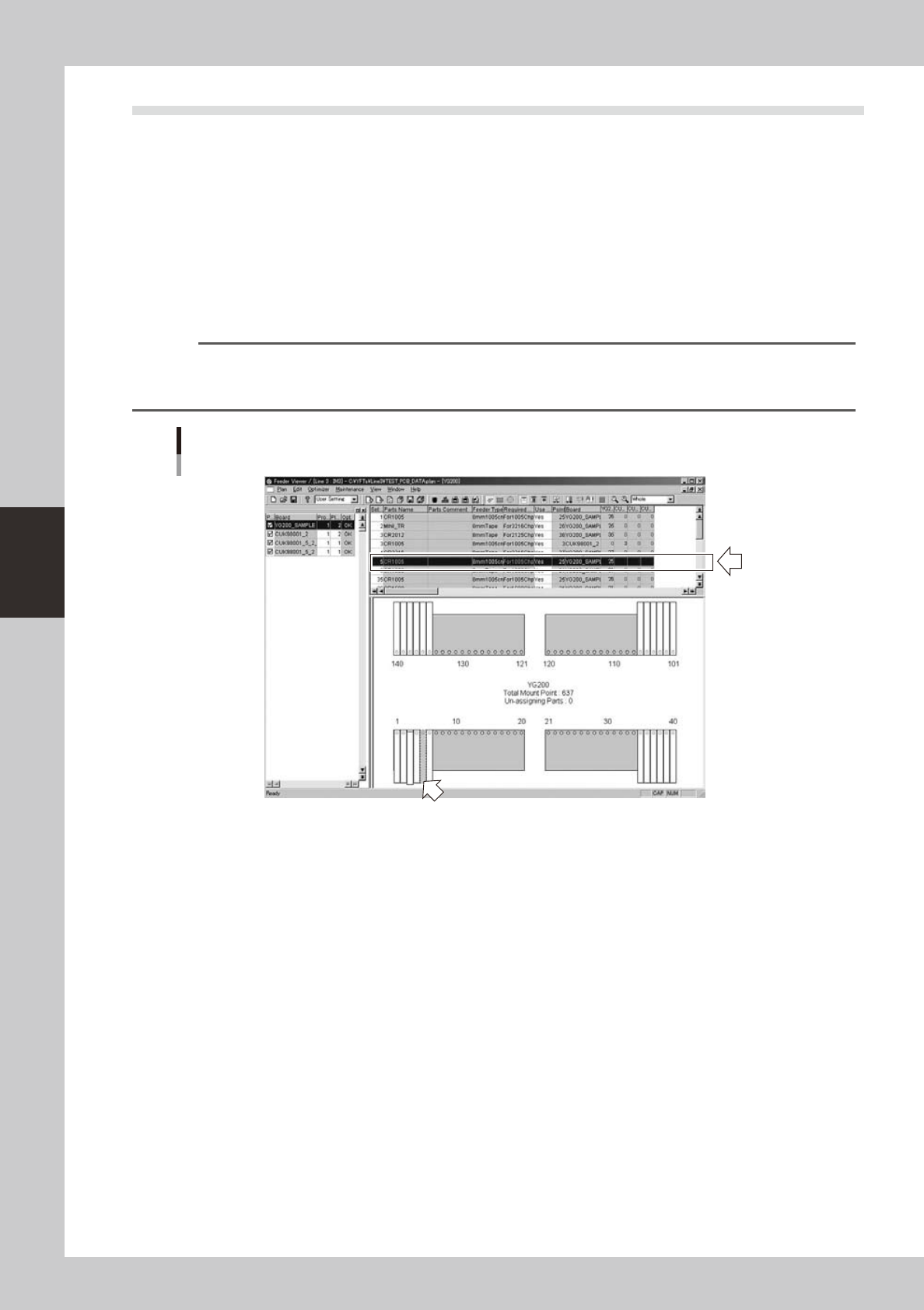

On the feeder plate layout, click the feeder you want to move.
The selected feeder is then enclosed by a dotted line.
When the parts setup information list is displayed in the upper grid, the selected feeder row is
highlighted.
Reference
• When the parts setup information list is displayed in the upper grid, you can also select a feeder by clicking on its
row.
• If alternative parts are specied, they are also highlighted.
Selecting the feeder you want to move
Double-click the feeder to select it. (Selected feeder is indicated in blue.)
64447-S0-00
4-31
4
Feeder Viewer
2
Move the feeder.

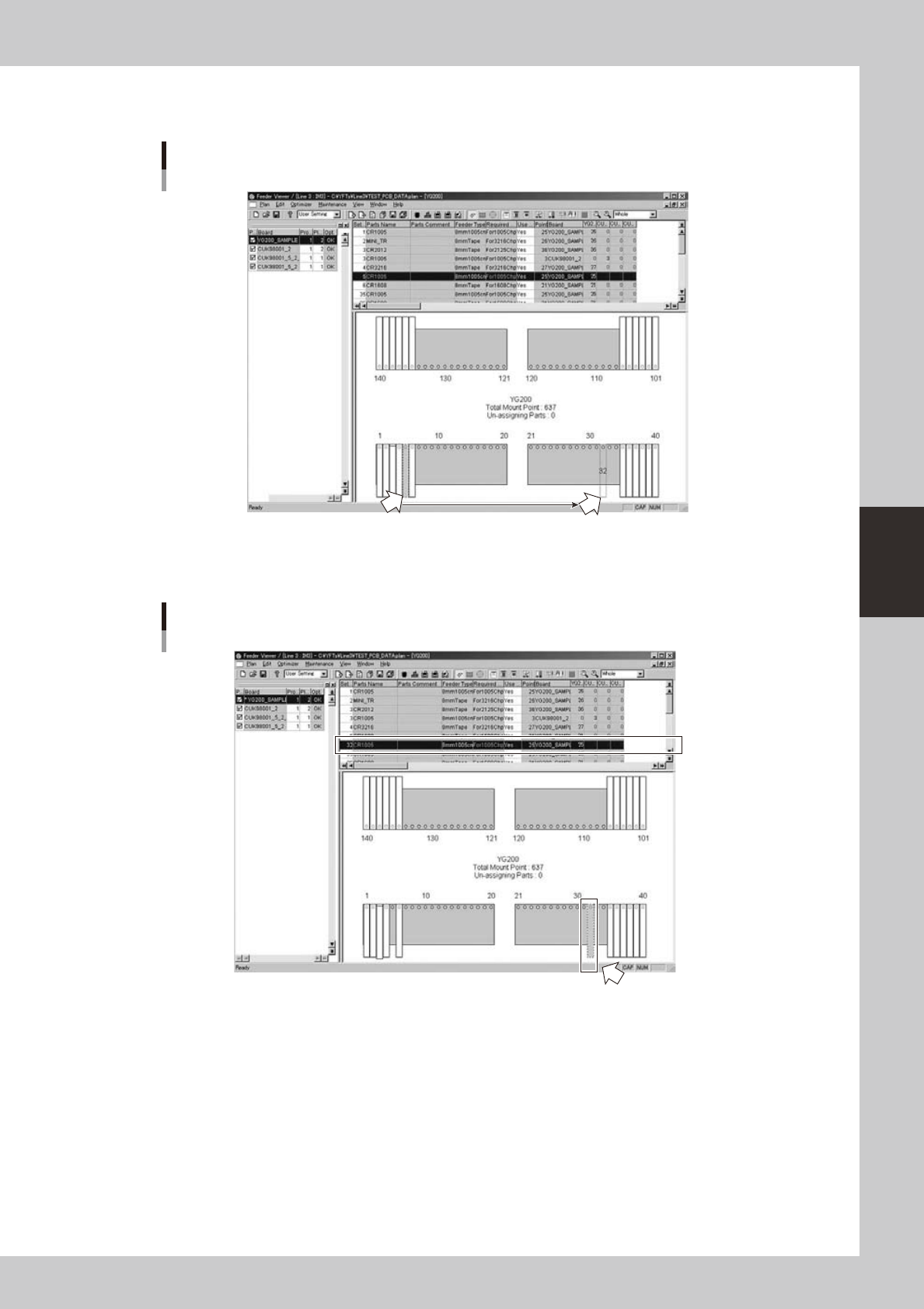

Drag and drop the feeder to the desired position on the feeder plate.
Moving the feeder by drag and drop
Drag and drop with mouse.
64448-S0-00
When you have moved the feeder, the Set No. (leftmost column) changes to the number at the new
position
Display after moving the feeder
The Set No.
changes to the
new number.
New position to which the feeder was moved.
64449-S0-00
3
Save the data.
Save the edited board data as described in the preceding section "3.5 Saving the board data."
