4-42
4
Feeder Viewer
4.2.2 Settings
n
Set number of Dump Station
YoucanchangethisSettingonlyinthemachines.Whenyouchangethissetting,makesystembackupdiskand
Re-registerinY.FacT.
1. Launch “Setting”.
2. Select “Setting”
“Machine Data” “Mechanical” “Position”.
3.Makesurethat“SetNo.”in“DumpStation1–4”iscorrect.
n
Feeder Plate Specification
YoucanchangethisSettingonlyinthemachines.Whenyouchangethissetting,makesystembackupdiskand
Re-registerinY.FacT.
1. Launch “Setting”.
2. Select “Setting”
“Specification Information” “Plate Specification”.
3. Change the setting so that feeders are arranged to the space to which they were not arranged in the past function.
Refertothefollowingexample.
Before
* Dump Station is arranged in Set No. 1-6.
64464-S0-00
4-43
4
Feeder Viewer
After
64465-S0-00
n
Dump Station Specification
SetWidthinformationofeachDumpStationasfollows.
This is Setting in Y.FacT.
1. Launch “Setting”.
2. Select “Setting”
“Specification Information” “Dump Station Specification”.
Dump Station Specification
64466-S0-00
3. Input width of a right and left occupation of Dump Station (by the unit of Millimeter).
Please set as indicated in the table below according to the kind of the Dump Station.
Type Left (mm) Right (mm)
Motor drive conveyo 40.00 40.00
Air cylinder drive conveyor 75.00 50.00
4-44
4
Feeder Viewer
4.2.3 Error Message
n
Error Message in Optimizer
●
Interference with Fixed Feeder and Dump Station
WhentheinterferencewithDumpStationandFixedFeedersthatexistinfixedboards,thefollowingerrormessageis
displayed. In that case, move the Fixed Feeders in fixed boards manually.
Error Message

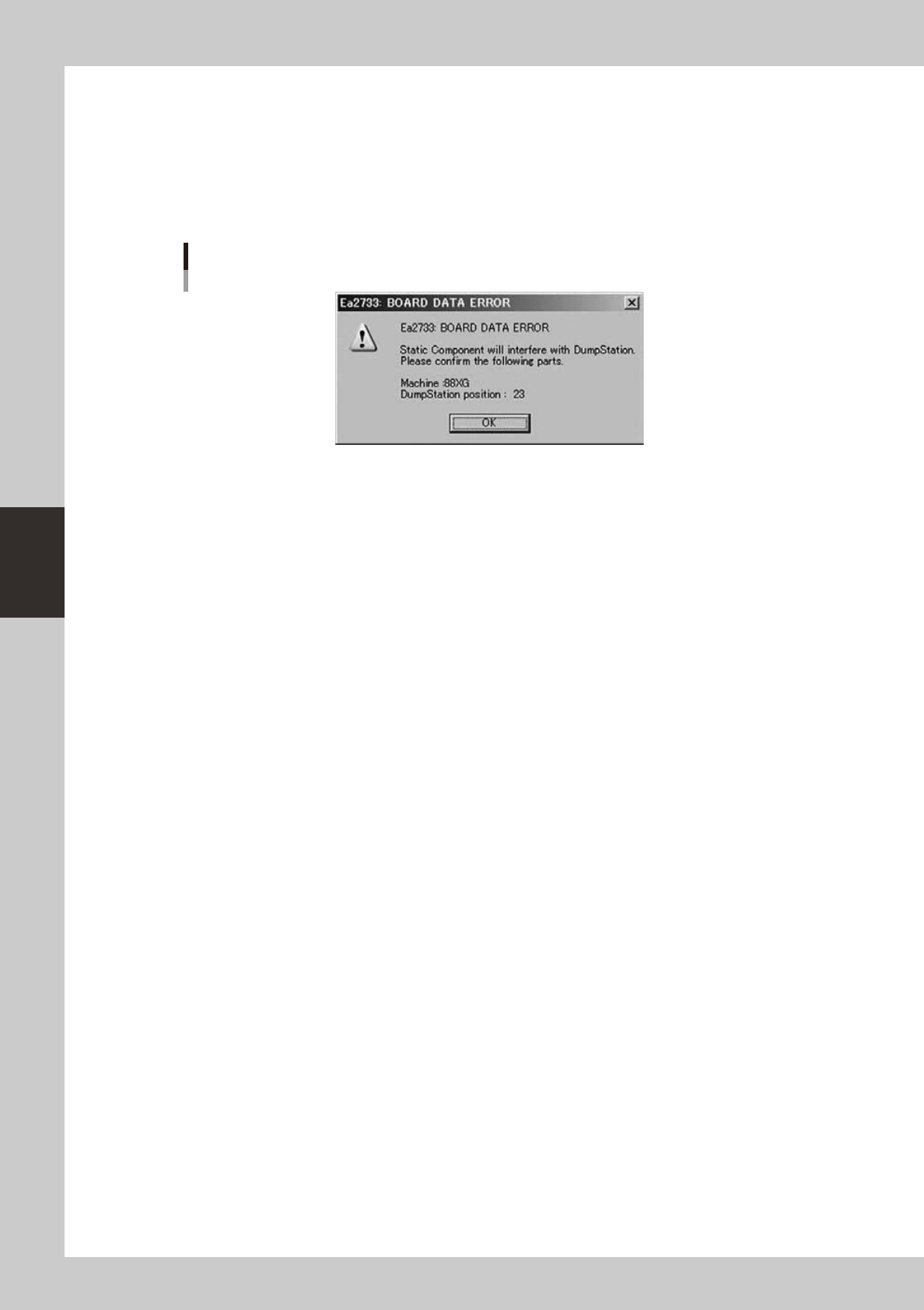

64467-S0-00
4.2.4 Limitations
n
About Optimizer in Machines
This function doesn’t exist in machines now.
Note that it is possible that Optimizer in Machines arranges feeders to the space where interference with
Feeders and Dump Station occurs.
• Solution
· Whenexecutingoptimizeatmachines,makesuretheFeederSetConditionis“AllPartsFixed”.
· Use Optimizer of Y.FacT when changing feeder set position.
n
About Limitation for “Auto” setting Dump Station
• Optimizer
1. Dump Station is not arranged when parts which use Dump Station exists only on fixed board or static components.
2.Ea2733(referto"4.2.3Errormessages")occurswhenfixedfeeder(Partswhichsettingof"UseFeederOptimize"is"No"
or Feeder Set Condition is“ All Parts Fixed”) and Dump station which state is "Auto" interfere. The Dump Station is not
removed automatically in this case.
• Feeder Viewer
In Feeder Interfere check, it is judged “interfere” when feeders and Dump station which state
is “Auto” interfere.
n
About setup direction for Dump station
Setup direction is not done to Dump Stations.
Setup Dump Station manually according to the setting of each Dump Station and optimizer result.
