2-21
2
Board Explorer
1. Use Database
Selectwhethertousethedatabaseandtheconditionfromthe“UseDatabase”drop-downlist.
Item Description
NotUse Select when not using the database.
FDX/MDX Select when using fdx/mdx database.
FDX/MDX (with saving FD/MS) Select when using both fdx/mdx and fd/md database.
FD/MD Select when using fd/md database.
2. Database folder
Shows the path to the registered database.
Youcanalsousethe[Browse]buttontocheckthelocationwherethedatabaseisstored.
3. Parts
Backs up and restores Parts database.
4. Mark
Backs up and restores Mark database.
5. Perform All Set
“All Set” is conducted when loading circuit board with editor or when optimization is performed.
6. Database matching condition
Selects whether a name or key is selected as a key term to match parts and database.
7. Synchronous operation setting
Select the use of database synchronization. “Database use” is only valid for “FDX/MDX (also saved on FD/MD)”.
8. Database by models
SelectifDatabasebymodelsistobeused/nottobeused.Formoreinformation,pleaserefertoP-ToolUser'sManual
"Chapter 6, Database".
9. Database by types
SelectifDatabasebytypesistobeused/nottobeused.Formoreinformation,pleaserefertoP-ToolUser'sManual
"Chapter 6, Database".
10. Database duplicate check
SelectifDatabaseduplicatecheckistobeused/nottobeused.Formoreinformation,pleaserefertoP-ToolUser's
Manual "Chapter 6, Database".
11. Additional parameter database management
Add parameters to be included in the management objects for database setting, setting from board. For more information,
pleaserefertoP-ToolUser'sManual"Chapter6,Database".
4.1.3 [Option] tab
Clicking the “Option” tab in the “Option Settings” window displays the option settings. Hardware key options
and available tools are listed and can be confirmed.
4.1.4 [Special Setting] tab
Clickingthe[SpecialSetting]tabshowsalistofspecialfunctionsavailablefortheFactoryTools.
2-22
2
Board Explorer
4.2 Inspection program conversion setting
Sets up a setting for converting board data to the Inspection program with the board explorer.
The converted Inspection program can be imported with the inspector and YViOS or YSiOS, the offline
software of the inspector.
4.2.1 Conversion of Inspection program
1
Select a line folder with the tree view of the Board explorer.
Selection of line folder
642A1-S0-00
2
Select a board data to be converted with the list view. (Multiple data can be
selected)
Selection of board data
642A2-S0-00
2-23
2
Board Explorer
3

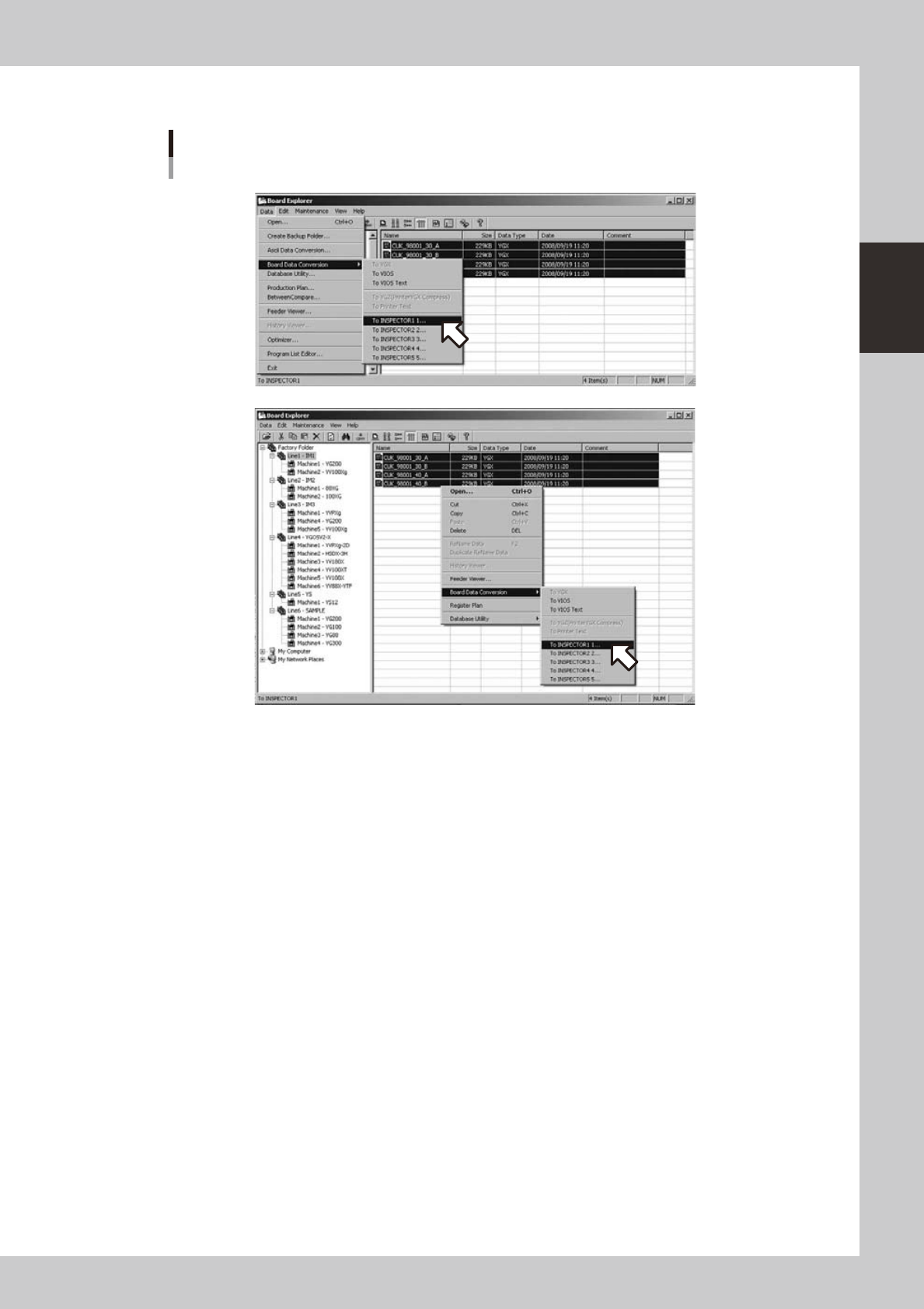

Select an inspector to convert with the "data" menu or right-click menu.
Selection of inspector to convert
• Selection from right-click
• Selection from data menu
642A3-S0-00
This menu is effective when a line folder is selected with the tree view and when a board data for a
mounter is selected with the list view at the same time.
When"UseInspectionprogramconversion"onthe"Inspectionprogramconversionsetting"screenis
turnedoff,itwillnotbeshownonthemenu.(Referto"4.2.4Howtosetup"below).
The menu shows the inspector name selected on the "Inspection program conversion setting" screen
(referto4.2.4,"Howtosetup"below).Uptofiveinspectornamescanbesetup.Whenanameofan
inspector is blank, it will not be indicated.
