2-23
2
Board Explorer
3
Select an inspector to convert with the "data" menu or right-click menu.
Selection of inspector to convert
• Selection from right-click
• Selection from data menu
642A3-S0-00
This menu is effective when a line folder is selected with the tree view and when a board data for a
mounter is selected with the list view at the same time.
When"UseInspectionprogramconversion"onthe"Inspectionprogramconversionsetting"screenis
turnedoff,itwillnotbeshownonthemenu.(Referto"4.2.4Howtosetup"below).
The menu shows the inspector name selected on the "Inspection program conversion setting" screen
(referto4.2.4,"Howtosetup"below).Uptofiveinspectornamescanbesetup.Whenanameofan
inspector is blank, it will not be indicated.
2-24
2
Board Explorer
4
The "board data conversion" display will be shown.
Board data of a solder paste printer cannot be converted and it will not be shown in the list.
Board data conversion display
642A4-S0-00
Double-click the Save Board Name or click the [Change Save Name] button when you want to rename
the board data after conversion. The Board Name can contain up to 20 characters.
Dialog box for renaming the board data
642A5-S0-00
Double-click the destination folder or click the [Change Save Place] button when you want to change
the destination folder.
Screen for changing the destination folder
642A6-S0-00
2-25
2
Board Explorer
5

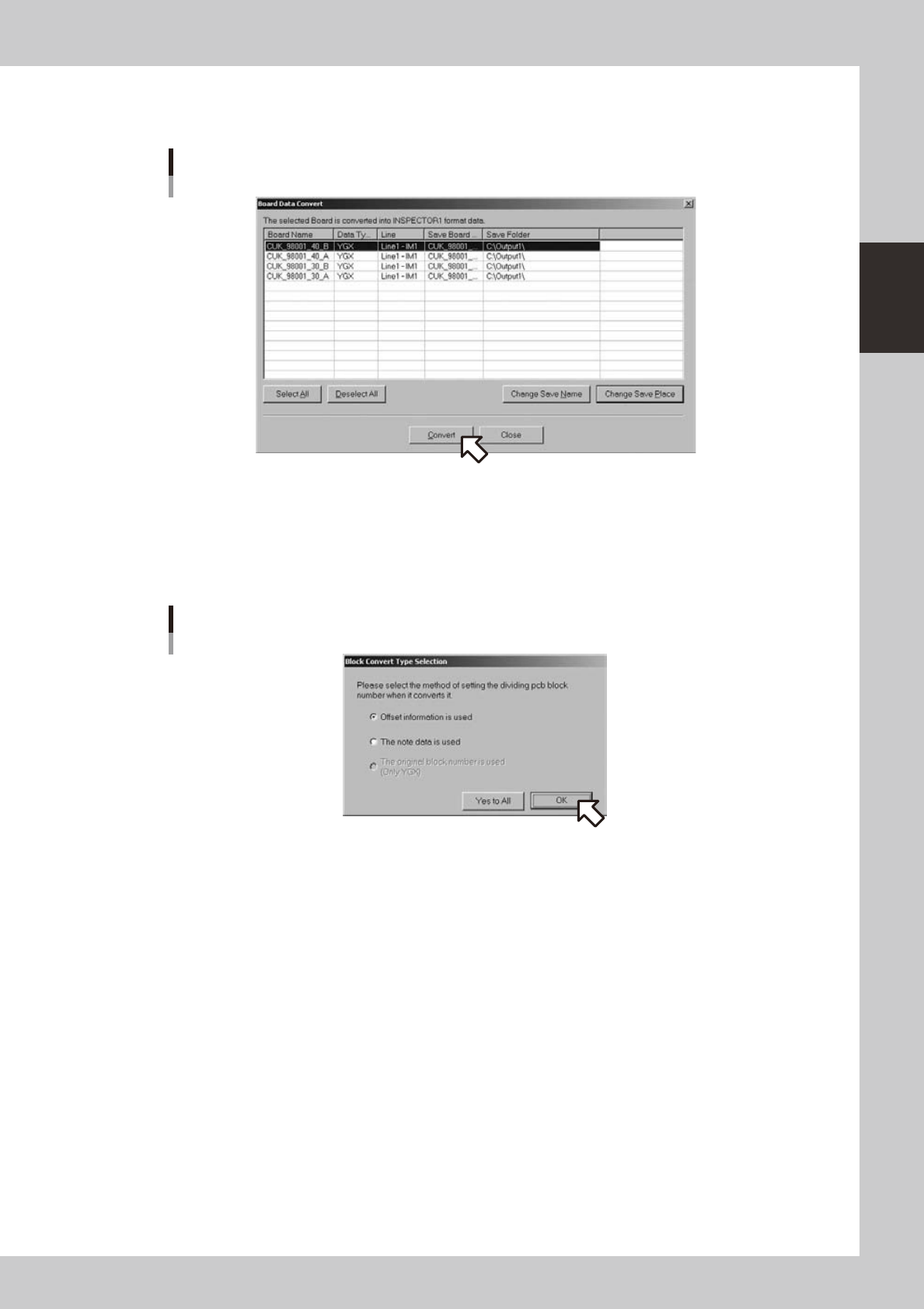

Select the board data to be converted and click the [Convert] button. (Multiple
data can be selected)
[Convert] button
642A7-S0-00
Click the [Select All] button when you want to select all the boards in the list.
Click the [Deselect] button when you want to cancel the selection of all the boards in the list.
6
Screen for selecting setting method of division board block number will appear.
Select the setting method of division board block number and click the [OK] button.
Screen for selecting setting method of division board block number
642A8-S0-00
This screen is indicated for each board.
When you click the [All Yes] button, subsequent board data will be converted in the same setting. No
message will be indicated as long as the data format of the subsequent boards is the same. The
message will be indicated again on different data type such as VIOS or YGX.
